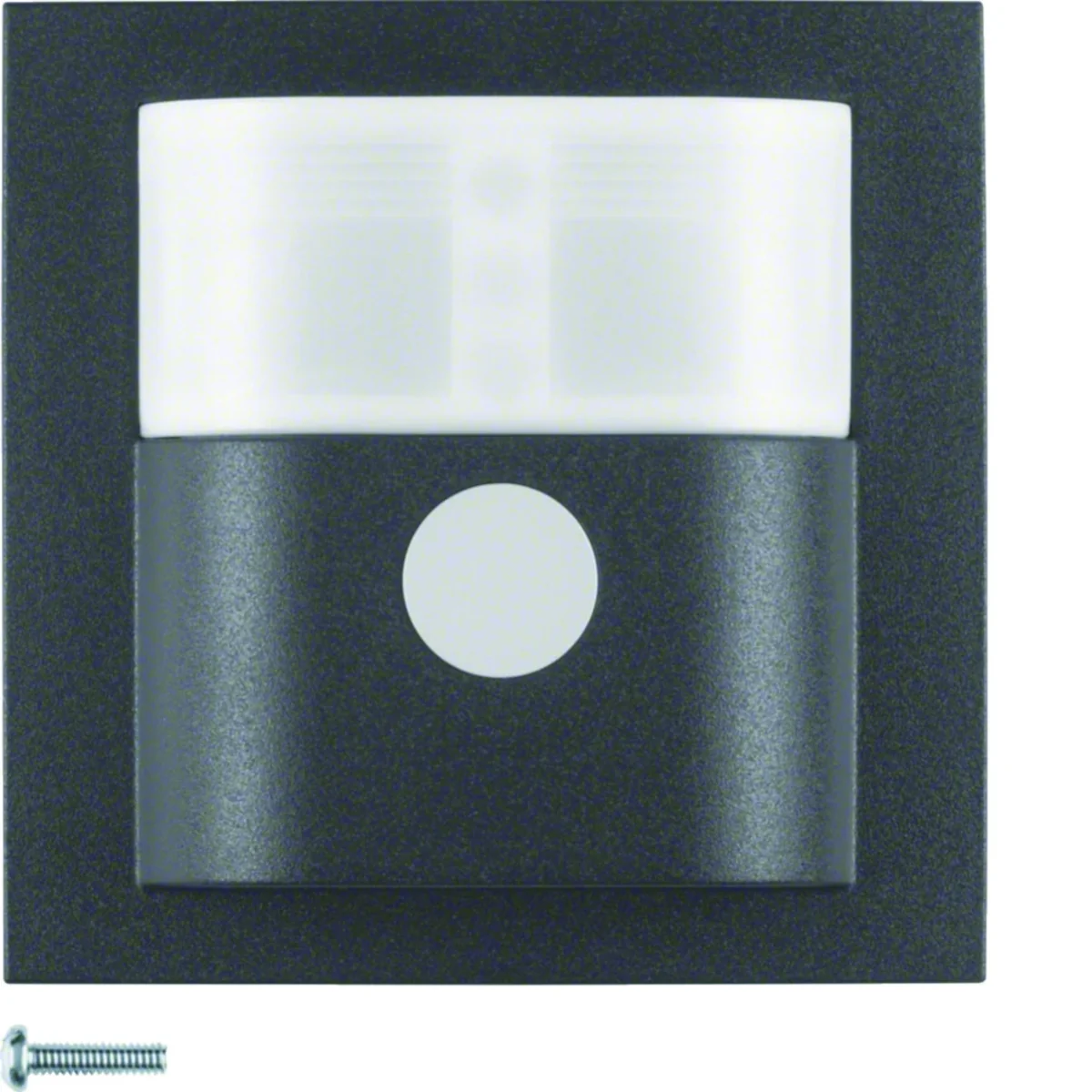

S.1/B.3/B.7 Motion sensor cap 1.1m anthracite matt 85341185

local index:
MAP373BERK
Catalog No:
85341185
EAN code:
4011334373544
Manufacturer: BERKER
Detection angle [°]: 45-90
Color: Graphite
Shape: Square
Price:
97,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Motion sensor cap from the Berker B.Kwadrat/B.3/B.7 series. To article numbers < /li>

  • the function of programming the activation level of illumination activated by means of a button
  • with a button lock
  • the "party" function activated for 2 hours
  • with a function presence simulation memory
  • Controls and indicators:

    • with on/off/automatic button

    LED control:

    • with red/green/orange operation and status LEDs
    • socket compatibility LED indicator and mechanism

    Technical data

    • Detection angle [°]
      45-90
    • Shape
      Square
    • Installation
      Flush-mounted
    • Type
      For the motion sensor
    • Level of security
      IP20
    • Surface finish
      matte
    • Number of detection planes
      3
    • Relative humidity (no condensation) [%]
      0 - 65 (non-condensing)
    • Straight range [m]
      ≈ 12
    • PKWIU
      27.40.30.0
    • Color
      Graphite
    • Material
      Plastic
    • Detection field
      12x16
    • Family
      B.SQUARE
    • Operating temperature range [°C]
      from -5 to 45
    • Accurate color
      Anthracite
    • Operation brightness level [%]
      10 - 100
    • Lateral range [m]
      ≈ 8
    • For modular equipment
      Not applicable

    Other technical data

    • Model
      Movement sensor
    • Constant light control
      No
    • Networkable
      Yes
    • Creep-under protection
      No
    • Max. reach sideways
      8 m
    • Diameter reach on floor
      0 m
    • Response value luminosity adjustable
      Yes
    • Dim function with dimmer basic element
      Yes
    • Staircase light controller
      No
    • Material quality
      Thermoplastic
    • Suitable for degree of protection (IP)
      IP20
    • Min. switch-on time
      180 s
    • Switch-off delay self-learning
      No
    • Colour
      Anthracite
    • Mounting method
      Flush-mounted
    • HVAC-control
      Yes
    • Suitable for wireless transmission
      No
    • Mounting height
      1.1 m
    • Max. reach frontally
      12 m
    • Response value sensitivity adjustable
      Yes
    • Teach-function for response value luminosity
      Yes
    • Animal zone
      No
    • Material
      Plastic
    • Halogen free
      Yes
    • Operation mode switch
      Yes
    • Max. duty cycle
      3 min
    • Detection angle horizontal
      45 ... 90 °

    Bulk packaging

    A kind of package Karton Pakiet Paleta
    Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
    Weight (kg) 0,035 0,105 4,105 154,360
    Width (m) 0,056 0,085 0,295 0,800
    Length (m) 0,045 0,075 0,230 1,050
    Depth (m) 0,056 0,090 0,395 1,200
