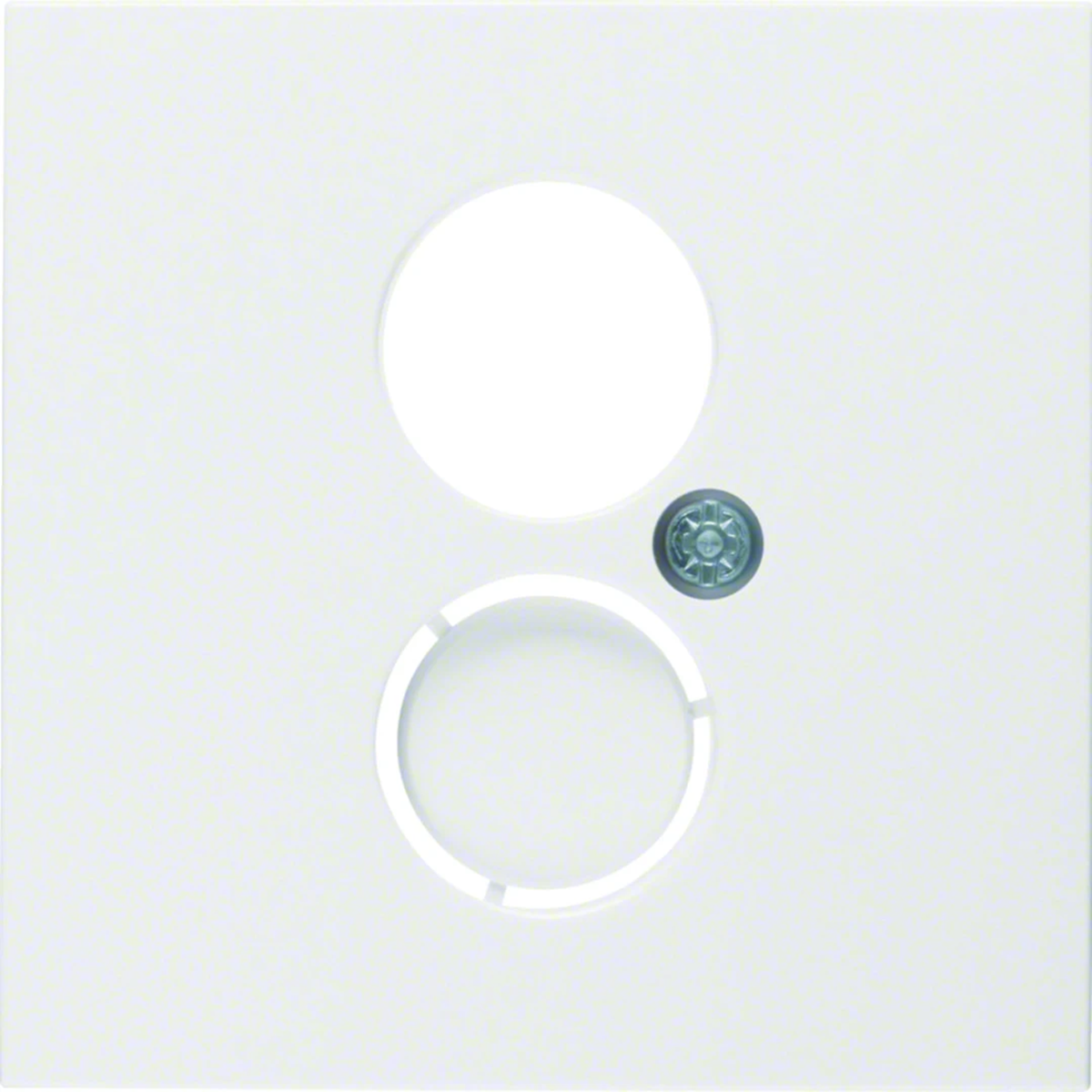

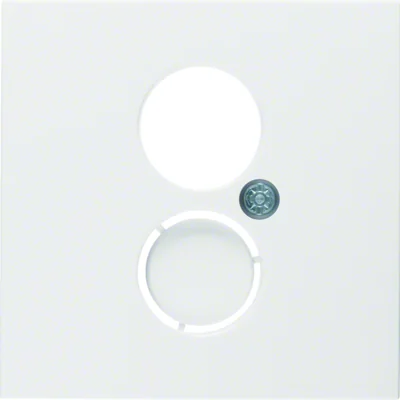

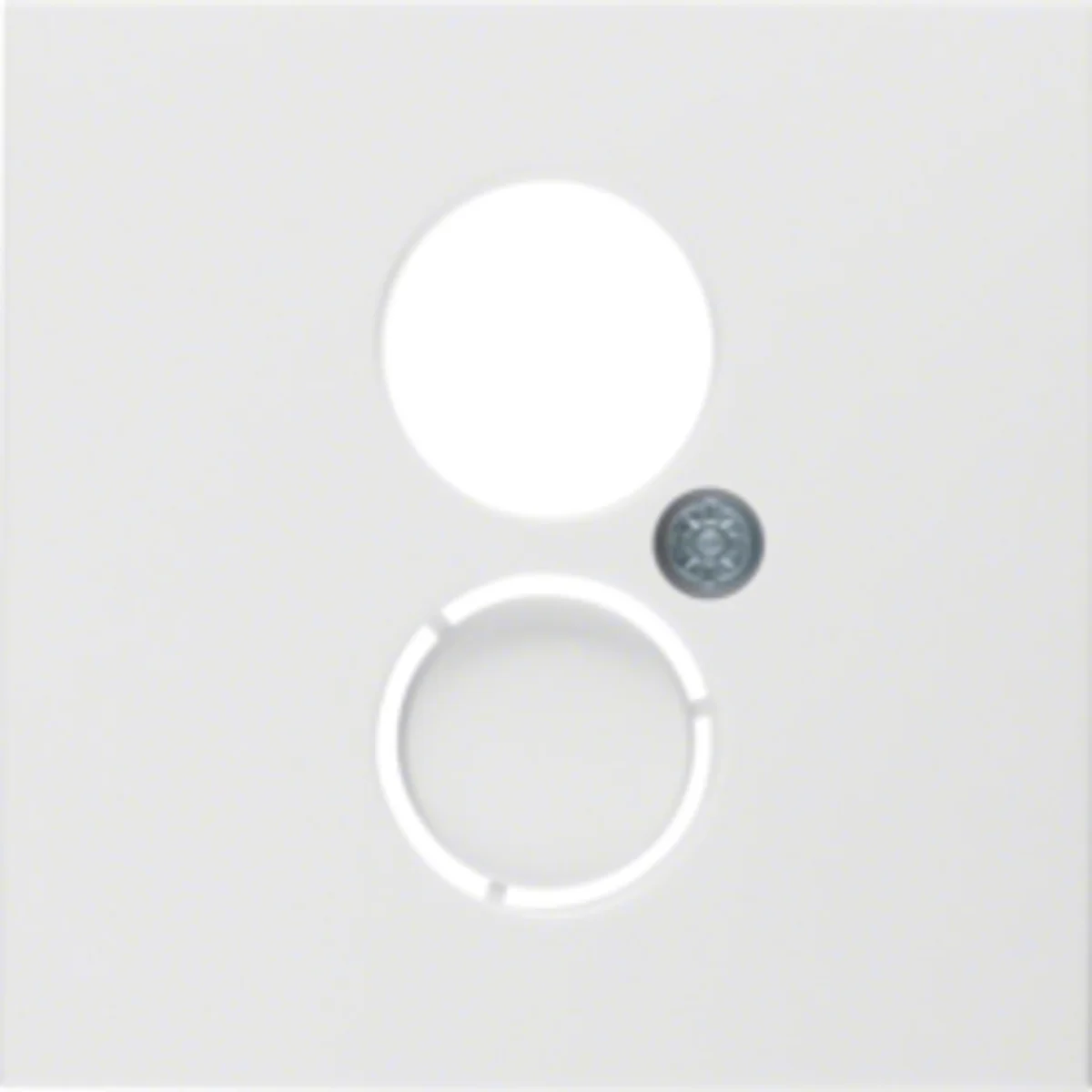

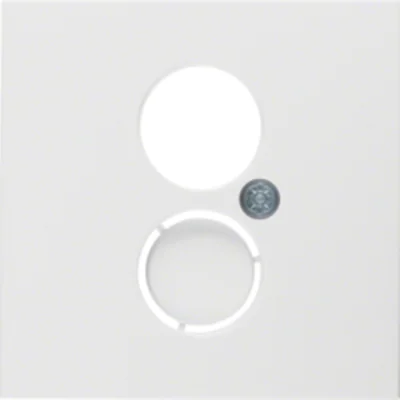

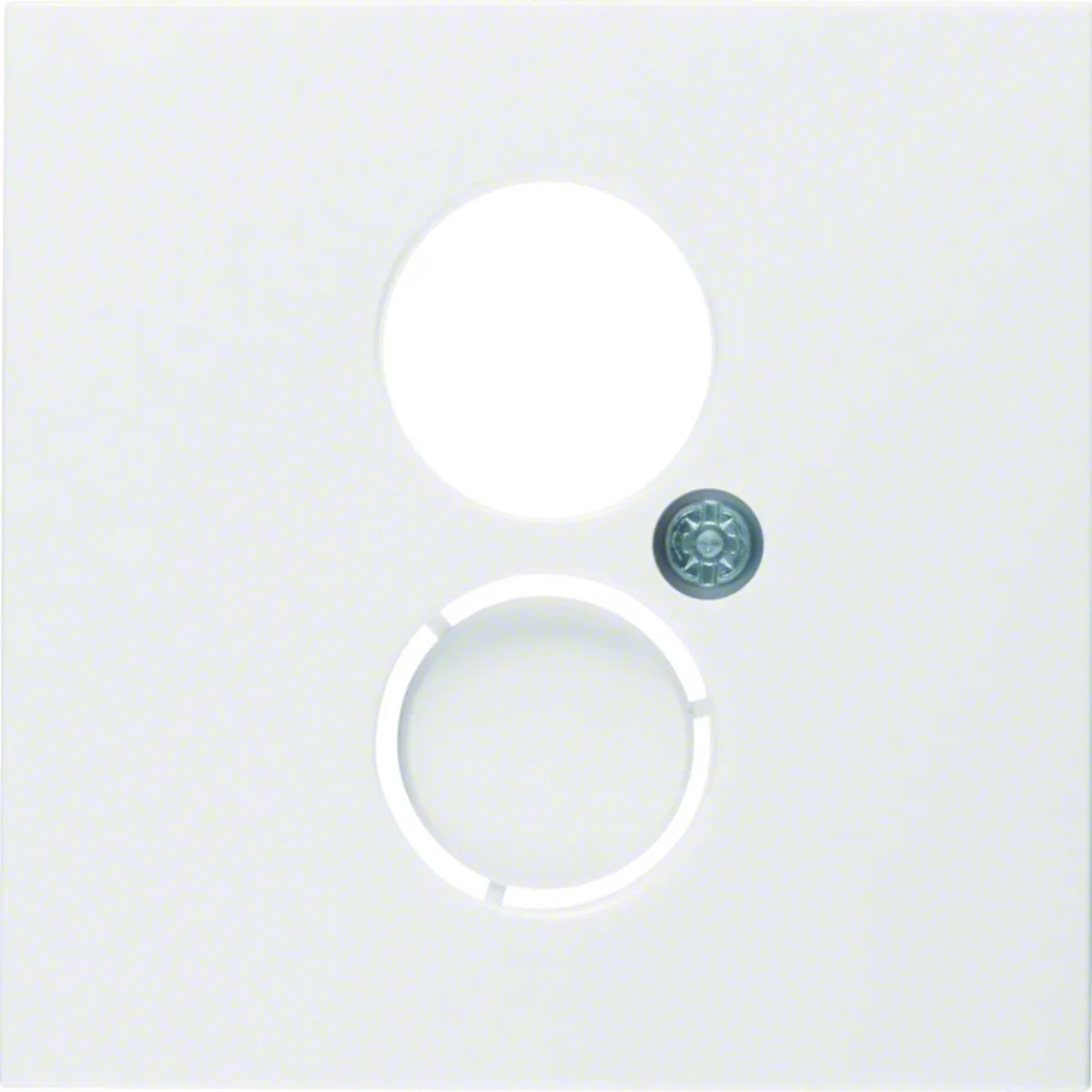

S.1/B.3/B.7 Front plate for loudspeaker socket and miniature connections, white 11961909
local index:
MAP113BERK
Catalog No:
11961909
EAN code:
4011334221272
Price:
5,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Frontplate for loudspeaker socket and with carrier plate for miniature connectors, series Berker S.1/B.3/B.7 with the following features:
- Surface color: snow-white matt,
- Main design line: Berker B.Kwadrat/B.3/B.7, < li> 1 hole with the possibility of breaking out the plug,
- Support plate / support ring: for plasterboard walls,
- Without inscription field,
- Mounting type: KNX - Berker R.1/R.3/Serie 1930/R.classic,
- For product no.: 450502, 450501.
Technical data
-
ColorWhite
-
MaterialPlastic
-
FamilyB.SQUARE
-
Surface finishmatte
-
For modular equipmentNot applicable
-
ShapeSquare
-
TypeTo the speaker jack
-
Level of securityIP20
-
Accurate colorSnow white
-
PKWIU27.12.40.0
Other technical data
-
Assembly arrangementCentral cover plate
-
Support ringNo
-
With hinged lidNo
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourWhite
-
TransparentNo
-
With buses/couplingsNo
-
Luster terminalNo
-
Device width55 mm
-
Device depth16 mm
-
UtilizationLoudspeaker connection
-
With dust coverNo
-
Imprintable labelWithout indication field
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)9010
-
Type of fasteningMounting with screw
-
With strain reliefNo
-
Suitable for degree of protection (IP)IP20
-
Device height55 mm
-
Min. depth of built-in installation box0 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 300 pcs. | 9600 pcs. |
| Weight (kg) | 0,009 | 0,113 | 3,802 | 141,652 |
| Width (m) | 0,056 | 0,080 | 0,300 | 0,800 |
| Length (m) | 0,016 | 0,066 | 0,225 | 1,050 |
| Depth (m) | 0,056 | 0,125 | 0,400 | 1,200 |
