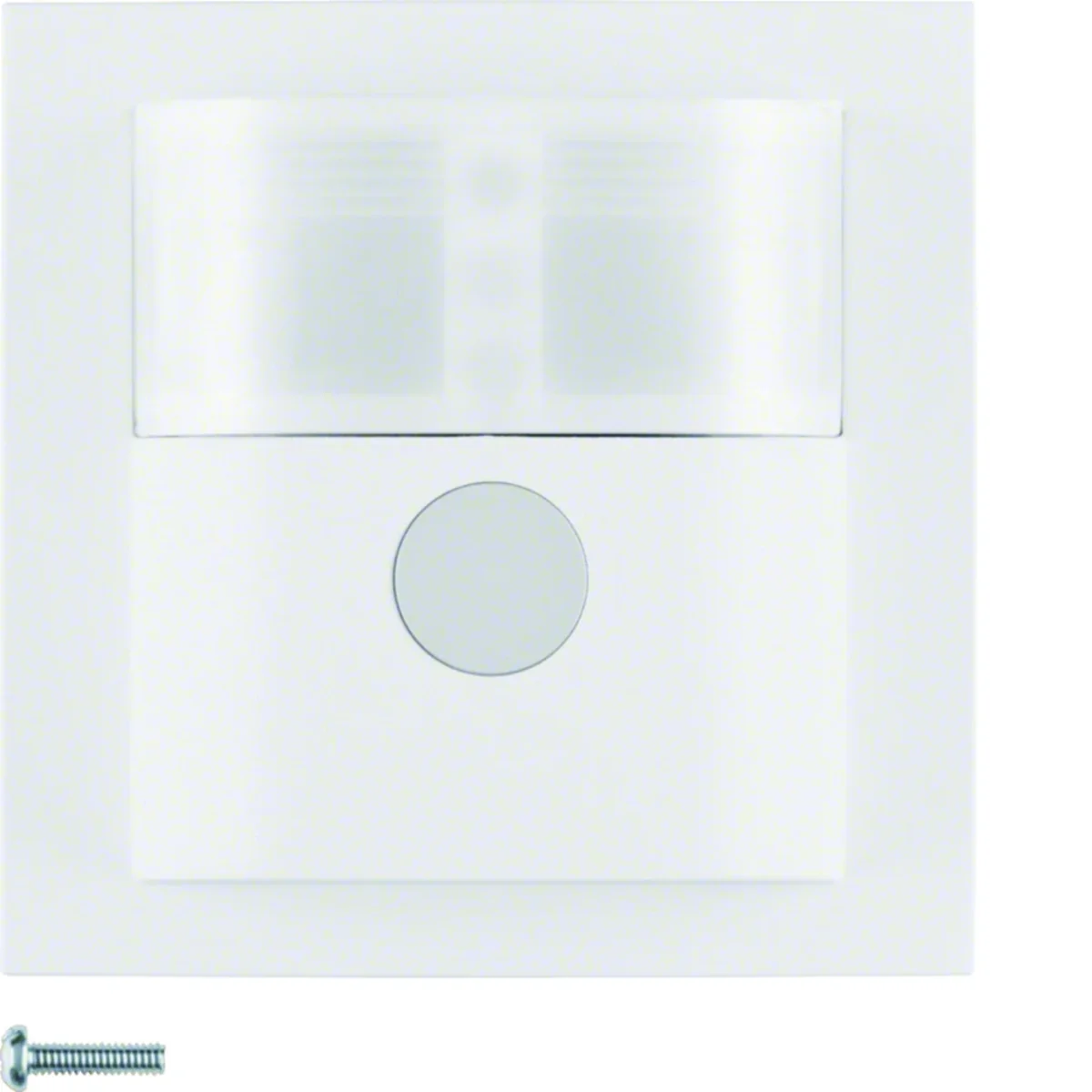

S.1/B.3/B.7 Comfort IR motion sensor cap 2.2m white matt 85342288

local index:
MAP414BERK
Catalog number:
85342288
EAN code:
4011334374251
Manufacturer: BERKER
Detection angle [°]: 45-90
Color: White
Shape: Square
Price:
651,33 zł
gross / pcs.
(including VAT 23%)
up to 10 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

IR attachment for motion sensor comfort series Berker B.Kwadrat/B.3/B.7. Nominal mounting height is 2.2 m. Catalog number product is 85342288.

Features:

  • microprocessor control
  • pulse operation with idle time (e.g. for stair lighting installations/with impulse switching)
  • function of programming the lighting intensity level activated by the button
  • with button lock
  • function “party” activated for 2 hours
  • with memory function to simulate presence

Controls and indicators:

  • with on/off/automatic button

LED control:

  • with red/green operation and status LEDs /orange
  • cap and mechanism compatibility LED indicator

Technical data

  • Detection angle [°]
    45-90
  • Shape
    Square
  • Installation
    Flush-mounted
  • Type
    For the motion sensor
  • Level of security
    IP20
  • Surface finish
    matte
  • Number of detection planes
    3
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)
  • Straight range [m]
    ≈ 8
  • For modular equipment
    Not applicable
  • Color
    White
  • Material
    Plastic
  • Detection field
    8x12
  • Family
    B.SQUARE
  • Operating temperature range [°C]
    from -5 to 45
  • Accurate color
    Snow white
  • Operation brightness level [%]
    10 - 100
  • Lateral range [m]
    ≈ 6
  • Delay time, adjustable
    ≈ 10 s - 30 min
  • PKWIU
    27.40.30.0

Other technical data

  • Mounting method
    Flush-mounted
  • HVAC-control
    Yes
  • Suitable for wireless transmission
    Yes
  • Max. reach sideways
    6 m
  • Response value sensitivity adjustable
    Yes
  • Teach-function for response value luminosity
    No
  • Animal zone
    Yes
  • Material
    Plastic
  • Halogen free
    Yes
  • Operation mode switch
    Yes
  • Max. duty cycle
    0.5 min
  • Colour
    White
  • Constant light control
    No
  • Networkable
    Yes
  • Creep-under protection
    No
  • Max. reach frontally
    8 m
  • Response value luminosity adjustable
    No
  • Dim function with dimmer basic element
    Yes
  • Staircase light controller
    No
  • Material quality
    Thermoplastic
  • Suitable for degree of protection (IP)
    IP20
  • Min. switch-on time
    10 s
  • Switch-off delay self-learning
    No
  • RAL-number (similar)
    9010

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,095 3,860 148,520
Width (m) 0,090 0,300 0,800
Length (m) 0,070 0,220 1,050
Depth (m) 0,090 0,400 1,200
