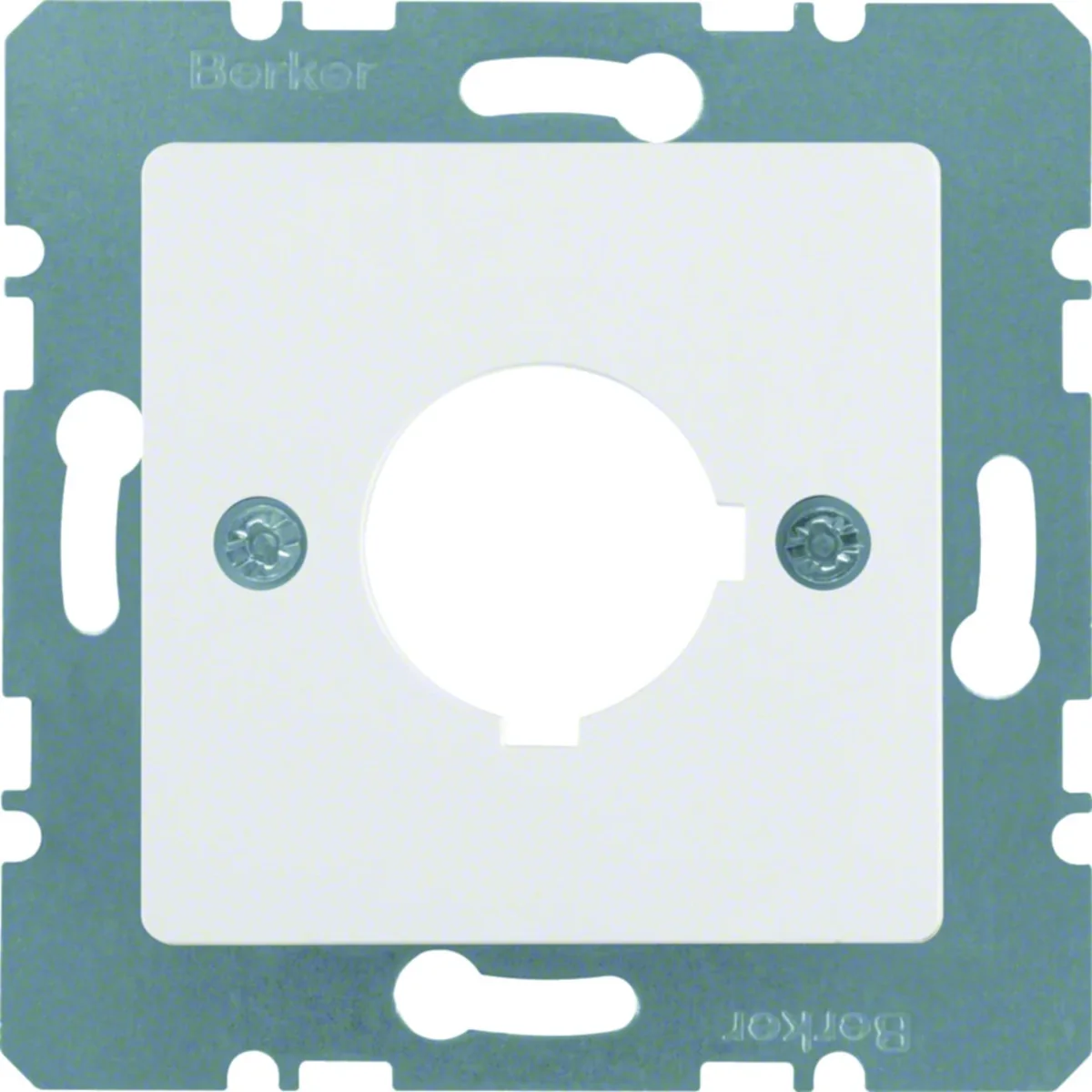

S.1/B.3/B.7 Central plate for answering device Ø 22.5 mm snow-white 143209

local index:
MAP189BERK
Catalog No:
143209
EAN code:
4011334272311
Manufacturer: BERKER
Halogen free: Yes
Color: White
Shape: Square
Price:
8,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Central plate for answering device, series Berker S.1/B.3/B.7.

  • with output with a diameter of Ø 22.5 mm

Technical data

  • Halogen free
    Yes
  • Shape
    Square
  • Family
    S.1 B.3 B.7
  • Surface finish
    Shiny
  • PKWIU
    27.12.40.0
  • Color
    White
  • Material
    Plastic
  • Level of security
    IP20
  • For modular equipment
    Not applicable

Other technical data

  • Assembly arrangement
    Basic element with adapter plate
  • Support ring
    Yes
  • With hinged lid
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Other
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • With buses/couplings
    No
  • With strain relief
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    0 mm
  • Utilization
    Other
  • With dust cover
    No
  • Imprintable label
    Imprintable label snap-in in intermediate ring
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9010
  • Type of fastening
    Mounting with screw
  • Suitable for number of connectors
    1
  • Luster terminal
    No
  • Device width
    71 mm
  • Device depth
    10 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 220 pcs. 7040 pcs.
Weight (kg) 0,030 0,329 7,674 265,584
Width (m) 0,071 0,098 0,300 0,800
Length (m) 0,010 0,089 0,225 1,050
Depth (m) 0,071 0,105 0,400 1,200
