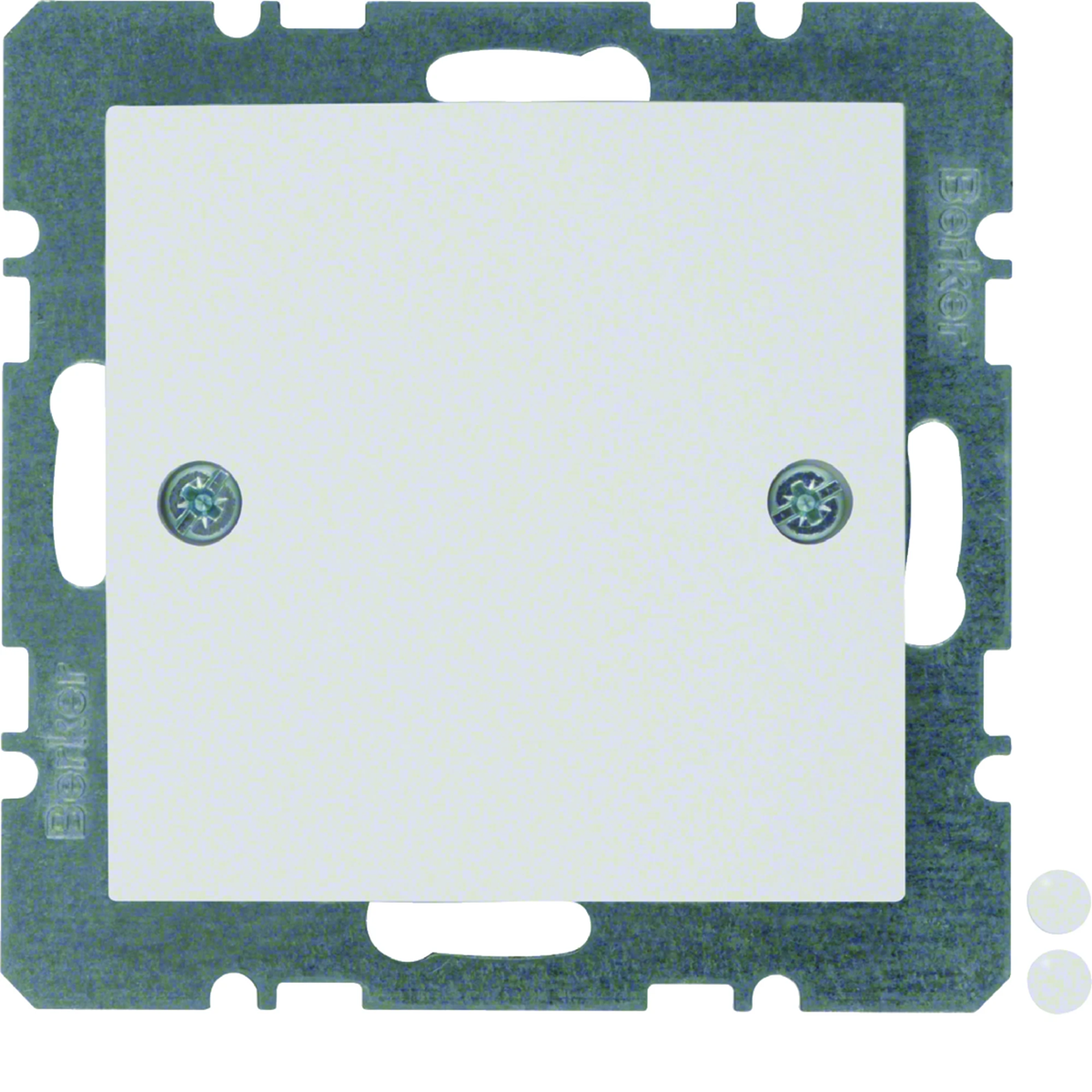

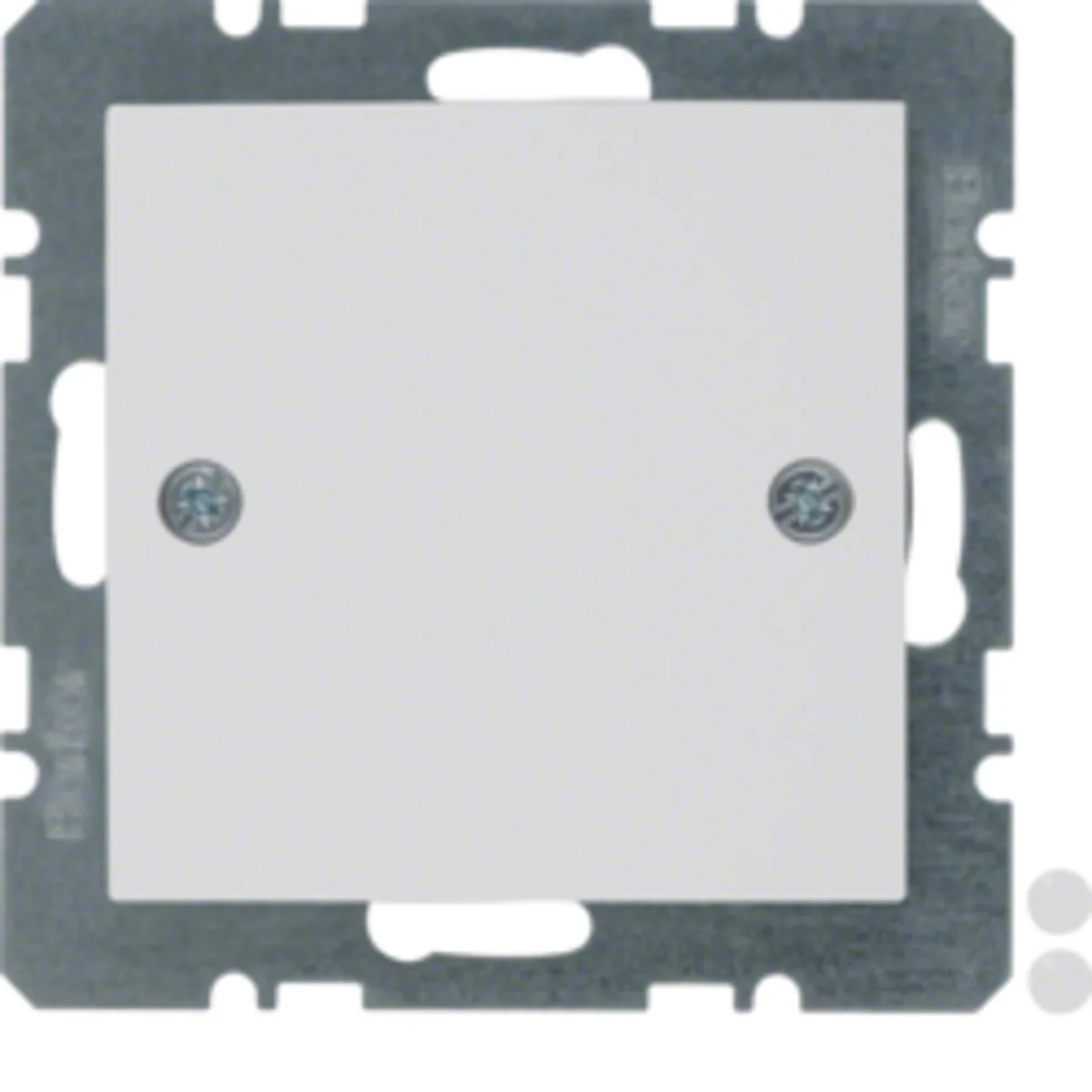

S.1/B.3/B.7 Blanking plate with front plate and screw fixing, white 10091919
local index:
MAZ056BERK
Catalog No:
10091919
EAN code:
4011334249276
Price:
11,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
End cap with S.1/B.3/B.7 series face plate with the following features:
- Carrier plate / carrier ring: on the carrier plate with a large cut-out,
- Cover: with a screw-on cover,
- Mounting type: for fixing with screws,
- Surface colour: snow-white matt,
- Cut-out: for individual cut-outs or holes for installing special solutions,
- Relay: with mounting space, e.g. for a relay.
Technical data
-
ColorWhite
-
FamilyS.1 B.3 B.7
-
PKWIU27.12.40.0
-
Installationhelical
-
Accurate colorSnow white
Other technical data
-
Assembly arrangementBasic element with central cover plate
-
Support ringYes
-
With hinged lidNo
-
Mounting methodFlush-mounted
-
Material qualityOther
-
Surface protectionUntreated
-
ColourWhite
-
TransparentNo
-
With buses/couplingsNo
-
Luster terminalNo
-
Device width71 mm
-
Device depth11.6 mm
-
UtilizationBlind cap
-
With dust coverNo
-
Imprintable labelWithout indication field
-
MaterialOther
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)9010
-
Type of fasteningMounting with screw
-
With strain reliefNo
-
Suitable for degree of protection (IP)IP20
-
Device height71 mm
-
Min. depth of built-in installation box0 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 20 pcs. | 100 pcs. | 3200 pcs. |
| Weight (kg) | 0,030 | 0,690 | 3,895 | 144,649 |
| Width (m) | 0,071 | 0,160 | 0,300 | 0,800 |
| Length (m) | 0,012 | 0,075 | 0,225 | 1,050 |
| Depth (m) | 0,071 | 0,225 | 0,400 | 1,200 |
