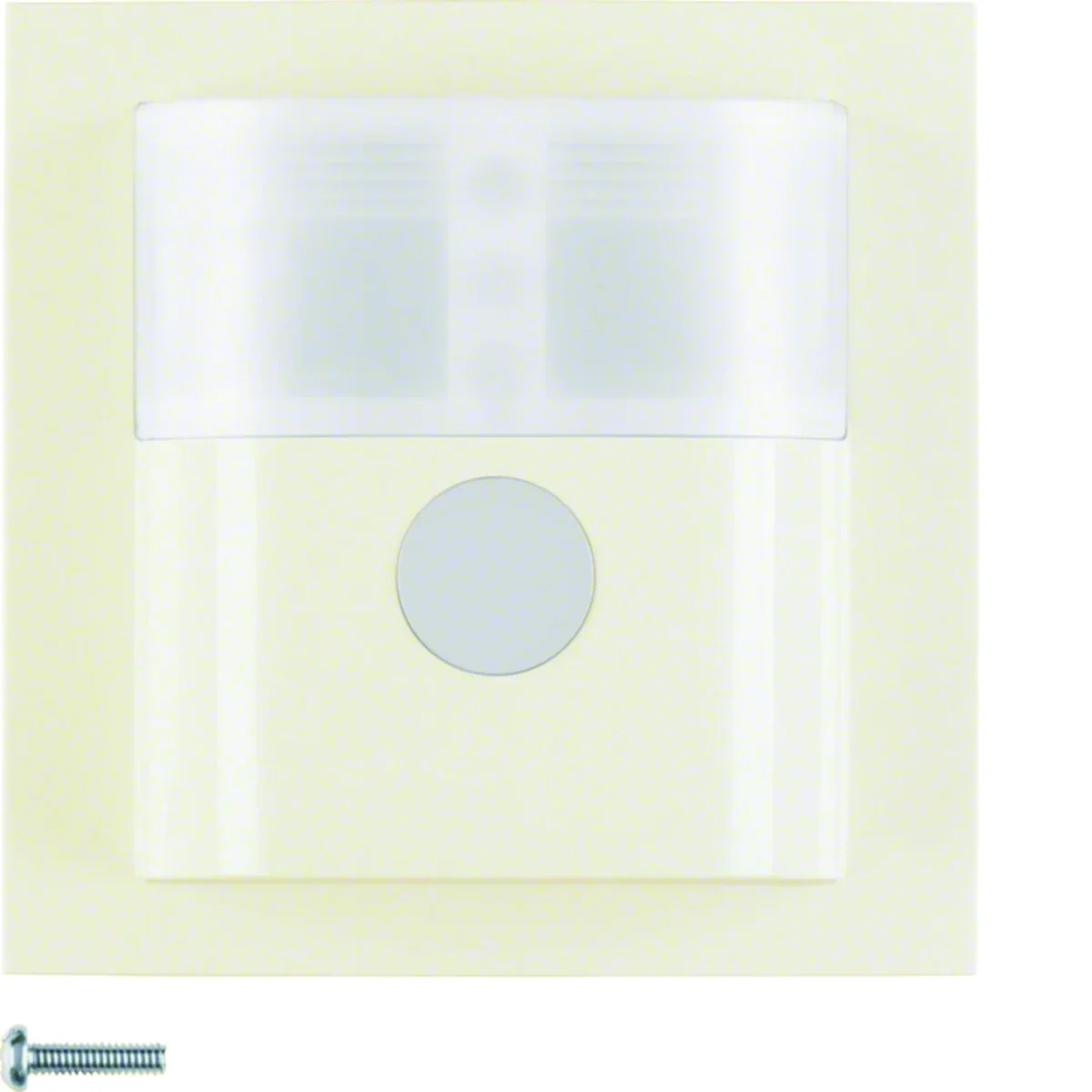

Name: S.1 Comfort IR motion sensor cap 2.2m creamy gloss
Brand: BERKER
SKU: MAP411BERK
Price: 142.30 PLN

IR attachment for motion sensor comfort from the Berker B.Kwadrat/S.1 series. To the art. numbers 8512 12 00, 8512 11 00, 8542 11 00, 8542 12 00, 8532 01 00, EE806. Nominal mounting height is 2.2 m. Product part number is 85342282.

Features:

microprocessor control
pulse operation with idle time (e.g. for stair lighting installations/with pulse switching)
the function of programming the activation level of illumination activated by means of a button
with a button lock
the “party” activated for 2 hours
with memory function to simulate presence

Controls and indicators:

with on/off/automatic button

LED control:

with red/green operation and status LEDs /orange
cap and mechanism compatibility LED indicator

Detection angle [°]

45-90
Shape

Square
Installation

Flush-mounted
Type

For the motion sensor
Level of security

IP20
Surface finish

Shiny
Number of detection planes

3
Relative humidity (no condensation) [%]

0 - 65 (non-condensing)
Straight range [m]

≈ 8
For modular equipment

Not applicable

Color

Beige
Material

Plastic
Detection field

8x12
Family

B.SQUARE
Operating temperature range [°C]

from -5 to 45
Accurate color

Creamy
Operation brightness level [%]

10 - 100
Lateral range [m]

≈ 6
Delay time, adjustable

≈ 10 s - 30 min
PKWIU

27.40.30.0

Other technical data

Model

Movement sensor
Constant light control

No
Networkable

Yes
Creep-under protection

Yes
Max. reach sideways

6 m
Diameter reach on floor

0 m
Response value luminosity adjustable

Yes
Dim function with dimmer basic element

Yes
Staircase light controller

Yes
Material quality

Thermoplastic
Suitable for degree of protection (IP)

IP20
Min. switch-on time

10 s
Switch-off delay self-learning

No
Colour

White

Mounting method

Flush-mounted
HVAC-control

Yes
Suitable for wireless transmission

Yes
Mounting height

2.2 m
Max. reach frontally

8 m
Response value sensitivity adjustable

Yes
Teach-function for response value luminosity

Yes
Animal zone

No
Material

Plastic
Halogen free

Yes
Operation mode switch

Yes
Max. duty cycle

30 min
Detection angle horizontal

45 ... 90 °
RAL-number (similar)

1013

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	36 pcs.	1152 pcs.
Weight (kg)	0,067	0,092	3,577	134,454
Width (m)	0,056	0,084	0,300	0,800
Length (m)	0,042	0,070	0,225	1,050
Depth (m)	0,056	0,085	0,400	1,200
