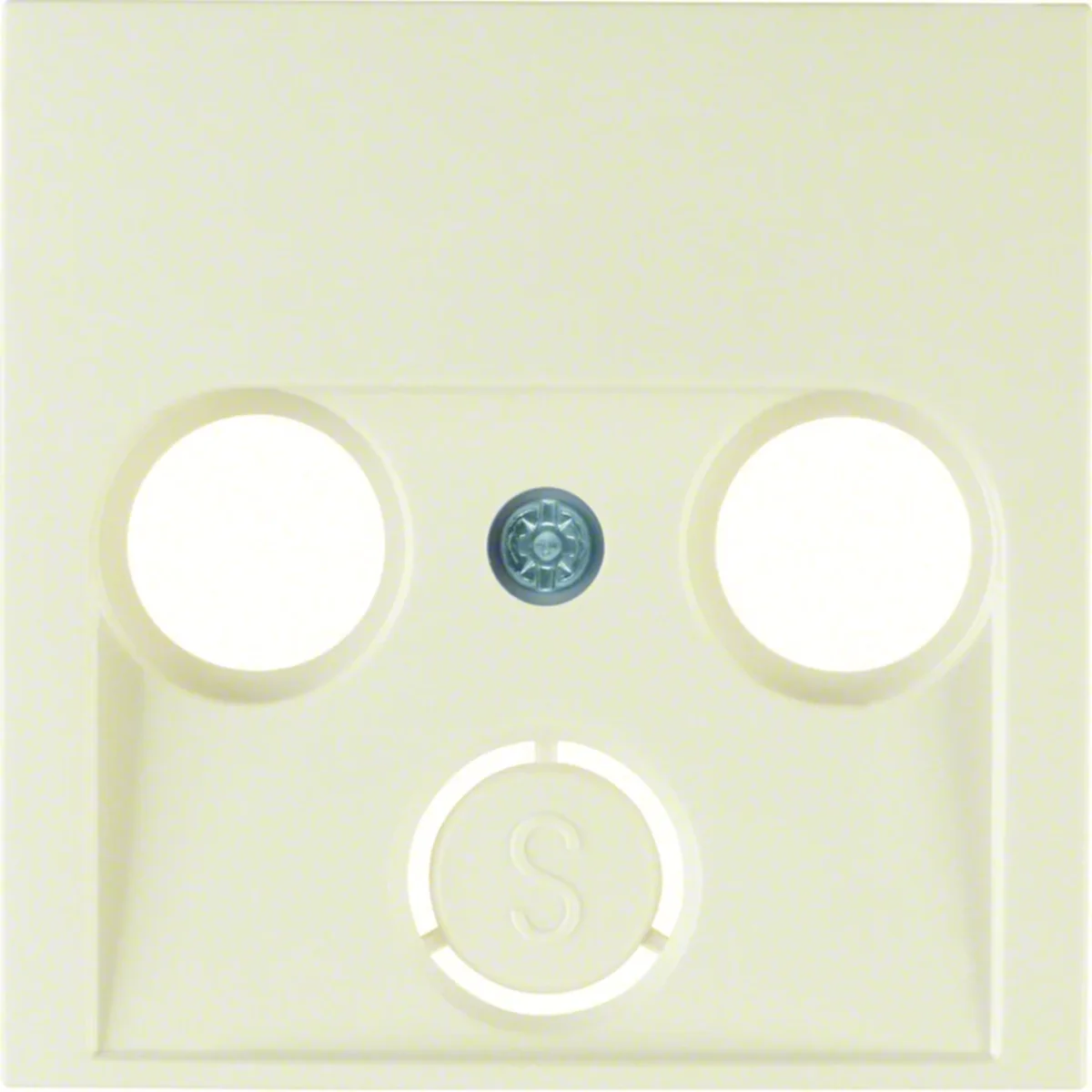

S.1 Central element for 2- and 3-output antenna socket, cream gloss 12038982
local index:
MAP139BERK
Catalog No:
12038982
EAN code:
4011334279174
Price:
4,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Frontplatefor 2- and 3-output antenna socket, series B.Square/B.3/B.7. The product catalog number is 12038982.
- With the possibility of breaking out the SAT input cover.
- For screw connection.
- Without support ring.
- 53 4550 11, 53 4551 11, 53 4551 21 53 4551 31, 53 4552 11, 534553 11, 534553 21
Technical data
-
ColorBeige
-
MaterialPlastic
-
FamilyB.SQUARE
-
Surface finishShiny
-
For modular equipmentNot applicable
-
ShapeSquare
-
TypeTo the antenna socket
-
Level of securityIP20
-
Accurate colorCreamy
-
PKWIU27.12.40.0
Other technical data
-
Assembly arrangementCentral cover plate
-
Support ringNo
-
With hinged lidNo
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourWhite
-
TransparentNo
-
With buses/couplingsNo
-
With strain reliefNo
-
Suitable for degree of protection (IP)IP20
-
Device height55 mm
-
Min. depth of built-in installation box0 mm
-
UtilizationOther
-
With dust coverNo
-
Imprintable labelWithout indication field
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)1013
-
Type of fasteningMounting with screw
-
Suitable for number of connectors3
-
Luster terminalNo
-
Device width55 mm
-
Device depth9 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 300 pcs. | 9600 pcs. |
| Weight (kg) | 0,012 | 0,155 | 5,065 | 185,080 |
| Width (m) | 0,056 | 0,085 | 0,300 | 0,800 |
| Length (m) | 0,010 | 0,070 | 0,225 | 1,050 |
| Depth (m) | 0,056 | 0,125 | 0,400 | 1,200 |
