Manufacturer: BERKER
Number of sockets: 3
Wave impedance [Ω]: 75
Shape: Square
Price:
32,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 5 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

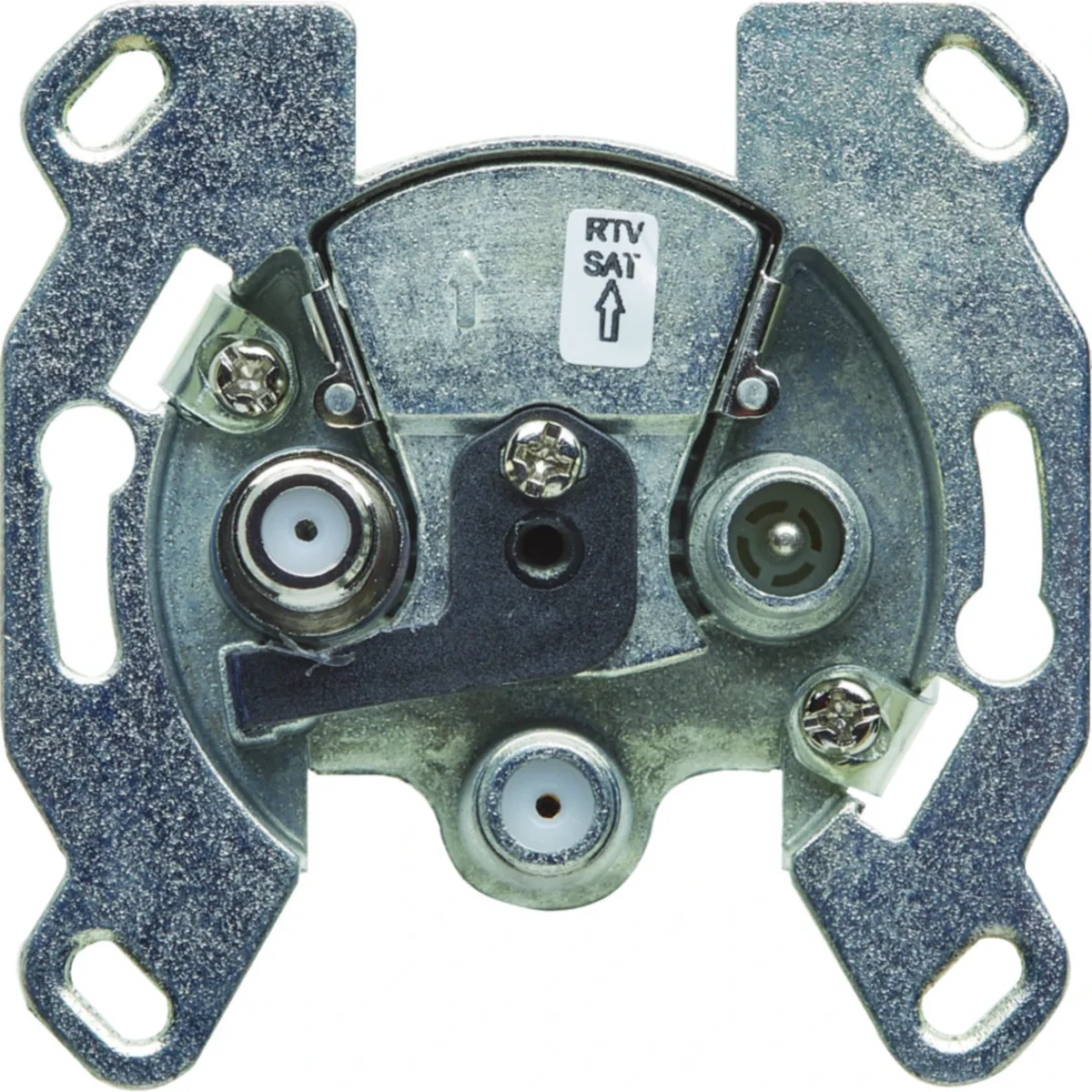

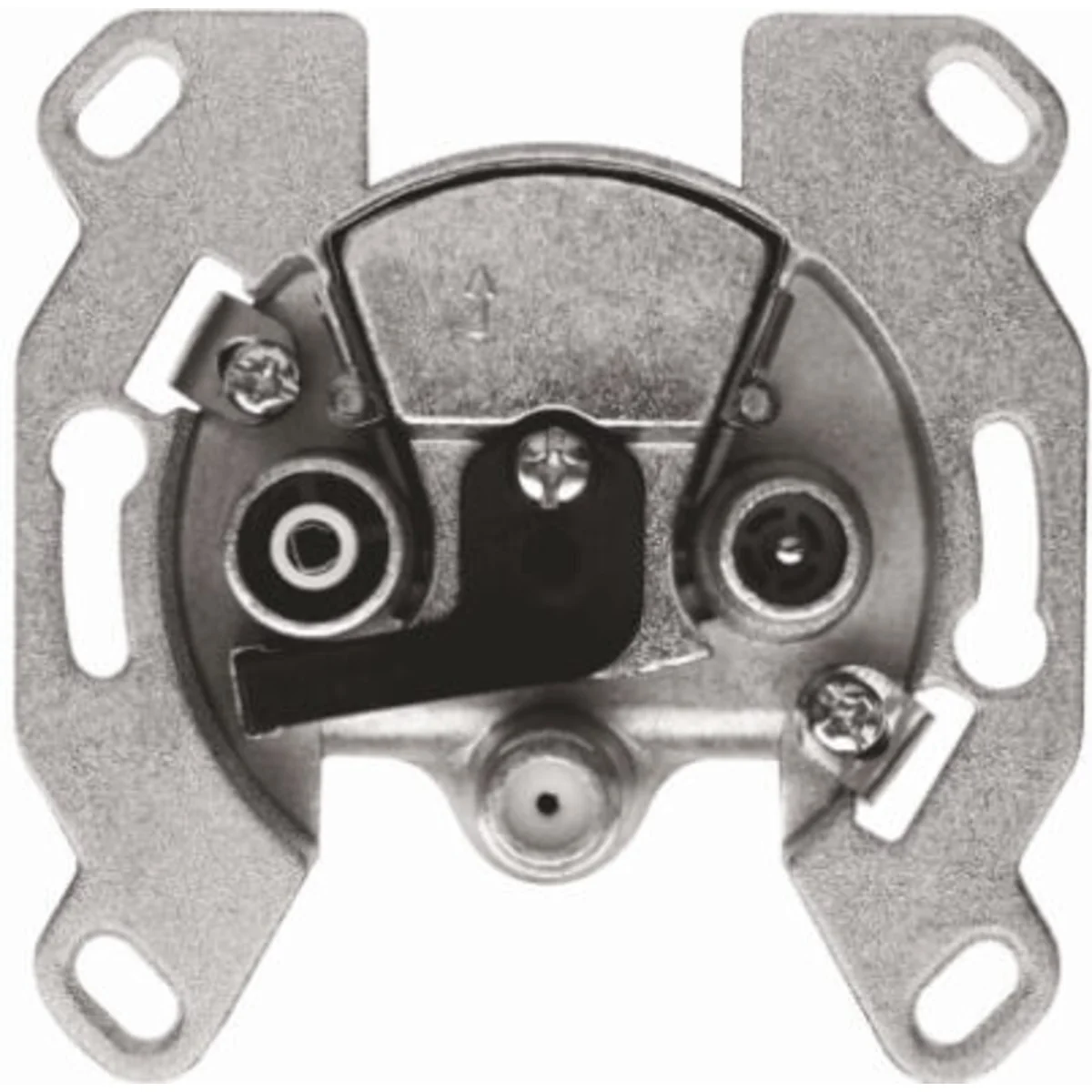

Mechanism of the antenna socket from the one.platform series, from the manufacturer Berker. The product catalog number is 53455331.



FEATURES

  • RTV-SAT-SAT.
  • Final.
  • For terrestrial reception.
  • For analog and digital transmission.
  • For order number.  1064 .., 1201 .., 1202 .., 1203 .., 53 1203 ..
  • For individual DVB-T digital installations.
  • For star structure.
  • 2 independent SAT inputs and outputs.
  • For decoders with two SAT inputs, e.g. with recording function.

Technical data

  • Number of sockets
    3
  • Shape
    Square
  • Type
    Antenna
  • Level of security
    IP20
  • Version
    Final
  • Terminal type
    Threaded
  • F-type input
    NO
  • PKWIU
    27.33.13.0
  • Wave impedance [Ω]
    75
  • Material
    Metal
  • Family
    ONE.PLATFORM
  • Type
    Socket mechanism
  • Backlight
    NO
  • Variant
    RTV sat sat2
  • For the frame system
    Yes

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 68 pcs. 1632 pcs.
Weight (kg) 0,095 0,110 7,920 213,080
Width (m) 0,085 0,085 0,300 0,800
Length (m) 0,045 0,045 0,225 1,050
Depth (m) 0,080 0,085 0,400 1,200
