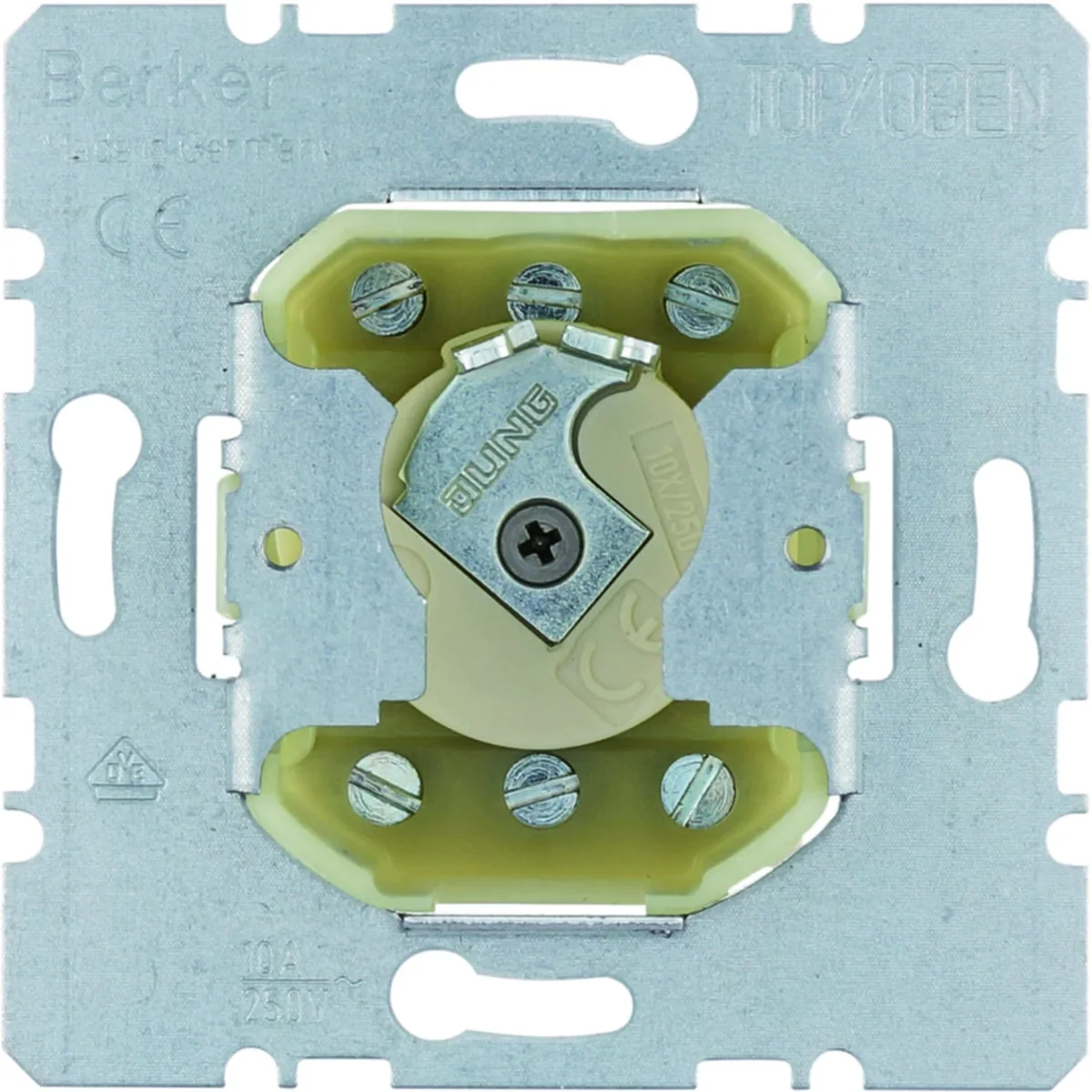

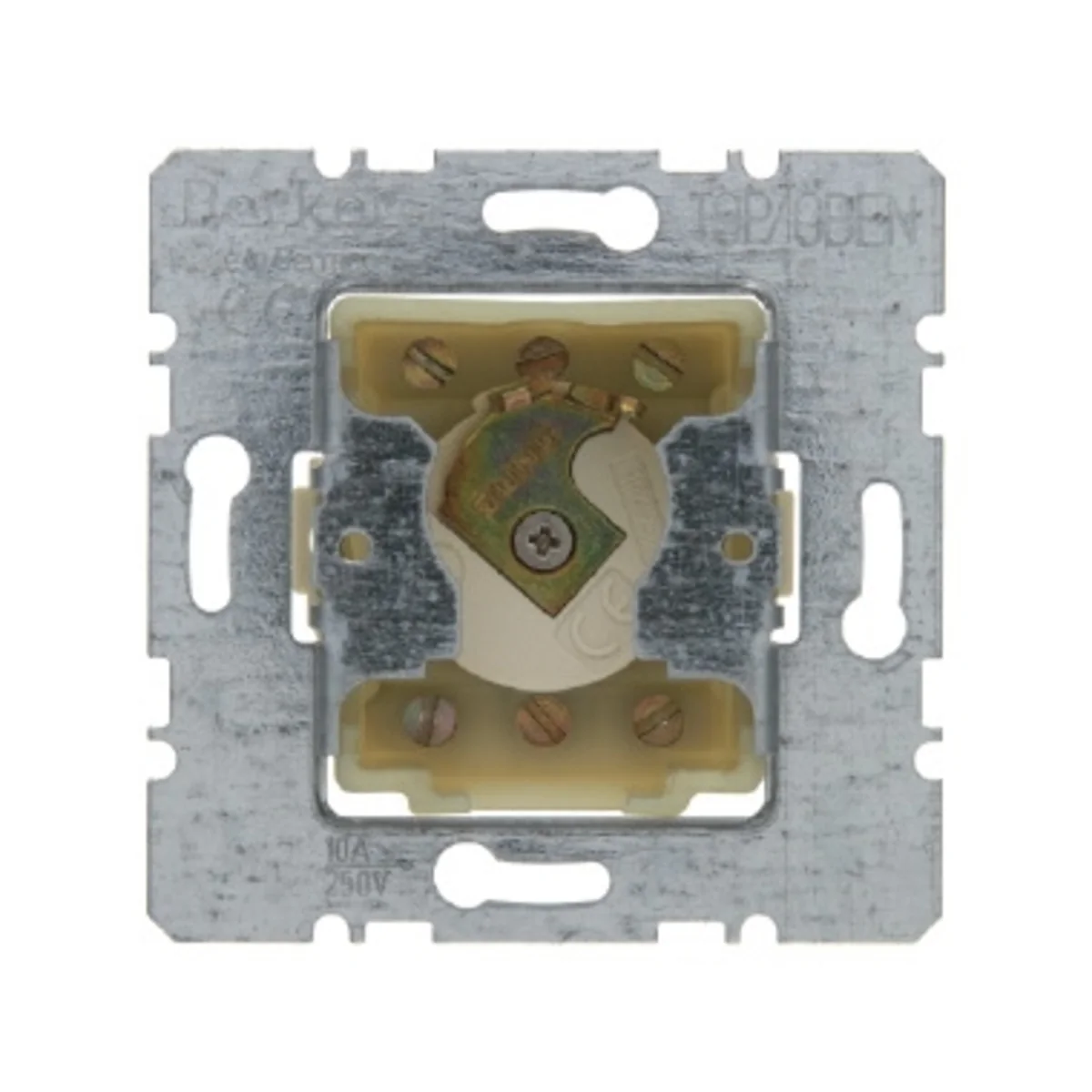

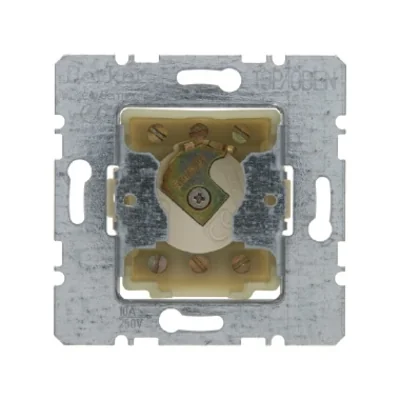

Rotary universal (stair) connector with a key for a cylinder lock 382610

Name: Rotary universal (stair) connector with a key for a cylinder lock
Brand: BERKER
SKU: MPS005BERK
Price: 78.72 PLN

local index:

MPS005BERK

Catalog No:

382610

EAN code:

4011334190752

Rotary universal (stair) connector with a key for a cylinder lock

Click on the photo to enlarge

Manufacturer: BERKER

Depth [mm]: 40.1

Number of keys: key

Shape: Square

See full description

Price:

78,72 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

The key-operated switch mechanism for the lock cylinder, universal (staircase), from the one.platform series, from the manufacturer Berker. Product reference number is 382610.

2-pole/variable.
Without spreaders, for screw connection.
For central locking.
For cylinder inserts.

Technical data

Depth [mm]

40.1
Shape

Square
Installation

Surface-mounted
Rated current [A]

16
Family

ONE.PLATFORM
Width [mm]

70.8
Height [mm]

70.8
Backlight

NO
For the frame system

Yes

Number of keys

key
Material

Plastic Metal
Rated voltage [V]

230
Type

stairs
Level of security

IP20
Type

The linkage mechanism
Surface finish

matte
Terminal type

Threaded
PKWIU

27.33.11.0

Other technical data

Wiring system

2-pole switch
Assembly arrangement

Basic element
Number of rockers

1
Type of fastening

Screw mounting
Material

Other
Halogen free

Yes
Surface finishing

Matt
Suitable for degree of protection (IP)

IP20
Rated current

16 A
Feedback-signal contact

No
Device width

70.8 mm
Device depth

40.1 mm
Min. depth of built-in installation box

35 mm

Method of operation

Key
Push button switch

No
Mounting method

Surface mounted
With mounting plate

No
Material quality

Other
Surface protection

Other
Label space/information surface

No
Nominal voltage

250 V
Switching current for fluorescent lamps

16 AX
Connection type

Screwed terminal
Device height

70.8 mm
Built-in depth

31 mm

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
Tax identification number

6460015532

Bulk packaging

A kind of package	Karton	Pakiet	Paleta
Quantity	10 pcs.	40 pcs.	1280 pcs.
Weight (kg)	0,975	4,340	161,880
Width (m)	0,190	0,300	0,800
Length (m)	0,085	0,225	1,050
Depth (m)	0,255	0,400	1,200
