Manufacturer: BERKER
Halogen free: Yes
Number of keys: Knob
Shape: Square
Price:
88,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

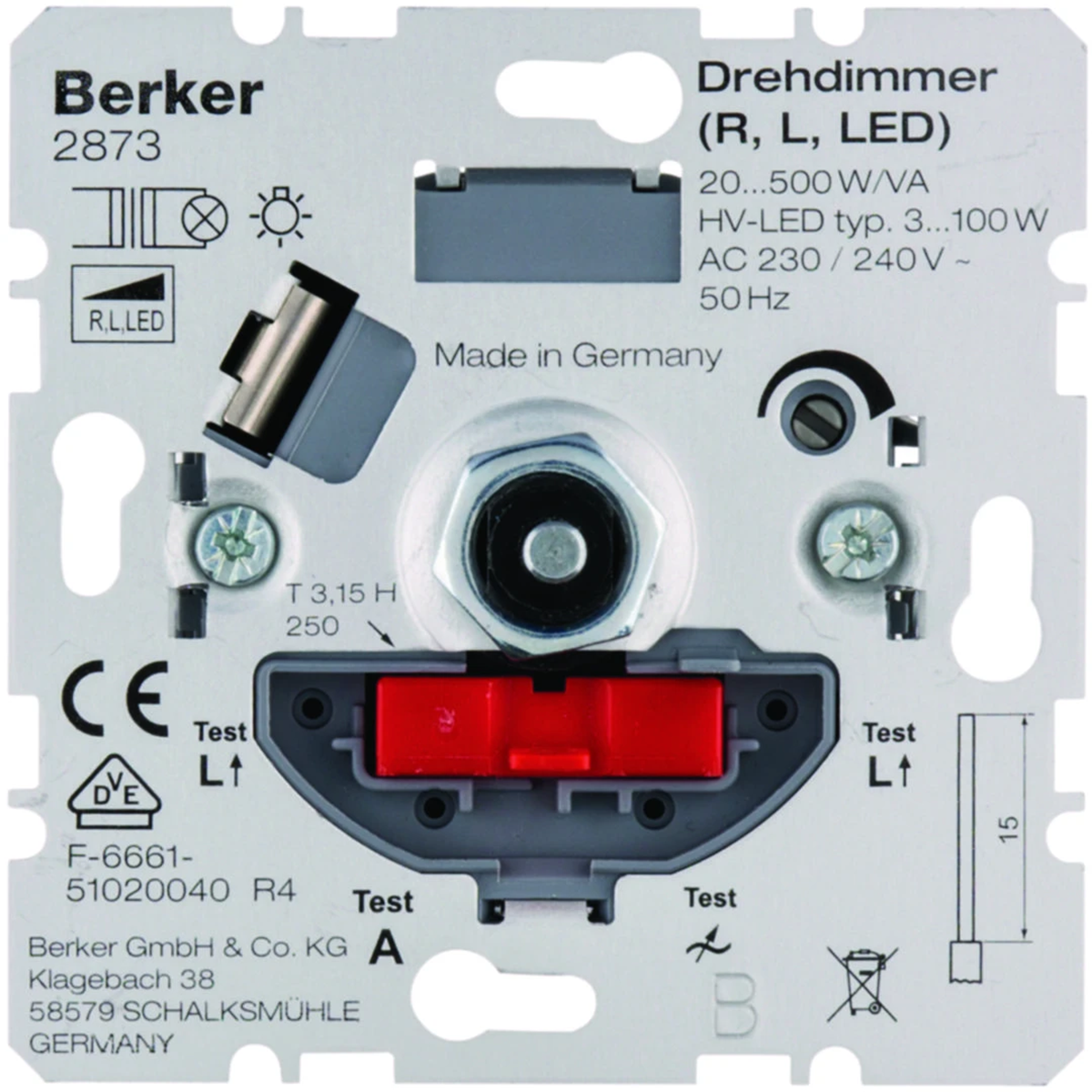

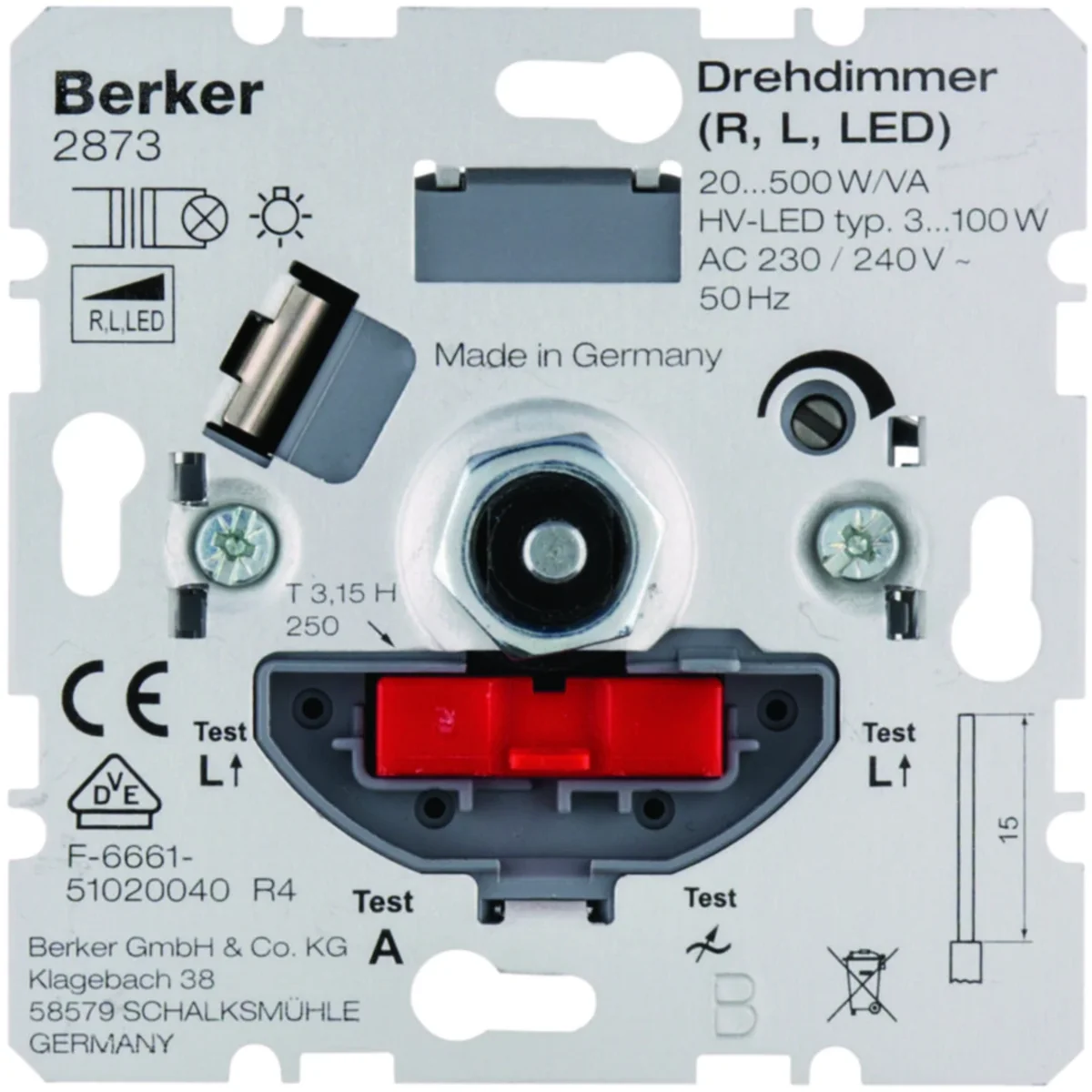

Rotary dimmer mechanism of the one.platform series. The product catalog number is 2873.

  • R/L load.
  • 20-500 W.
  • Supports 3-100 W LED lamps.
  • Checking the voltage is possible without disassembly.
  • Control current: 100mA.
  • Fuse: T 3.15H 250.
  • With spare fuse, short-circuit and overload protection (fuse) .
  • Power:
    • Conventional dimming transformers: 20…500 VA.
    • Power loss at full load: ≈ 5 W.
    • Compact fluorescent lamps: 3…100 W
    • 230 V incandescent and halogen lamps: 20…500 W.
    • < /ul>
    • Inductive load.
    • With base load clamp.
    • With adjustable basic light intensity.
    • Adjustment by cutting out phases with a push-button variable connector.

Technical data

  • Halogen free
    Yes
  • Shape
    Square
  • Type
    dimmers
  • Type
    The linkage mechanism
  • Backlight
    NO
  • For the frame system
    Yes
  • Number of keys
    Knob
  • Rated voltage [V]
    230
  • Family
    ONE.PLATFORM
  • Version
    For halogen lighting For LED
  • Variant
    Rotary
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element
  • Dimming phase cut-on
    Yes
  • Serial dimmer
    No
  • Substation input
    No
  • Applicable with button
    No
  • Applicable with presence indicator
    No
  • Applicable with transmission button
    No
  • Mounting method
    Flush-mounted
  • Material
    Other
  • Halogen free
    Yes
  • Transparent
    No
  • Nominal voltage
    230 ... 230 V
  • Connection type
    Push-in clamp
  • Device height
    82 mm
  • Method of operation
    Turn/push button
  • Dimming phase cut-off
    No
  • Type of load
    Inductive load
  • Light value memory
    No
  • Applicable with movement sensor
    No
  • Applicable with time switch/timer
    No
  • Applicable with infrared button
    No
  • Type of fastening
    Mounting with claw
  • Material quality
    Other
  • Surface protection
    Untreated
  • Suitable for degree of protection (IP)
    IP20
  • Frequency
    50 ... 50 Hz
  • Device width
    82 mm
  • Device depth
    67 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 100 pcs. 1600 pcs.
Weight (kg) 0,154 0,160 16,840 292,440
Width (m) 0,082 0,085 0,430 0,800
Length (m) 0,067 0,070 0,295 1,050
Depth (m) 0,082 0,085 0,435 1,200
