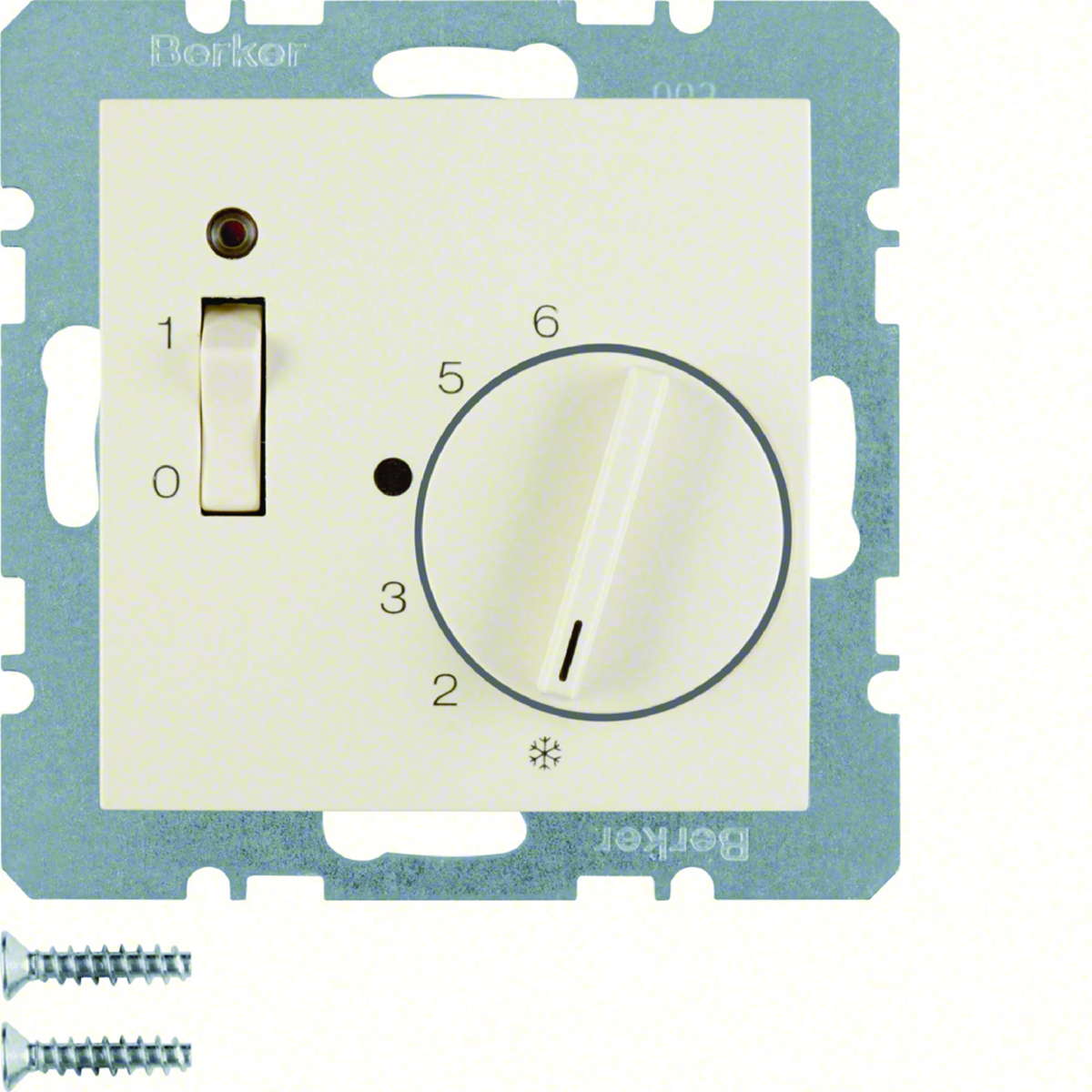

Room temperature controller with NC contact, central element, switch and diode 5-30 °C 230V - Cream gloss 20308982

local index:
MWT008BERK
Catalog No:
20308982
EAN code:
4011334309420
Manufacturer: BERKER
Color: Beige
Material: Plastic
Rated voltage [V]: 230
Price:
107,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Description:

  • 5 - 30°C, 50/60 Hz;
  • Rated voltage 250 V~;
  • Rated current 10 A ;
  • inductive load capacity at cos 0.6 = 4 A;
  • contact current "cooling" 5 A;
  • inductive load capacity "cooling" at cos 0.6 = 2A;
  • switching temperature difference approx. 0.5°C;

When the set temperature is reached, the contact opens.< /p>

  • printed
  • adjustment knob with limited temperature range
  • for heating or air conditioning
  • with thermal feedback
  • e.g. for valve drives closed when de-energised
  • only for screw fixing via carrier plate
  • with plug-in terminals

Note: Neutral is required

Technical data

  • Color
    Beige
  • Rated voltage [V]
    230
  • Family
    B.SQUARE
  • Level of security
    IP20
  • Height [mm]
    71
  • Type of material
    Plastic
  • PKWIU
    26.51.70.0
  • Material
    Plastic
  • Rated current [A]
    10
  • Switching temperature difference [K]
    0.5
  • Width [mm]
    71
  • Temperature range [°C]
    >5
  • Accurate color
    Creamy

Other technical data

  • Model
    On/Off
  • Differential value
    0.5 ... 0.5 K
  • Sensor/feeler type
    Bimetal
  • Degree of protection (IP)
    IP20
  • Height
    71 mm
  • Depth
    50.9 mm
  • Thermal feedback
    Series
  • Temperature readable
    No
  • Mounting method
    Flush-mounted
  • RAL-number
    9001
  • Width
    71 mm
  • Class of the temperature control
    I

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,099 0,105 4,335 163,720
Width (m) 0,071 0,090 0,300 0,800
Length (m) 0,050 0,070 0,225 1,050
Depth (m) 0,071 0,085 0,400 1,200
