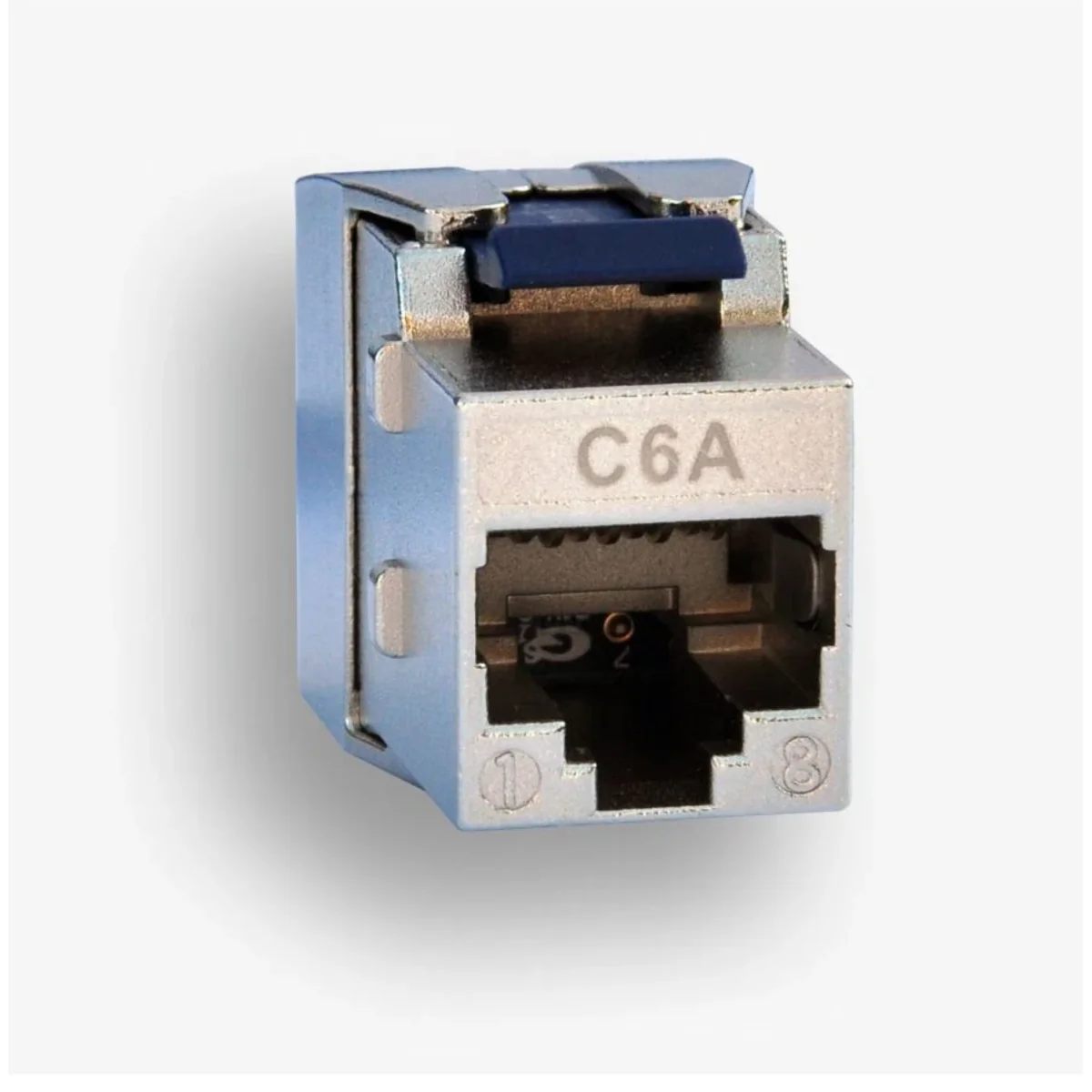

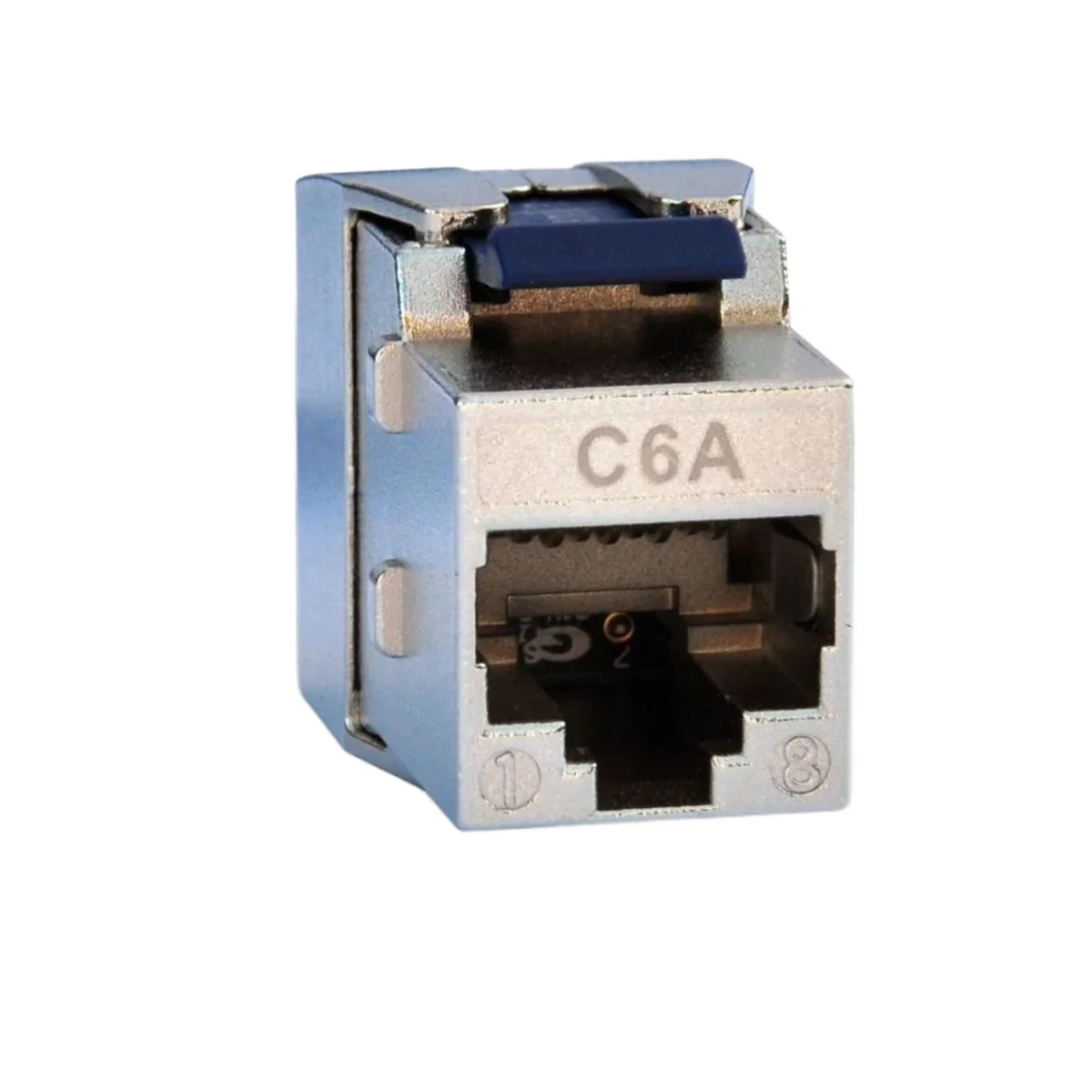

RJ45 socket STP 6A toolless slim shielded blue EM/SQKSS-C6A

local index:
AEA090EMSO
Catalog No:
EM/SQKSS-C6A
EAN code:
5906764106543
Manufacturer: EMITER
Shielded: Yes
Category: 6a
Color: Blue
Price:
5,06 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The STP RJ45 cat.6A keystone socket can be installed in any adapter for keystone connectors with dimensions (height x width) 25x21mm, e.g. in adapters for 45x45 sockets, electrical equipment frames, modular panels, thanks to which the list of applications of this sockets. The slot has a full screen - 360° and color marking of the 568A/B type connection sequence.

It is a socket with miniaturized dimensions, the so-called “slim”.

Technical data

  • Shielded
    Yes
  • Color
    Blue
  • Category
    6a
  • Connector type
    RJ45

Other technical data

  • Model
    Bus (jack)
  • Screened
    Yes
  • Connection type
    Other
  • Suitable for round cable
    Yes
  • Suitable for litz wire conductor
    Yes
  • Colour
    Silver
  • Type of connector
    RJ45 8(8)
  • Category
    6A (IEC)
  • Special tool necessary
    No
  • Suitable for flat cable
    No
  • Suitable for solid conductors
    Yes
  • AWG-range
    22 ... 24
