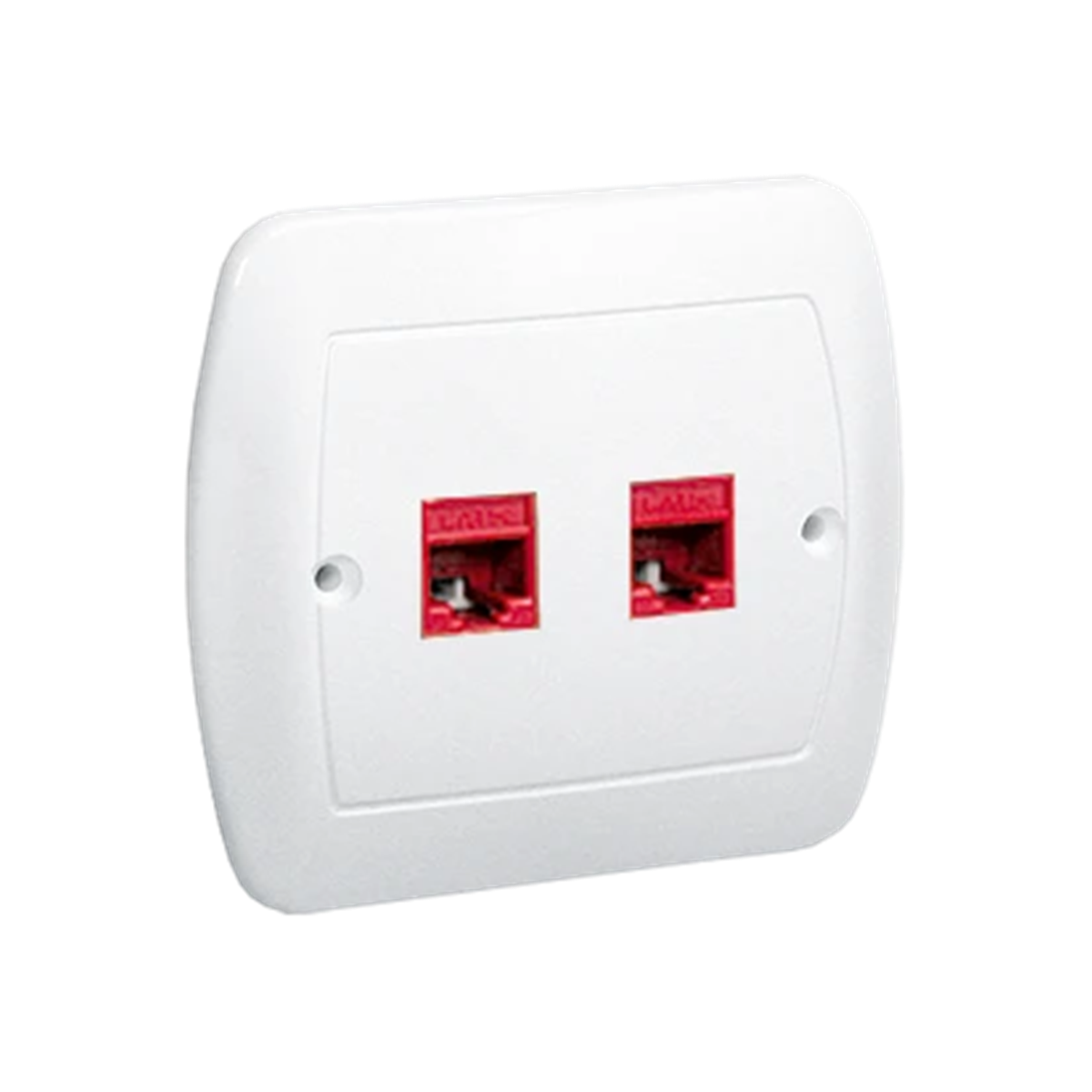

RJ45 double computer socket cat. 5e white AF52/11

local index:
MEI195KONT
Catalog No:
AF52/11
EAN code:
5902787569976
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 30.5
Category: 5e
Price:
23,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Internet computer socket from the Simon Akord series, from the manufacturer Contact Simon. The product part number is AF52/11.



FEATURES

  • Double.
  • RJ plug manufacturer: Leviton.
  • Mounting with screws (e.g. to a box).



SERIES DESCRIPTION

Simon Akord is a minimalist monoblock, i.e. non-frame series. Internet socketcharacterize the features of this unique series.

Technical data

  • Halogen free
    Yes
  • Category
    5e
  • Shape
    Rectangular
  • Fixing
    Screws
  • Type
    Internet
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    80.5
  • Surface finish
    Shiny
  • Mounting depth [mm]
    20.5
  • Variant
    RJ45 (twisted pair)
  • Number of internet sockets
    2
  • Exact material
    PC
  • Depth [mm]
    30.5
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Family
    SIMON CHORD
  • Width [mm]
    90
  • Version
    UTP
  • Surface protection
    Natural
  • Accurate color
    White
  • Terminal type
    Insulation piercing clamp
  • For the frame system
    Yes
  • Dust cover
    NO
  • PKWIU
    27.33.13.0

Other technical data

  • Type of connector
    RJ45 8(8)
  • Shielded housing
    No
  • Compatible with third-party covers
    Yes
  • With dust cover
    No
  • Colour
    White
  • Separate earthing connection
    No
  • Outlet direction
    Straight
  • Colour coding
    Yes

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 14 pcs.
Weight (kg) 0,031 0,031 0,935
Width (m) 0,080 0,110 0,190
Length (m) 0,090 0,040 0,230
Depth (m) 0,031 0,160 0,100
