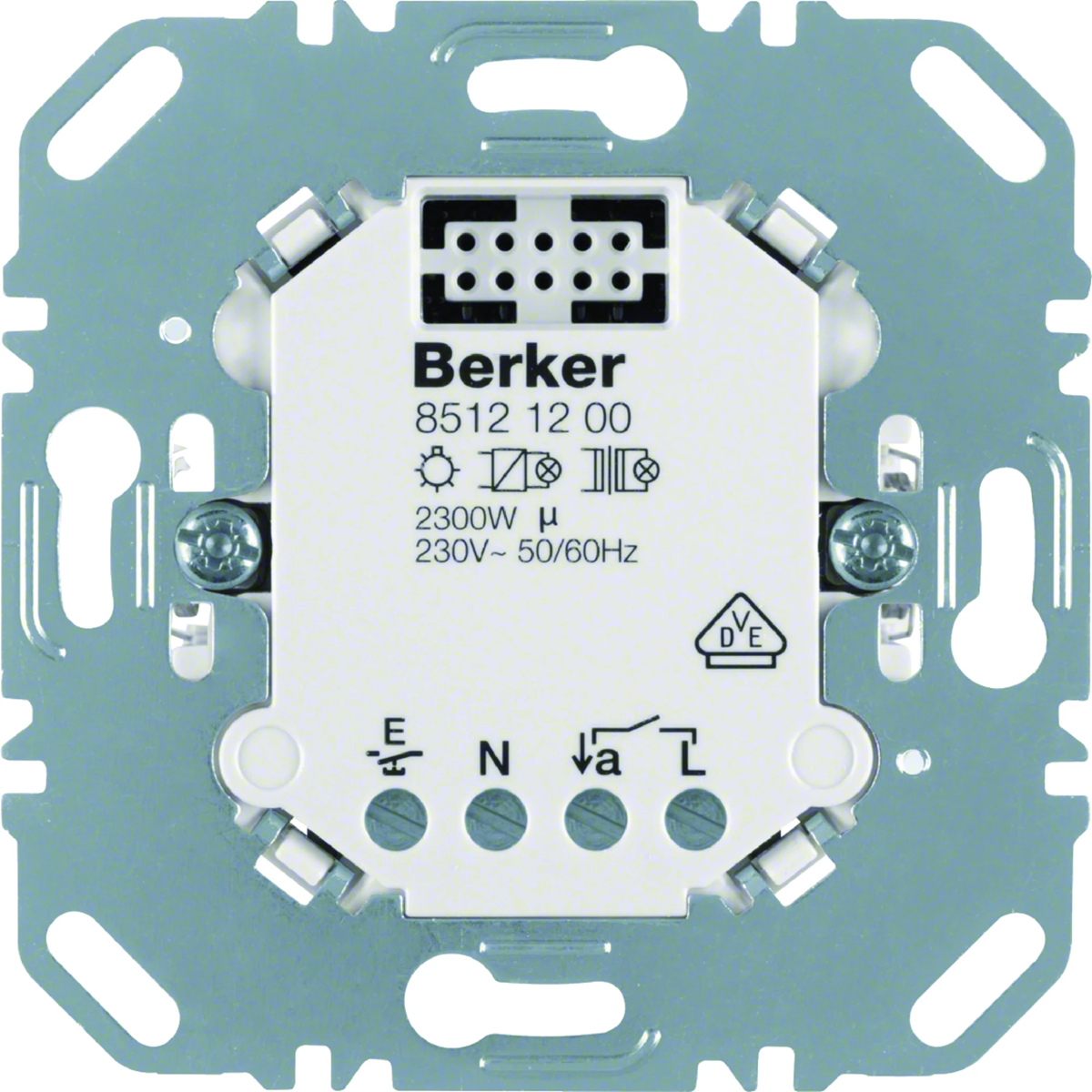

Relay switching controller 85121200

local index:
MWW006BERK
Catalog No:
85121200
EAN code:
4011334375968
Manufacturer: BERKER
Rated voltage [V]: 230
Price:
94,41 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Features:

  • low energy consumption
  • can be used as push-button switching relay
  • with extension input for make contacts and extensions sensoróin motion
  • no conductive connection between expansion lugs and support ring
  • with screw terminals



Parameters:

  • operating voltage 230V 50/60Hz
  • power consumption (waiting) <0.3W
  • incandescent lamps 230V 2300W
  • dimmable 230V 440W LED lamps
  • dimmable 440W energy saving lamps
  • fluorescent lamps: -1100VA uncompensated; - parallel compensated 1000W/130microF; - double connection 1000w; - with electronic ballasts 1000W
  • compact fluorescent lamps with electronic ballasts 22 x 20W
  • dimmable conventional transformers 1500VA
  • electronic transformers 1500W
  • minimal load = 15 W
  • operating temperature -5 - +45 °C
  • unlimited number of control extensions
  • length of load wires maximum 100m
  • built-in depth 22mm
  • built-in depth of spreading claws 32mm

Neutral cable required!

Technical data

  • Rated voltage [V]
    230
  • PKWIU
    27.12.24.0

Other technical data

  • Assembly arrangement
    Basic element
  • Substation input
    Yes
  • Applicable with button
    Yes
  • Applicable with presence indicator
    No
  • Applicable with transmission button
    Yes
  • Mounting method
    Flush-mounted
  • Material quality
    Other
  • Transparent
    No
  • Frequency
    50 ... 60 Hz
  • Model
    Relay and HVAC-relay
  • Light value memory
    No
  • Applicable with movement sensor
    Yes
  • Applicable with time switch/timer
    No
  • Applicable with infrared button
    No
  • Material
    Other
  • Surface protection
    Other
  • Nominal voltage
    230 V
  • Type of fastening
    Mounting with claw

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 2400 pcs.
Weight (kg) 0,094 0,105 6,855 299,200
Width (m) 0,071 0,090 0,305 0,800
Length (m) 0,034 0,075 0,340 1,050
Depth (m) 0,071 0,085 0,400 1,200
