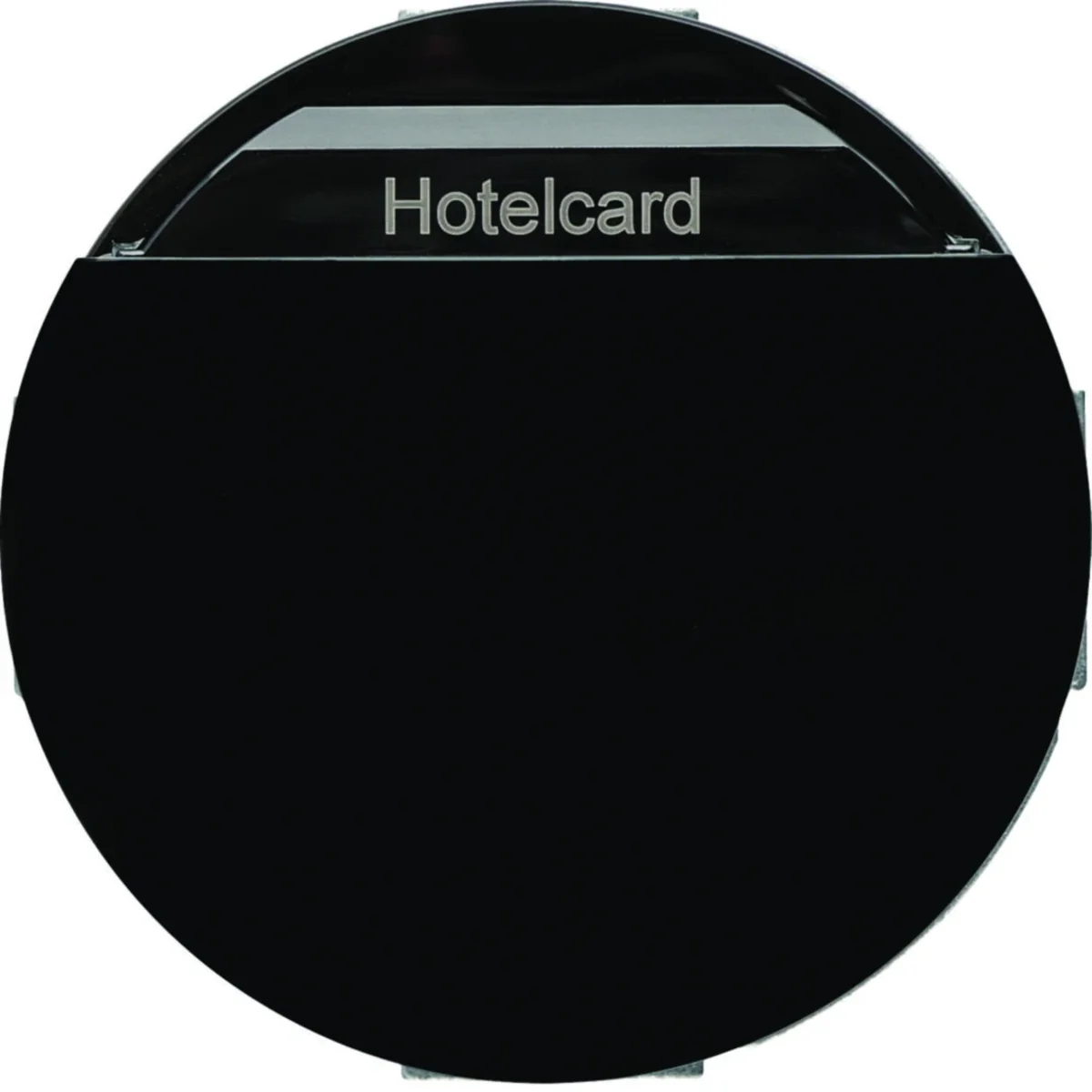

R.CLASSIC/SESRIE 1930 Relay switch for hotel card black gloss 16402035

local index:
MMH001BERK
Catalog No:
16402035
EAN code:
4011334400417
Manufacturer: BERKER
Depth [mm]: 60
Number of keys: hotel card
Color: Black
Price:
88,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Relay switch for the hotel card from the R.classic/1930/Glas series, from Berker. Product part number is 16402035.



FEATURES

  • 1-pole.
  • < li>Inductive load at cos φ = 0.6: max. 6 A.
  • Power:
    • Conventional transformers: 1500 VA.
    • Electronic transformers: 1500 W.
    • Input power : < 0.2W.
  • Card width: max. 55 mm.
  • Card thickness: 0.8…1.2 mm.
  • Fluorescent bulb control:
    • Compact fluorescent lamps: 500 W.
    • Power of fluorescent lamps in a dual system: 1500 W.
  • Incandescent lamp control:
    • Incandescent lamps and 230V halogen lamps: 1500W.
  • Blue LED backlight when hotel card is not inserted.
  • Screw terminals (max.) : 2 x 2.5 mm².
  • Delay time adjustable in steps: 0, 15, 30, 60 s.
  • With potentiometer for stepwise setting of delay time
  • For connection to backlight.
  • With dry contact.
  • With Ø 58mm.

Technical data

  • Depth [mm]
    60
  • Color
    Black
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Rated current [A]
    6
  • Family
    R.CLASSIC SERIES 1930 GLASSERY
  • Diameter [mm]
    58
  • Surface finish
    Shiny
  • Mounting depth [mm]
    32
  • For the frame system
    Yes
  • Backlight color
    Blue
  • Number of keys
    hotel card
  • Shape
    Round
  • Fixing
    Expanding claws
  • Shutdown delay [s]
    0 15 30 60
  • Type
    Hotel
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Backlight
    Yes
  • Terminal type
    Threaded
  • Backlight type
    LED
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Method of operation
    Hotel card
  • Number of poles
    1
  • Rated current
    10 A
  • With signal lamp
    Yes
  • Mounting method
    Flush-mounted
  • Material
    Other
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Colour
    Black
  • Transparent
    No
  • Imprint
    Other
  • Device depth
    60 mm
  • Model
    Other
  • Number of rockers
    0
  • Nominal voltage
    230 V
  • With lighting
    Yes
  • Feedback-signal contact
    No
  • Type of fastening
    Mounting with claw
  • Material quality
    Other
  • Anti-bacterial treatment
    No
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9005
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP20
  • Min. depth of built-in installation box
    35 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,096 0,140 5,500 199,000
Width (m) 0,070 0,090 0,300 0,800
Length (m) 0,060 0,075 0,225 1,050
Depth (m) 0,070 0,090 0,400 1,200
