R.CLASSIC/SERIE 1930 Relay switch for hotel card glossy white 16402079
local index:
MMH003BERK
Catalog No:
16402079
EAN code:
4011334400400
Price:
88,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

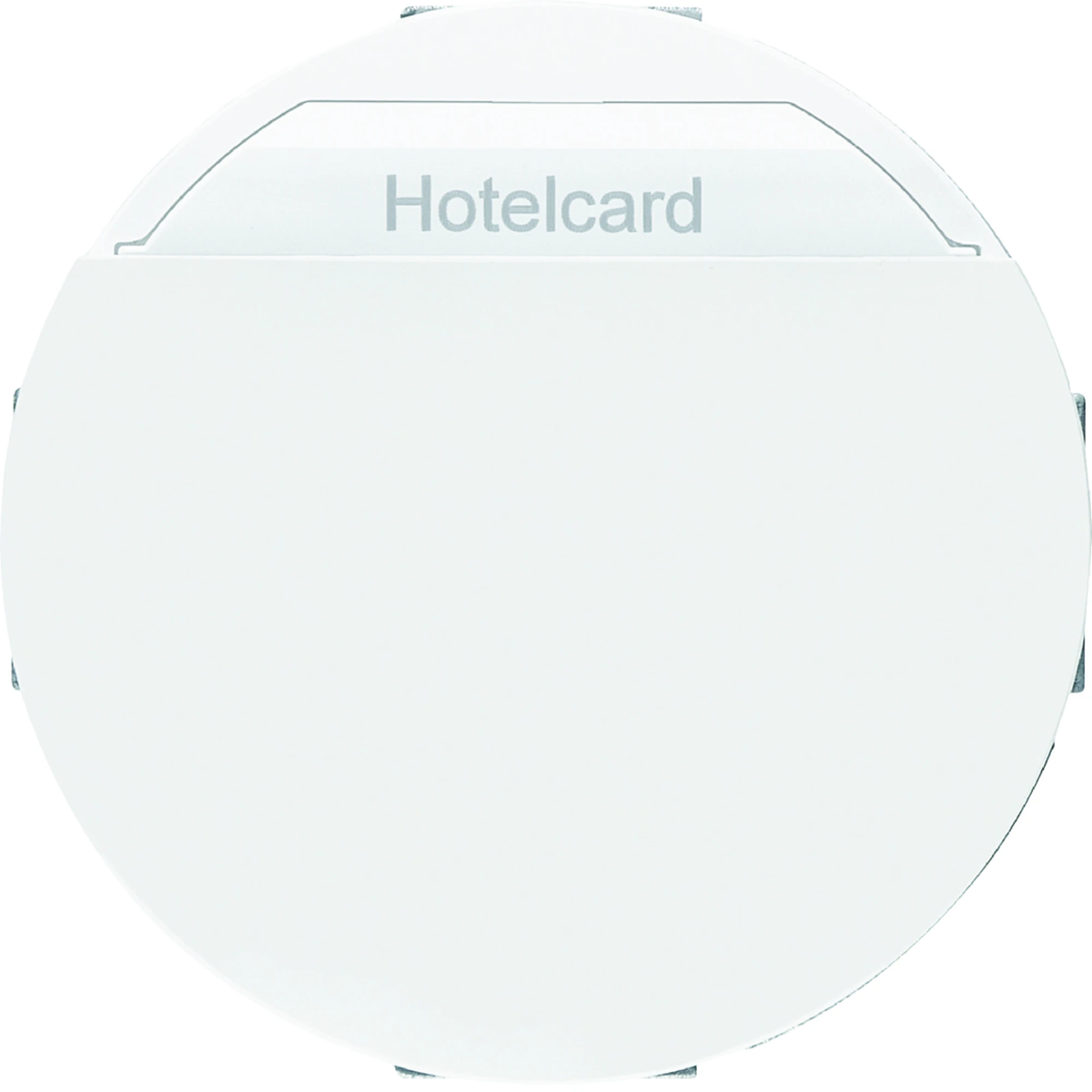

Relay switch for the hotel card from the R.classic/1930/Glas series, from Berker. Product part number is 16402079.
FEATURES
- 1-pole. < li>Inductive load at cos φ = 0.6: max. 6 A.
- Power:
- Conventional transformers: 1500 VA.
- Electronic transformers: 1500 W.
- Input power : < 0.2W.
- Card width: max. 55 mm.
- Card thickness: 0.8…1.2 mm.
- Fluorescent bulb control:
- Compact fluorescent lamps: 500 W.
- Power of fluorescent lamps in a dual system: 1500 W.
- Incandescent lamp control:
- Incandescent lamps and 230V halogen lamps: 1500W.
- Blue LED backlight when hotel card is not inserted.
- Screw terminals (max.) : 2 x 2.5 mm².
- Delay time adjustable in steps: 0, 15, 30, 60 s.
- With potentiometer for stepwise adjustment of delay time
- For connection to backlight.
- With dry contact.
- With Ø 58mm.
Technical data
-
Depth [mm]60
-
ColorWhite
-
MaterialPlastic
-
Rated voltage [V]230
-
Rated current [A]6
-
FamilyR.CLASSIC SERIES 1930 GLASSERY
-
Diameter [mm]58
-
Surface finishShiny
-
BacklightYes
-
Terminal typeThreaded
-
Backlight typeLED
-
PKWIU27.33.11.0
-
Number of keyshotel card
-
ShapeRound
-
FixingExpanding claws
-
Shutdown delay [s]0 15 30 60
-
TypeHotel
-
Level of securityIP20
-
TypeFlush-mounted
-
Accurate colorSnow white
-
Mounting depth [mm]32
-
For the frame systemYes
-
Backlight colorBlue
Other technical data
-
Assembly arrangementBasic element with central cover plate
-
Method of operationHotel card
-
Number of poles1
-
Rated current10 A
-
With signal lampYes
-
Mounting methodFlush-mounted
-
MaterialOther
-
Halogen freeYes
-
Surface protectionUntreated
-
ColourWhite
-
TransparentNo
-
ImprintOther
-
Device depth60 mm
-
ModelOther
-
Number of rockers0
-
Nominal voltage230 V
-
With lightingYes
-
Feedback-signal contactNo
-
Type of fasteningMounting with claw
-
Material qualityOther
-
Anti-bacterial treatmentNo
-
Surface finishingGlossy
-
RAL-number (similar)9010
-
Label space/information surfaceNo
-
Suitable for degree of protection (IP)IP20
-
Min. depth of built-in installation box35 mm
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. | 1152 pcs. |
| Weight (kg) | 0,095 | 0,140 | 5,490 | 198,680 |
| Width (m) | 0,070 | 0,090 | 0,300 | 0,800 |
| Length (m) | 0,060 | 0,075 | 0,230 | 1,050 |
| Depth (m) | 0,070 | 0,090 | 0,390 | 1,200 |
