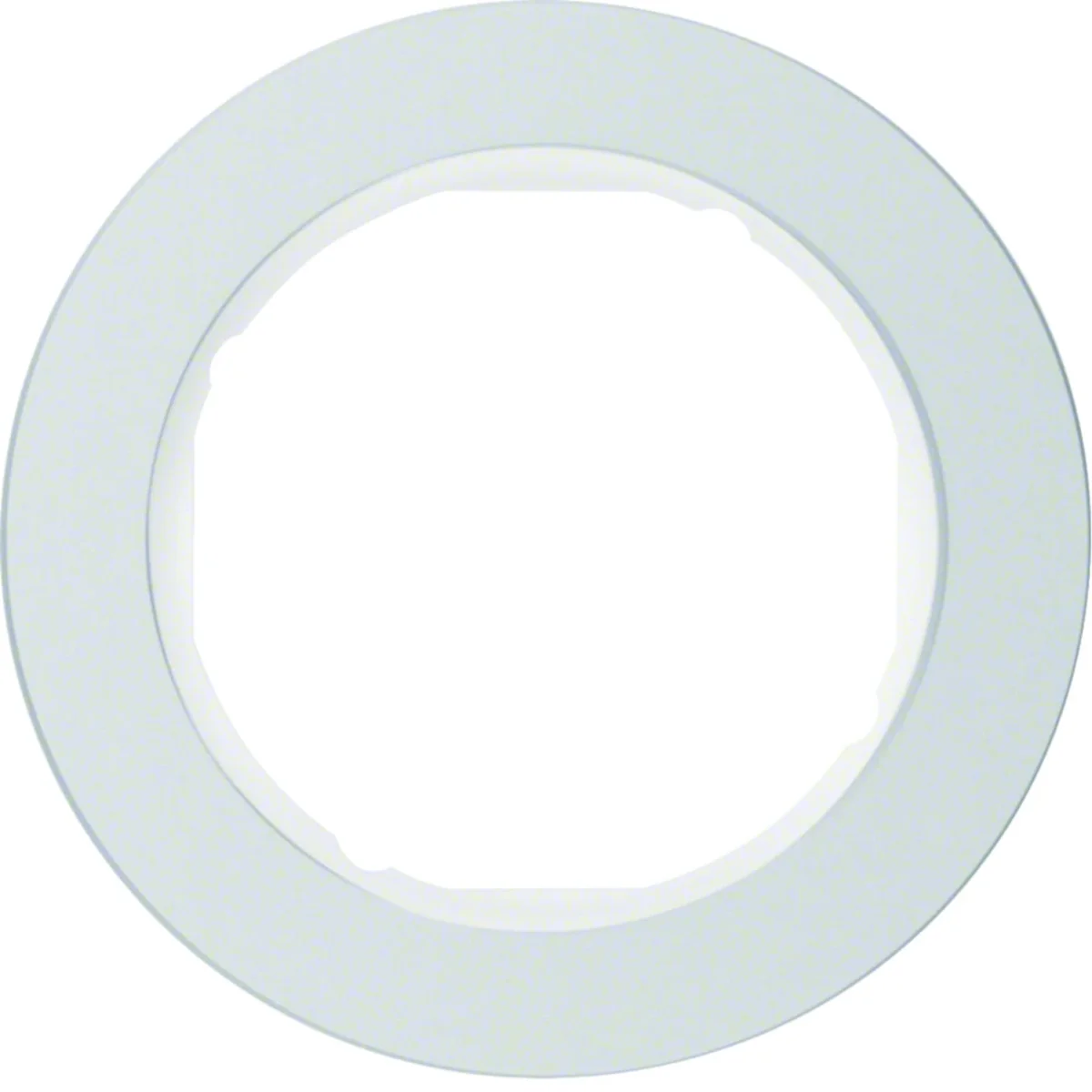

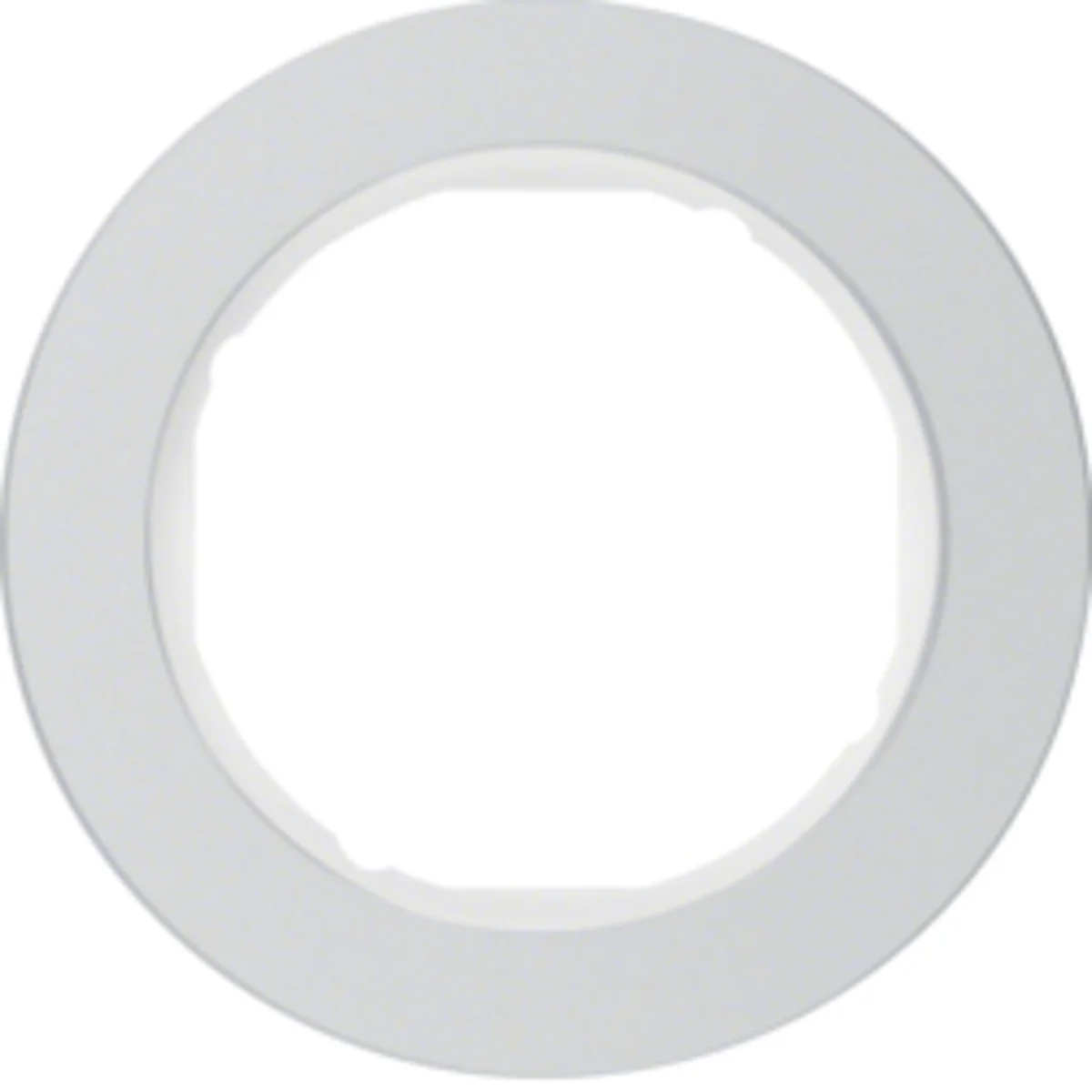

R.CLASSIC Frame 1-gang aluminium/white 10112074

local index:
MAR006BERK
Catalog No:
10112074
EAN code:
4011334392255
Manufacturer: BERKER
Depth [mm]: 9.9
Number of modules: 1
Color: silver | White
Price:
56,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Single framefrom the R.classic series, from Berker. The product catalog number is 10112074.

  • 7 mm high-quality plastic base.

Technical data

  • Depth [mm]
    9.9
  • Color
    silver White
  • Material
    Metal
  • Family
    R.CLASSIC
  • Width [mm]
    81.2
  • Surface finish
    matte
  • For modular equipment
    Not applicable
  • The shape of the matching accessory
    Round
  • Number of modules
    1
  • Shape
    Round
  • Type
    Standard
  • Level of security
    IP20
  • Height [mm]
    81.2
  • Mounting direction
    Universal
  • Exact material
    Anodized aluminum
  • PKWIU
    27.12.40.0

Other technical data

  • Number of units
    1
  • Number of units horizontal
    1
  • Number of modules horizontal (module system)
    0
  • Liczba łączników
    1
  • Suitable for subfloor installation duct box
    No
  • Suitable for built-in installation
    Yes
  • Material
    Metal
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9006
  • With hinged lid
    No
  • Impact strength
    IK07
  • Width
    81.2 mm
  • Depth
    9.9 mm
  • Built-in height
    0 mm
  • Mounting direction
    Horizontal and vertical
  • Number of units vertical
    1
  • Number of modules vertical (module system)
    0
  • With mounting grid
    No
  • Suitable for wall duct
    Yes
  • Label space/information surface
    No
  • Material quality
    Aluminium
  • Surface protection
    Anodised
  • Colour
    Aluminium
  • Transparent
    No
  • Degree of protection (IP)
    IP20
  • Type of fastening
    Clamp mounting
  • Height
    81.2 mm
  • Built-in width
    0 mm
  • Diameter bore hole (opening)
    54 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 220 pcs. 7040 pcs.
Weight (kg) 0,030 0,329 7,685 265,904
Width (m) 0,081 0,098 0,300 0,800
Length (m) 0,010 0,089 0,225 1,050
Depth (m) 0,081 0,105 0,400 1,200
