R.3 4-fold black gloss frame 10142245

local index:
MAR231BERK
Catalog No:
10142245
EAN code:
4011334393344
Manufacturer: BERKER
Depth [mm]: 9.9
Number of modules: 4
Color: Black
Price:
29,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

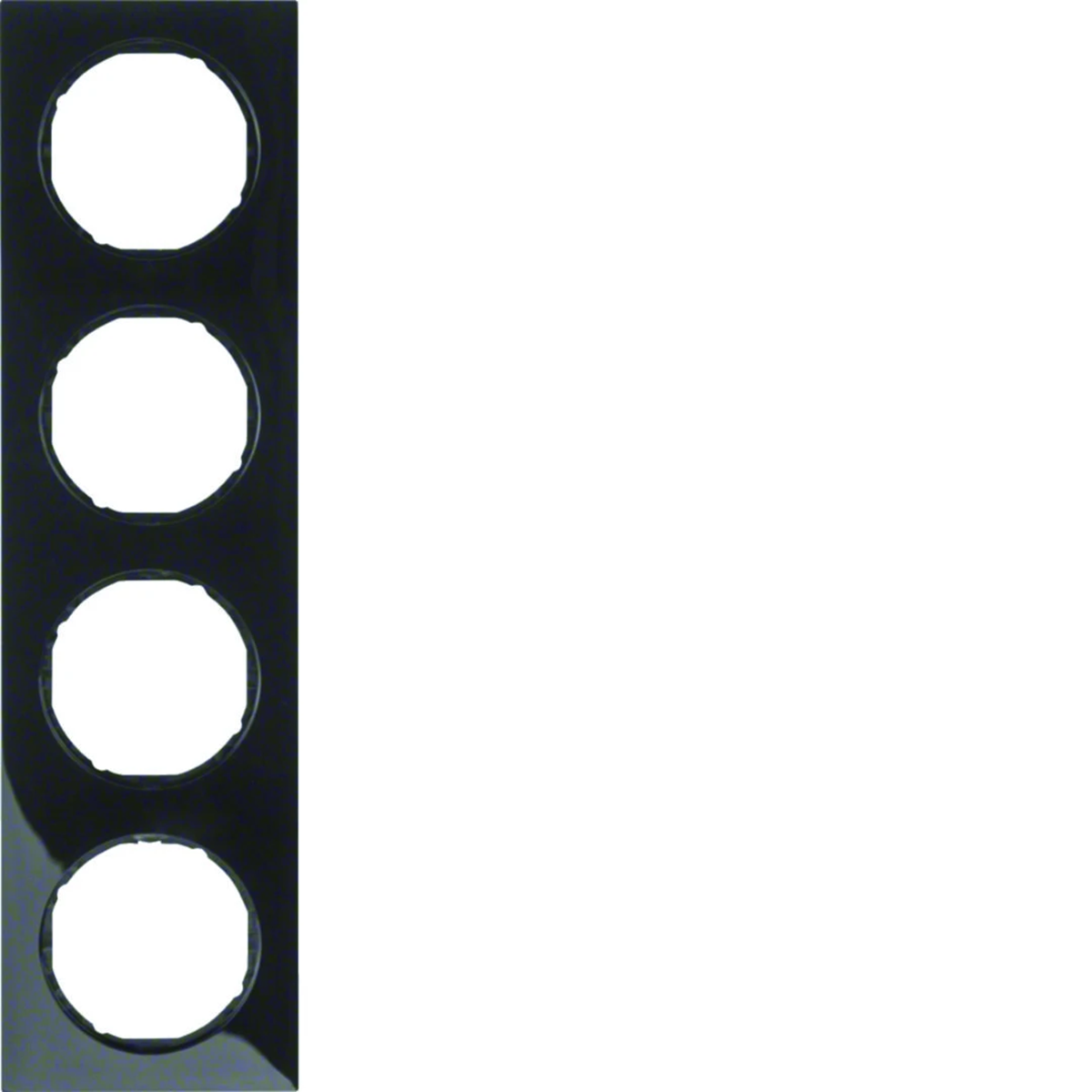

4-fold frame from the R.3 series from Berker. The product catalog number is 10142245.



SERIES DESCRIPTION

Berker R.3 Series is an elegant combination of a rectangular frame with a rounded central element.

Technical data

  • Depth [mm]
    9.9
  • Color
    Black
  • Material
    Plastic
  • Family
    R.3
  • Width [mm]
    80.7
  • Surface protection
    Natural
  • Mounting direction
    Universal
  • The shape of the matching accessory
    Round
  • Number of modules
    4
  • Shape
    Rectangular
  • Type
    Standard
  • Level of security
    IP20
  • Height [mm]
    293.7
  • Surface finish
    Shiny
  • For modular equipment
    Not applicable
  • PKWIU
    27.12.40.0

Other technical data

  • Number of units
    4
  • Number of units horizontal
    4
  • Number of modules horizontal (module system)
    0
  • Liczba łączników
    4
  • Suitable for subfloor installation duct box
    No
  • Suitable for built-in installation
    Yes
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9005
  • With hinged lid
    No
  • Impact strength
    IK05
  • Width
    80.7 mm
  • Depth
    9.9 mm
  • Built-in height
    0 mm
  • Mounting direction
    Horizontal and vertical
  • Number of units vertical
    4
  • Number of modules vertical (module system)
    0
  • With mounting grid
    No
  • Suitable for wall duct
    Yes
  • Label space/information surface
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Black
  • Transparent
    No
  • Degree of protection (IP)
    IP20
  • Type of fastening
    Clamp mounting
  • Height
    293.7 mm
  • Built-in width
    0 mm
  • Diameter bore hole (opening)
    52 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 2 pcs. 52 pcs. 1664 pcs.
Weight (kg) 0,062 0,165 4,665 172,280
Width (m) 0,294 0,095 0,300 0,800
Length (m) 0,010 0,025 0,225 1,050
Depth (m) 0,081 0,310 0,400 1,200
