R.1/R.3 Shutter time switch with white glossy display 85741139

local index:
MWL006BERK
Catalog No:
85741139
EAN code:
4011334375227
Manufacturer: BERKER
Switching time [s]: < 0.6s
Material: Plastic | Metal
Rated voltage [V]: 12
Price:
218,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

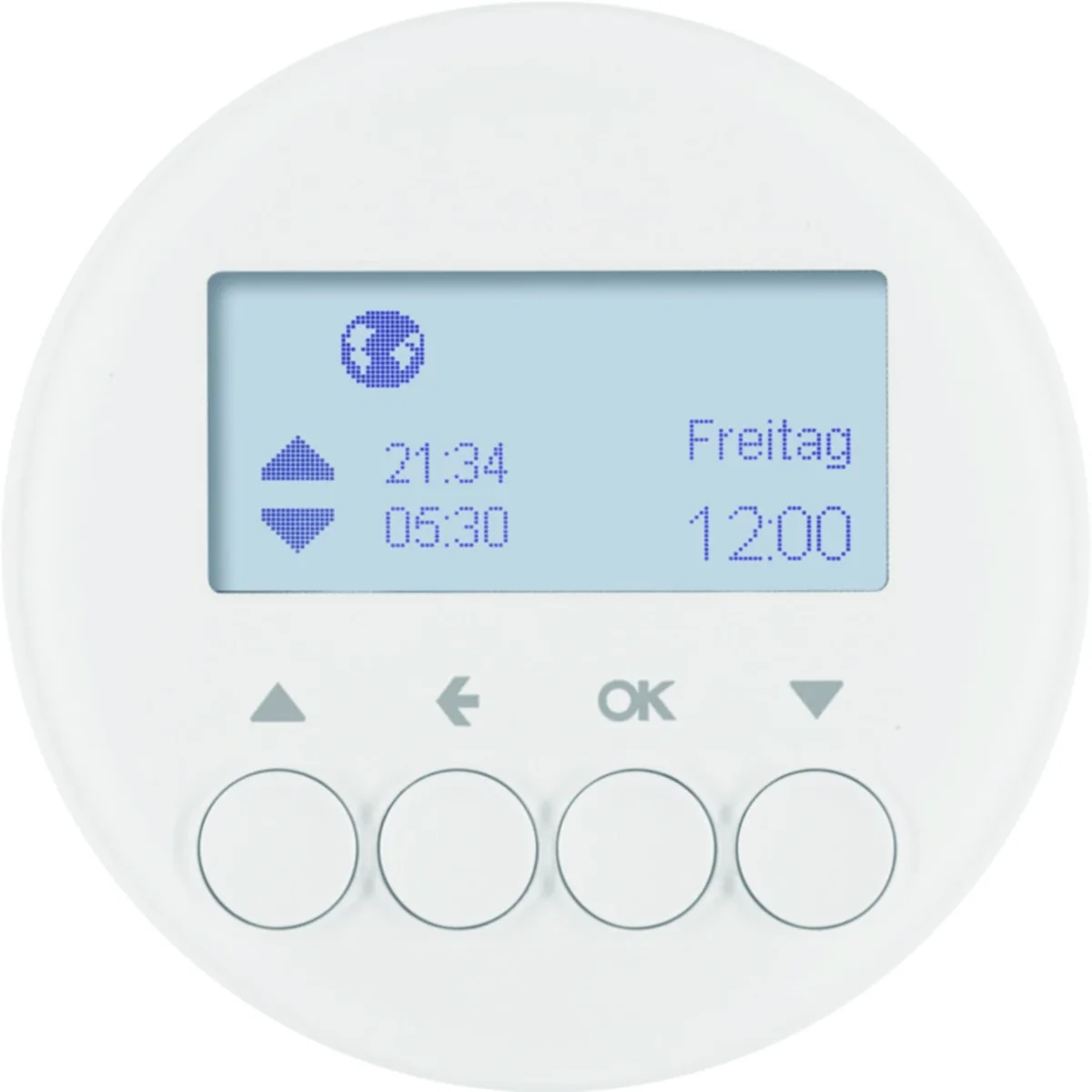

Louver time switch with display, Berker R.1/R.3/Serie 1930/R.classic.

Features:

  • reset function (to factory settings)
  • with button lock
  • party function, automatic, radio commands and extension commands are not executed (lock)
  • manual/automatic toggle

Controls and Indicators:

  • LCD backlit during operation
  • indication of attachment/mechanism compatibility on the display
  • adjustable LCD contrast

Settings< /strong>:

  • with automatic winter/summer time changeover (detachable)
  • astronomical program for sunrise/sunset changeover with possibility to enter city/country and individual adjustments
  • vacation program causing random selection of shift times in automatic mode

Technical data

  • Switching time [s]
    < 0.6s
  • Rated voltage [V]
    12
  • Operating temperature range [°C]
    from -5 to 45
  • Power reserve [h]
    24
  • PKWIU
    26.52.24.0
  • Material
    Plastic Metal
  • Family
    R.1 R.3
  • Minimum slat adjustment time [ms]
    250
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)

Other technical data

  • Assembly arrangement
    Control end-piece
  • With brightness sensor connection
    No
  • Suitable for rain sensor
    Yes
  • With Astro program
    No
  • With memory function
    Yes
  • Random generator
    Yes
  • Mounting method
    Other
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Max. switching power
    0 W
  • Nominal voltage
    12 V
  • Type of fastening
    Clamp mounting
  • Integrated timer
    Yes
  • Suitable for wind sensor
    Yes
  • With glass breaking detector connection
    No
  • Substation input
    Yes
  • Twilight value adjustable
    0 ... 0 lx
  • Switch-off protection
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9010
  • Suitable for degree of protection (IP)
    IP20
  • Autonomy
    24 h
  • Frequency
    0 ... 0 Hz

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,067 0,084 3,577 134,454
Width (m) 0,058 0,090 0,300 0,800
Length (m) 0,031 0,075 0,225 1,050
Depth (m) 0,058 0,090 0,400 1,200
