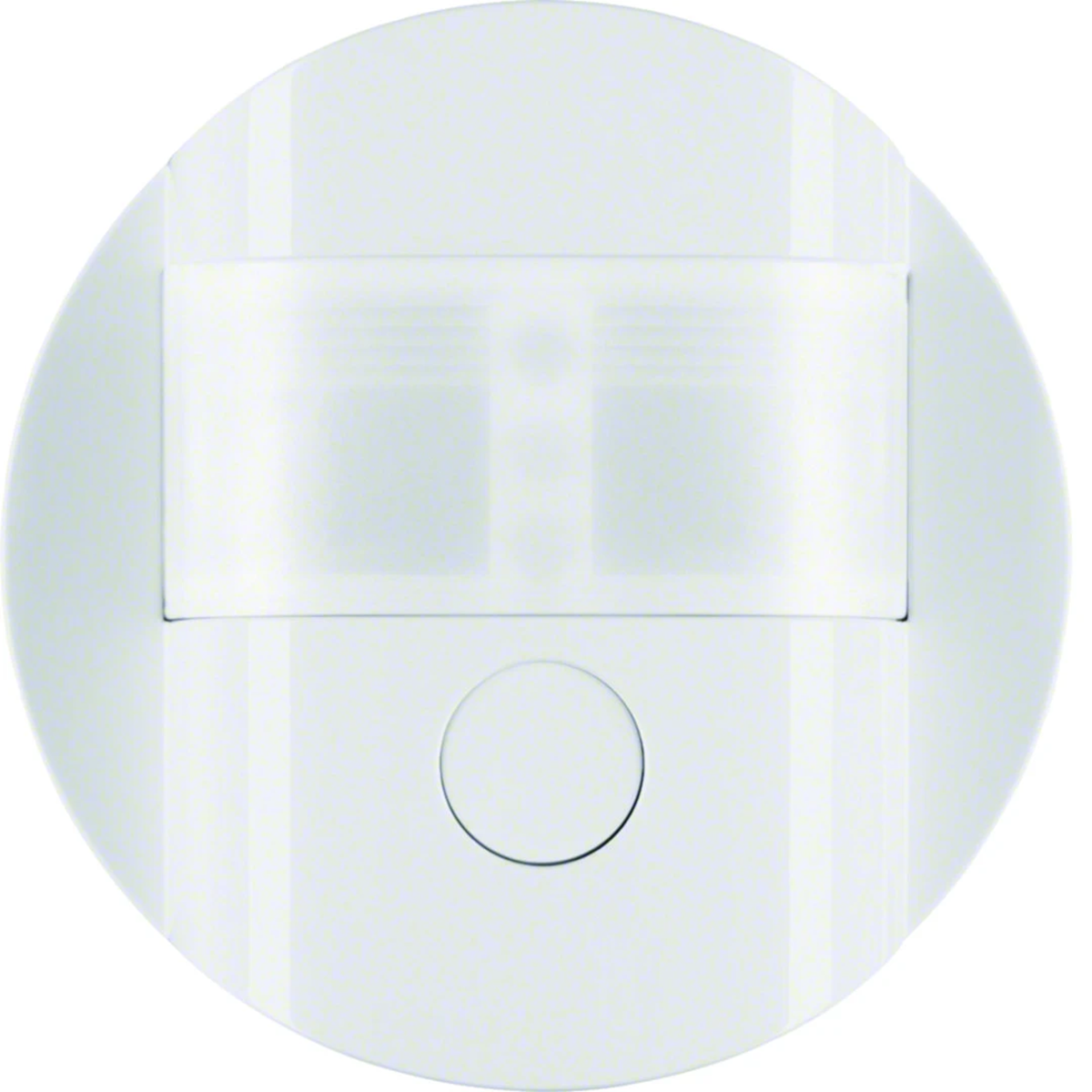

R.1/R.3 Motion sensor cap 1.1m white gloss

Click on the photo to enlarge

BERKER

R.1/R.3 Motion sensor cap 1.1m white gloss 85341139

Name: R.1/R.3 Motion sensor cap 1.1m white gloss
Brand: BERKER
SKU: MAP366BERK
Price: 104.19 PLN

local index:

MAP366BERK

Catalog No:

85341139

EAN code:

4011334373902

Price:

104,19 €

gross / pcs.

including VAT 23%

Availability:

up to 4 weeks (business days)

Delivery:

From 3,45 € (prepaid courier) Details

Quantity:

Goods at a promotional price can only be purchased in the quantity available in stock

pcs.

Delivery methods:

details

Payment methods:

details

Go to section:

Product description Technical data

Product description

Motion sensor cap from the Berker R.1/R.3 series.

Features:

microprocessor control
function of programming the lighting intensity level activated by means of a button
with a button lock
"party" function activated on 2 hours
with presence simulation memory

Controls and indicators:

with button on/off/auto

LED control:

with red/green/orange operation and status LEDs
Tip and mechanism compatibility LED indicator

Report an error

Technical data

Detection angle [°]

45-90
Shape

Round
Installation

Flush-mounted
Type

For the motion sensor
Level of security

IP20
Accurate color

Snow white
Operation brightness level [%]

10 - 100
Lateral range [m]

≈ 8
For modular equipment

Not applicable

Color

White
Material

Plastic
Detection field

12x16
Family

R.1 R.3 R.8
Operating temperature range [°C]

from -5 to 45
Number of detection planes

3
Relative humidity (no condensation) [%]

0 - 65 (non-condensing)
Straight range [m]

≈ 12

Other technical data

Model

Movement sensor
Constant light control

no
Networkable

yes
Creep-under protection

no
Max. reach sideways

8 m
Diameter reach on floor

0 m
Response value luminosity adjustable

yes
Dim function with dimmer basic element

yes
Staircase light controller

no
Material quality

Thermoplastic
Suitable for degree of protection (IP)

IP20
Min. switch-on time

180 s
Switch-off delay self-learning

no
Colour

White

Mounting method

Flush-mounted
HVAC-control

yes
Suitable for wireless transmission

no
Mounting height

1.1 m
Max. reach frontally

12 m
Response value sensitivity adjustable

yes
Teach-function for response value luminosity

yes
Animal zone

no
Material

Plastic
Halogen free

yes
Operation mode switch

yes
Max. duty cycle

3 min
Detection angle horizontal

45 ... 90 °
RAL-number (similar)

9010
