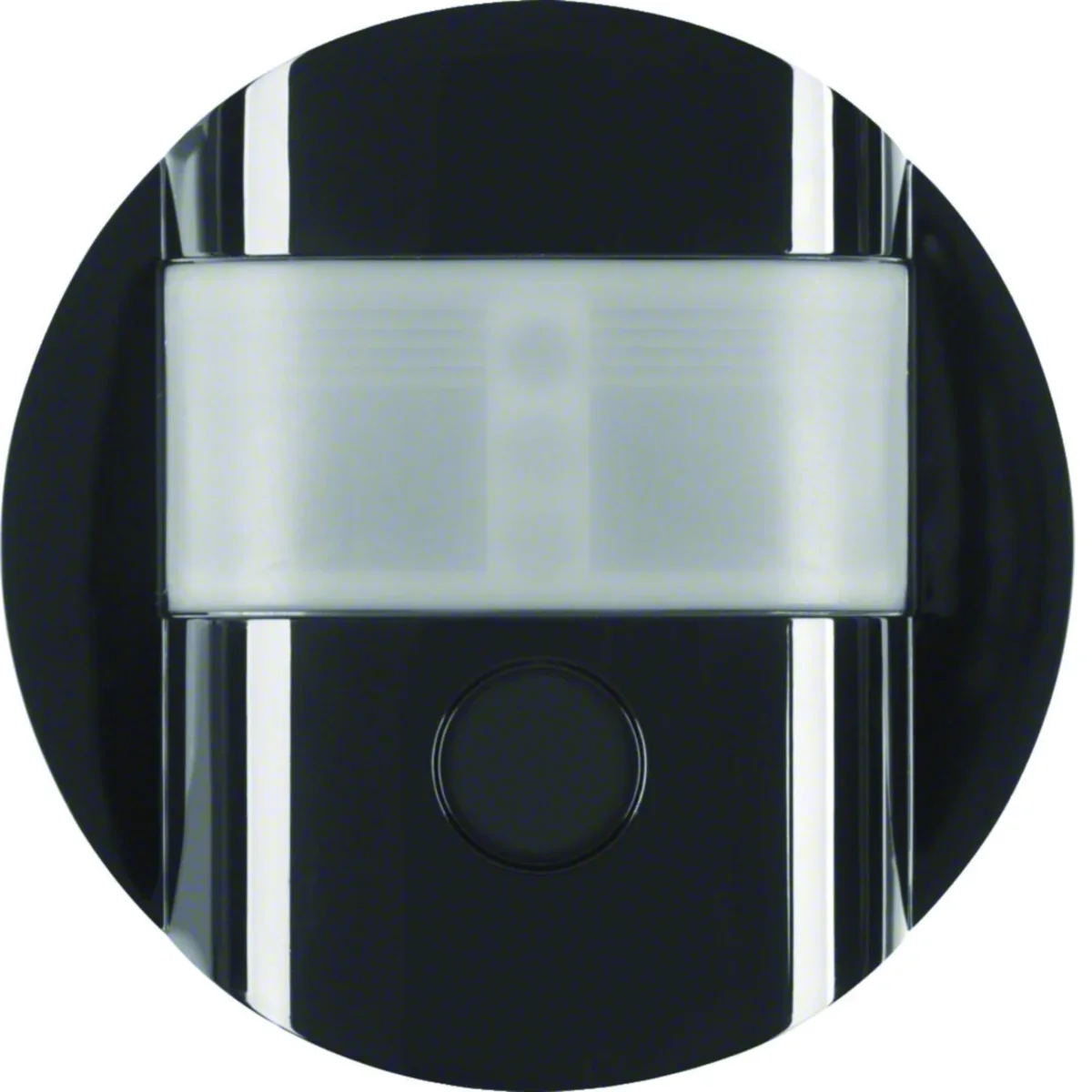

R.1/R.3 IR attachment of the motion sensor comfort 1.1m black gloss 85341231

local index:
MAP378BERK
Catalog No:
85341231
EAN code:
4011334373940
Manufacturer: BERKER
Detection angle [°]: 45-90
Color: Black
Shape: Round
Price:
180,29 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

IR attachment for motion sensor comfort from the Berker R.1/R.3 series.

Features:< /p>

  • microprocessor control
  • impulse operation with idle time (e.g. for stair lighting installations/with impulse switching)
  • function of programming the lighting intensity level activated by push button
  • with button lock
  • party function activated for 2 hours
  • with presence simulation memory function
< p> Controls and indicators:

  • with on/off/auto button

LED control :

  • with red/green/orange operation and status LEDs
  • socket and mechanism compatibility LED indicator

Technical data

  • Detection angle [°]
    45-90
  • Shape
    Round
  • Installation
    Flush-mounted
  • Type
    For the motion sensor
  • Level of security
    IP20
  • Number of detection planes
    3
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)
  • Straight range [m]
    ≈ 12
  • For modular equipment
    Not applicable
  • Color
    Black
  • Material
    Plastic
  • Detection field
    12x16
  • Family
    R.1 R.3 R.8
  • Operating temperature range [°C]
    from -5 to 45
  • Operation brightness level [%]
    10 - 100
  • Lateral range [m]
    ≈ 8
  • Delay time, adjustable
    ≈ 10 s - 30 min
  • PKWIU
    27.40.30.0

Other technical data

  • Model
    Movement sensor
  • HVAC-control
    Yes
  • Creep-under protection
    No
  • Optimum mounting height
    1.1 m
  • Bridging switch
    Yes
  • Suitable for wireless transmission
    Yes
  • Response value sensitivity adjustable
    Yes
  • Teach-function for response value luminosity
    Yes
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • RAL-number (similar)
    9005
  • Degree of protection (IP)
    IP20
  • Max. duty cycle
    30 min
  • Depth
    45 mm
  • Constant light control
    No
  • Animal zone
    No
  • Networkable
    Yes
  • Staircase light controller
    Yes
  • Diameter reach on floor
    0 m
  • With remote control
    No
  • Response value luminosity adjustable
    Yes
  • Dim function with dimmer basic element
    Yes
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • Colour
    Black
  • Transparent
    No
  • Min. switch-on time
    10 s
  • Temperature
    -5 ... 45 °C
  • Diameter
    57.6 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,071 0,096 3,721 139,062
Width (m) 0,058 0,084 0,300 0,800
Length (m) 0,045 0,070 0,225 1,050
Depth (m) 0,058 0,085 0,400 1,200
