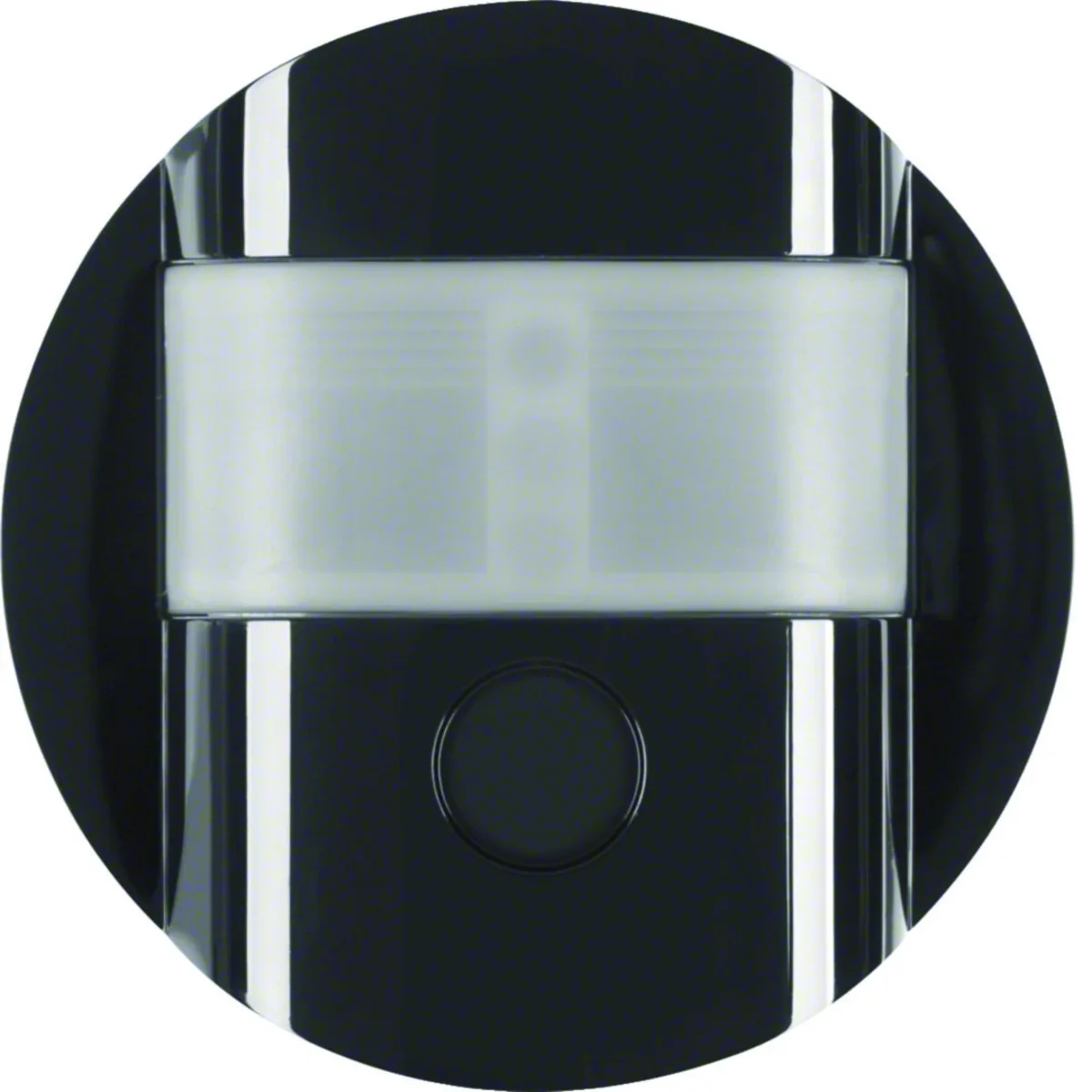

R.1/R.3 IR attachment of the comfort motion sensor 2.2m black gloss 85342231
local index:
MAP405BERK
Catalog No:
85342231
EAN code:
4011334374534
Price:
180,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
IR attachment for motion sensor comfort from the Berker R.1/R.3 series. Nominal mounting height is 2.2 m.
Features:
- microprocessor control
- pulse operation with time for idle lighting (e.g. for stair lighting installations/with impulse switching)
- function of programming the lighting intensity level activation activated by means of a button
- with a button lock
- function “party” activated for 2 hours
- with memory function to simulate presence
Controls and indicators:
- with on/off/automatic button
LED control:
- with red/green operation and status LEDs /orange
- cap and mechanism compatibility LED indicator
Technical data
-
Detection angle [°]45-90
-
ShapeRound
-
InstallationFlush-mounted
-
TypeFor the motion sensor
-
Level of securityIP20
-
Surface finishShiny
-
Operation brightness level [%]10 - 100
-
Lateral range [m]≈ 6
-
Delay time, adjustable≈ 10 s - 30 min
-
PKWIU27.40.30.0
-
ColorBlack
-
MaterialPlastic
-
Detection field8x12
-
FamilyR.1 R.3 R.8
-
Operating temperature range [°C]from -5 to 45
-
Number of detection planes3
-
Relative humidity (no condensation) [%]0 - 65 (non-condensing)
-
Straight range [m]≈ 8
-
For modular equipmentNot applicable
Other technical data
-
ModelMovement sensor
-
HVAC-controlYes
-
Creep-under protectionYes
-
Optimum mounting height2.2 m
-
Bridging switchYes
-
Suitable for wireless transmissionYes
-
Response value sensitivity adjustableYes
-
Teach-function for response value luminosityYes
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
RAL-number (similar)9005
-
Degree of protection (IP)IP20
-
Max. duty cycle30 min
-
Depth45 mm
-
Constant light controlNo
-
Animal zoneNo
-
NetworkableYes
-
Staircase light controllerYes
-
Diameter reach on floor0 m
-
With remote controlNo
-
Response value luminosity adjustableYes
-
Dim function with dimmer basic elementYes
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
ColourBlack
-
TransparentNo
-
Min. switch-on time10 s
-
Temperature-5 ... 45 °C
-
Diameter57.6 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. | 1152 pcs. |
| Weight (kg) | 0,071 | 0,096 | 3,721 | 139,062 |
| Width (m) | 0,058 | 0,084 | 0,300 | 0,800 |
| Length (m) | 0,045 | 0,070 | 0,225 | 1,050 |
| Depth (m) | 0,058 | 0,085 | 0,400 | 1,200 |
