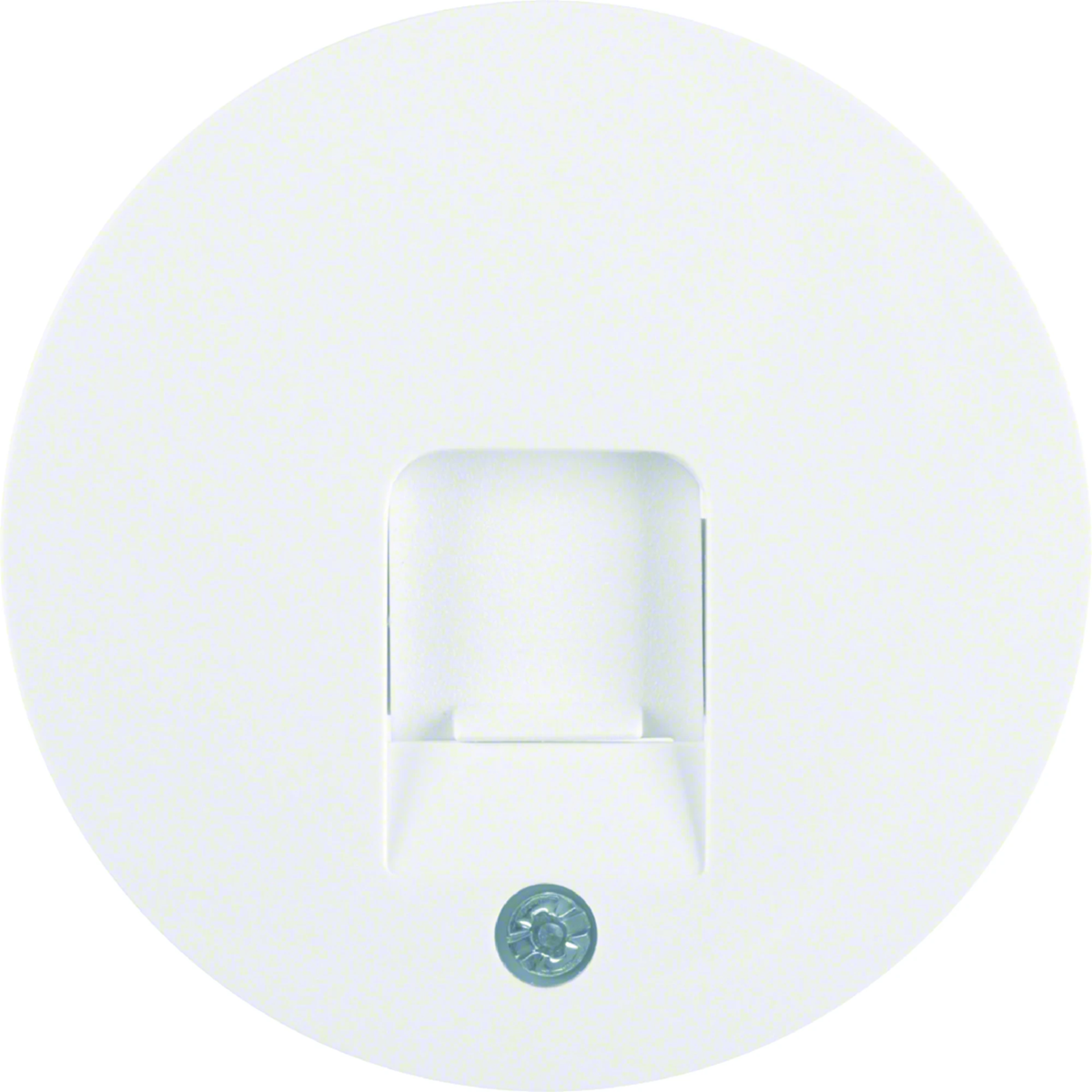

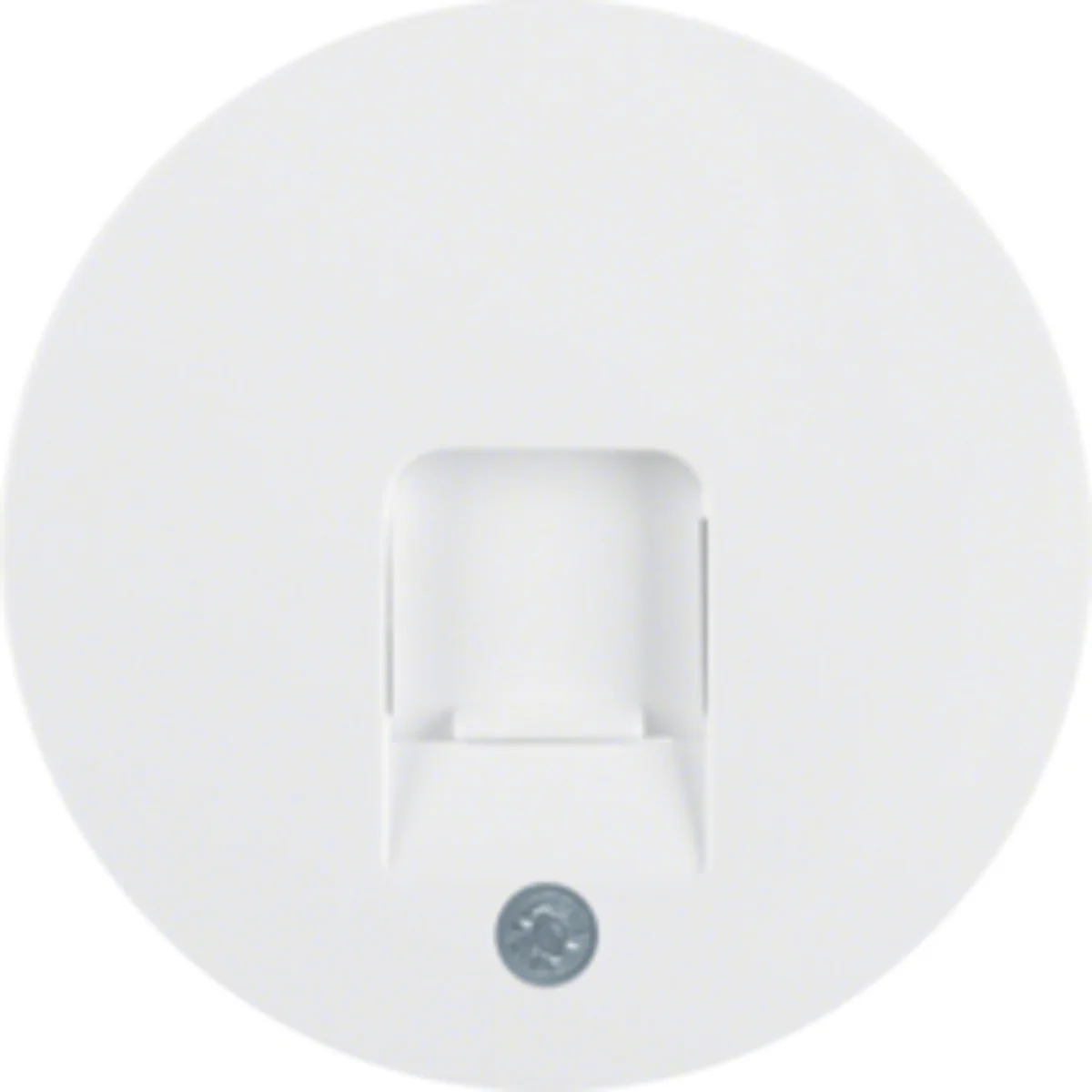

R.1/R.3 Face plate with dust cover, white 11702089

local index:
MAP078BERK
Catalog No:
11702089
EAN code:
4011334367116
Manufacturer: BERKER
Color: White
Shape: Round
Material: Plastic
Price:
11,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Front plate with dust cover, Berker R.1/R.3 series, with the following features:

  • Application: Communication technology,
  • Mounting type: KNX - Berker R.1/R.3/Serie 1930/R.classic,
  • With 6 mm high inscription field,
  • For single carrier plates with colored fixing elements,
  • Surface colour: glossy white,
  • For product number: 45400..

Technical data

  • Color
    White
  • Material
    Plastic
  • Family
    R.1 R.3
  • Accurate color
    Snow white
  • PKWIU
    27.12.40.0
  • Shape
    Round
  • Type
    To the internet socket To the telephone socket
  • Surface finish
    Shiny
  • For modular equipment
    Not applicable

Other technical data

  • Assembly arrangement
    Central cover plate
  • Support ring
    No
  • With hinged lid
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Number of modules (module system)
    1
  • Suitable for number of connectors
    1
  • Luster terminal
    No
  • Device width
    58.1 mm
  • Device depth
    16 mm
  • Utilization
    Modular Jack
  • With dust cover
    Yes
  • Imprintable label
    Without indication field
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9010
  • Type of fastening
    Mounting with screw
  • With buses/couplings
    No
  • With strain relief
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    58.1 mm
  • Min. depth of built-in installation box
    0 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 300 pcs. 9600 pcs.
Weight (kg) 0,009 0,130 4,320 161,240
Width (m) 0,058 0,085 0,300 0,800
Length (m) 0,016 0,070 0,225 1,050
Depth (m) 0,058 0,125 0,400 1,200
