R.1 SCHUKO socket white 47232089

local index:

MEE063BERK

Catalog No:

47232089

EAN code:

4011334366874

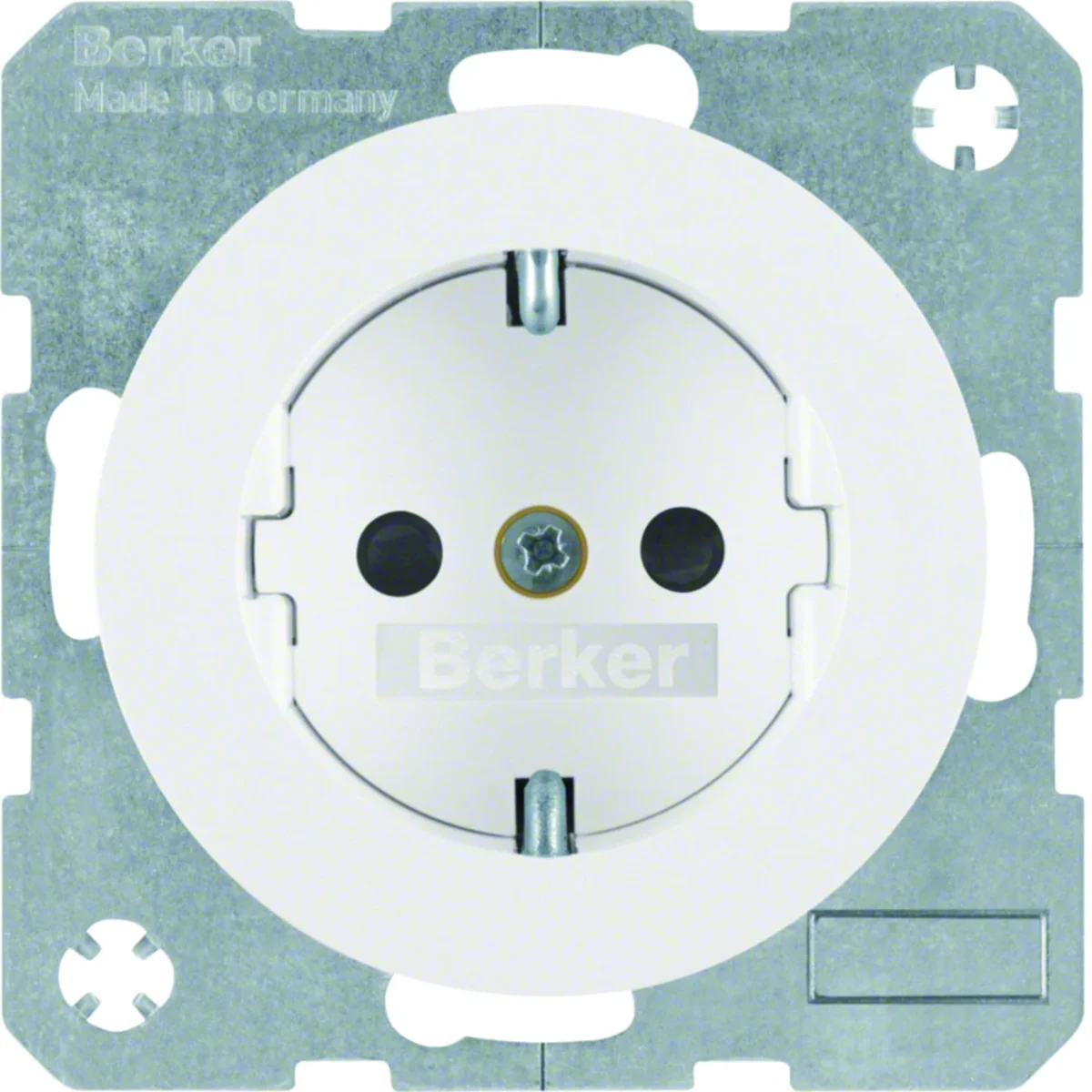

R.1 SCHUKO socket white

R.1 SCHUKO socket white

Click on the photo to enlarge

Manufacturer: BERKER

Number of sockets: 1

Color: White

Shape: Round

See full description

Price:

12,20 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

1

)

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Socket with earthing, from the Berker R.1/R.3 series, i.e. simple forms enclosed in high-quality metal, which will work in modern interiors.< /p>

Connection:

with plug-in terminals.

Installation / Mounting:

with expansion lugs.

Technical data

Number of sockets

1
Shape

Round
Fixing

Expanding claws
Rated voltage [V]

230
Type

Electric
Level of security

IP20
Ground

schuko
Surface finish

Shiny
Mounting depth [mm]

32
Standard

European
On the DATA key

NO
Exact material

Thermoplastic

Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

16
Family

R.1 R.3 R.8
Type

Flush-mounted
Degree of mechanical protection

IK05
Backlight

NO
Terminal type

Threadless
Shutters of current paths

Yes
For the frame system

Yes
PKWIU

27.33.13.0

Other technical data

Model

Protective contact CEE 7/3 / CEE 7/4 (type F)
Okrągły styk ochronny

No
Number of active contacts (flat)

0
With built-in USB power supply

No
Number of socket outlets switchable

0
Connection type

Push-in clamp
With enhanced contact protection

Yes
Colour

White
Transparent

No
Eject-mechanism

No
With function lighting

No
Over voltage protection

No
With miniature fuse

No
Mounting method

Flush-mounted
Material

Plastic
Surface protection

Untreated
Anti-bacterial treatment

No
With loop through function

No
Nominal current

16 A
Frequency

50 ... 60 Hz
Impact strength

IK05
Device height

71 mm
Min. depth of built-in installation box

31 mm

Protective contact

Yes
Number of active contacts (round)

2
With signal lamp

No
Number of units

1
Number of phases

1
With hinged lid

No
Label space/information surface

No
RAL-number (similar)

9010
Lockable

No
Insulated mounting

Yes
With orientation lighting

No
Fault current protection

No
Special power supply

No special power supply
Type of fastening

Mounting with claw
Halogen free

Yes
Surface finishing

Glossy
With on/off switch

No
Rotated central insert

No
Nominal voltage

250 V
Suitable for degree of protection (IP)

IP20
Device width

71 mm
Device depth

40.8 mm

Manufacturer details

Manufacturer

BERKER POLSKA SP. Z O.O.
Address

62-035 UL. ŚREDZKA 19
E-mail

renata.rozwadowska@berker.pl
Tax identification number

7781027605

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	10 pcs.	40 pcs.	1280 pcs.
Weight (kg)	0,076	0,845	3,833	142,659
Width (m)	0,071	0,160	0,300	0,800
Length (m)	0,041	0,069	0,225	1,050
Depth (m)	0,071	0,385	0,400	1,200
