R.1 Double frame slate/white 10122389
local index:
MAR111BERK
Catalog No:
10122389
EAN code:
4011334412786
Price:
86,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

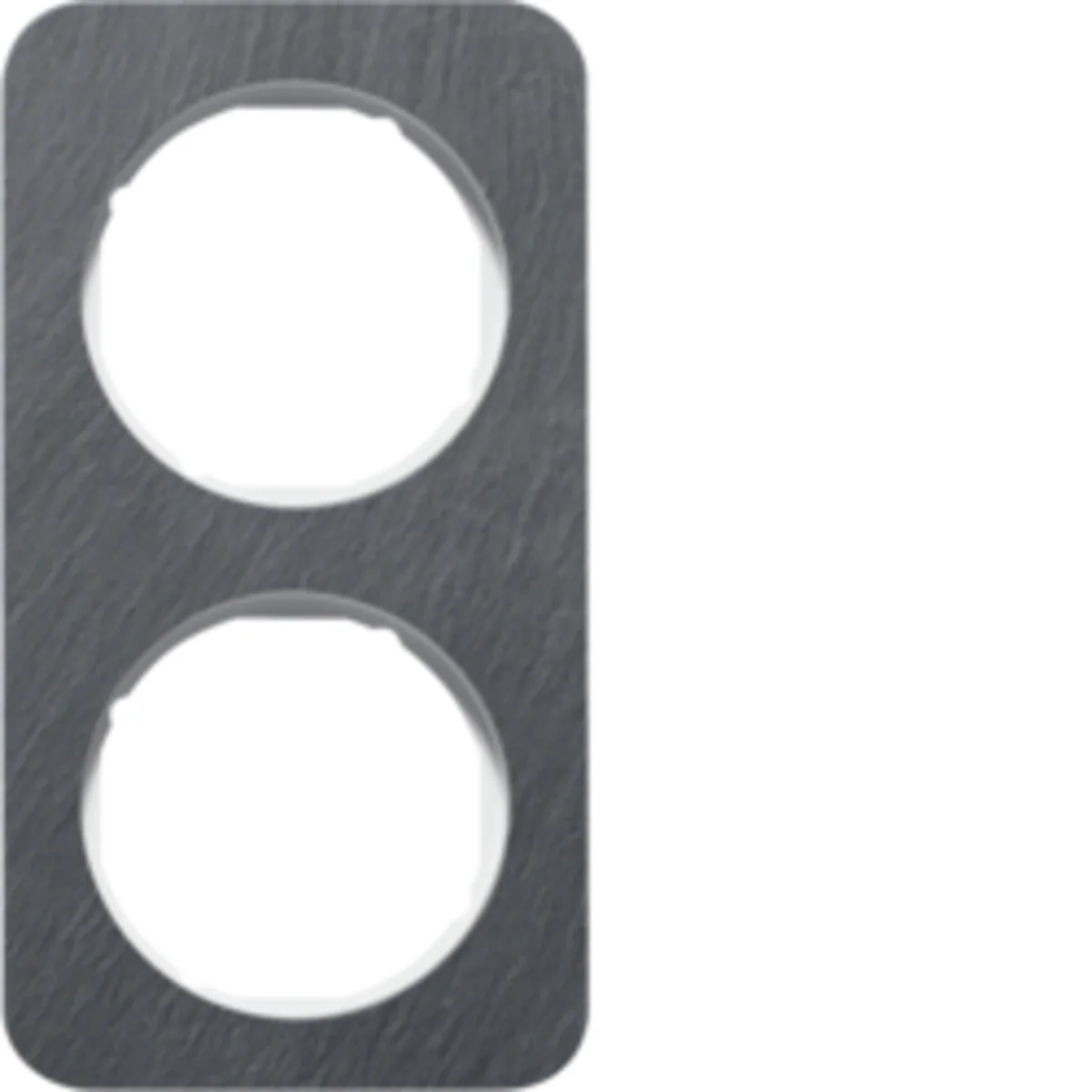

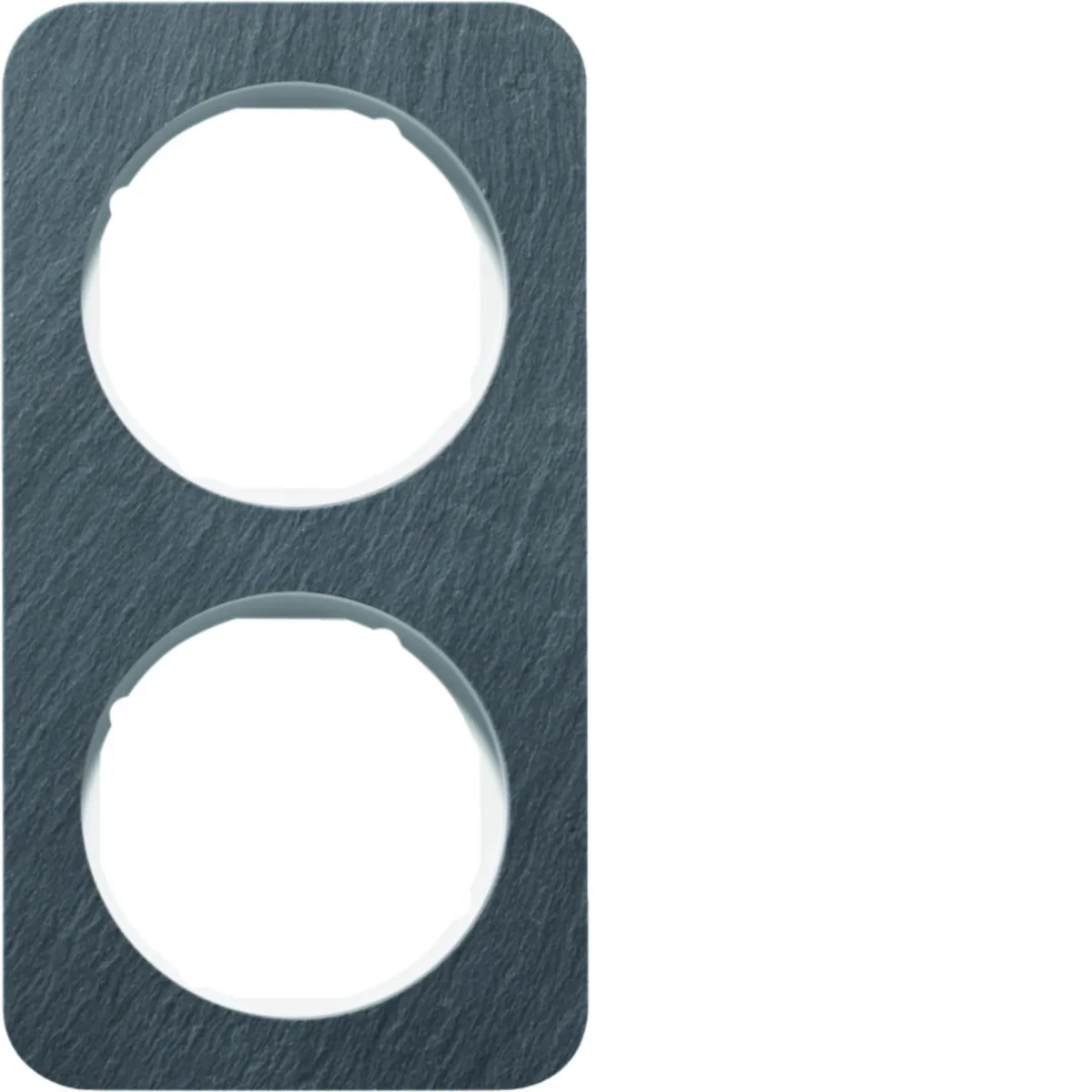

Double frame from the R.1 series from Berker. The product catalog number is 10122389.
- The surface material may change color due to UV radiation.
- Natural product made of a porous material that is not resistant to grease and contamination.
- Mounting possible only on a level surface. Cover screws must only be tightened by hand.
- Not suitable for waterproof IP44 flush-mounted installation.
- Natural material with an individual character enhanced by natural structure and different material thicknesses and colours.
- Natural untreated surface structure.
SERIES DESCRIPTION
Berker R.1 seriesis combination of a round central element with a frame with subtle roundings.
Technical data
-
Depth [mm]9.9
-
ColorGraphite White
-
MaterialSlate
-
FamilyR.1
-
Width [mm]81.2
-
Surface finishShiny
-
Mounting directionUniversal
-
Exact materialNatural slate
-
PKWIU27.12.40.0
-
Number of modules2
-
ShapeRectangular
-
TypeStandard
-
Level of securityIP20
-
Height [mm]152.2
-
Accurate colorAnthracite
-
For modular equipmentNot applicable
-
The shape of the matching accessoryRound
Other technical data
-
Number of units2
-
Number of units horizontal2
-
Number of modules horizontal (module system)0
-
Liczba łączników2
-
Suitable for subfloor installation duct boxNo
-
Suitable for built-in installationYes
-
MaterialStone
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)7021
-
With hinged lidNo
-
Impact strengthIK05
-
Width81.2 mm
-
Depth9.9 mm
-
Built-in height0 mm
-
Mounting directionHorizontal and vertical
-
Number of units vertical2
-
Number of modules vertical (module system)0
-
With mounting gridNo
-
Suitable for wall ductYes
-
Label space/information surfaceNo
-
Material qualitySlate
-
Surface protectionOther
-
ColourAnthracite
-
TransparentNo
-
Degree of protection (IP)IP20
-
Type of fasteningClamp mounting
-
Height152.2 mm
-
Built-in width0 mm
-
Diameter bore hole (opening)52 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. | 1920 pcs. |
| Weight (kg) | 0,088 | 0,106 | 6,824 | 238,374 |
| Width (m) | 0,152 | 0,095 | 0,300 | 0,800 |
| Length (m) | 0,010 | 0,023 | 0,225 | 1,050 |
| Depth (m) | 0,081 | 0,168 | 0,400 | 1,200 |
