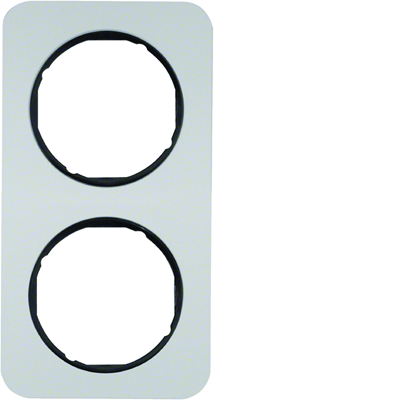

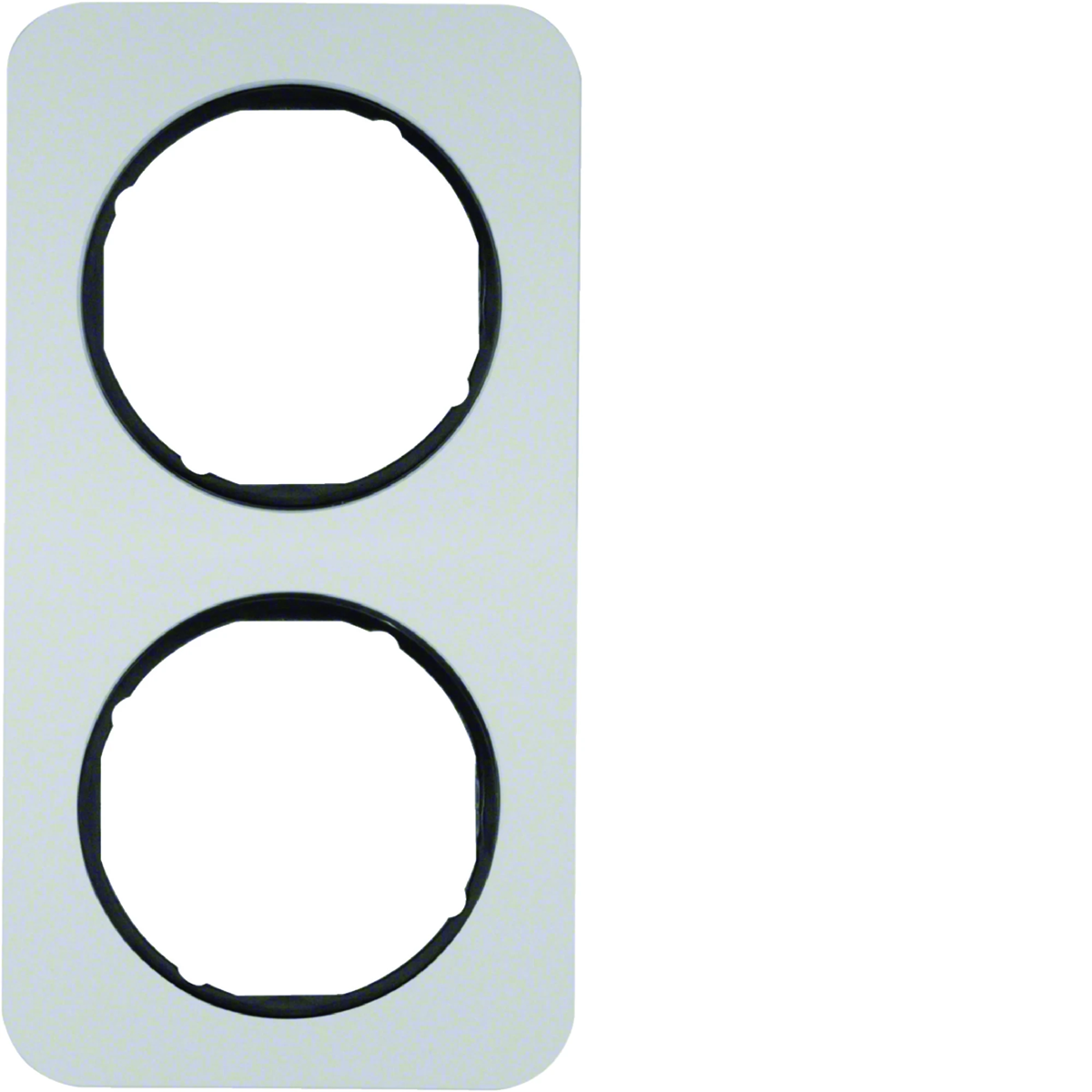

R.1 Aluminum/black double frame 10122184

local index:
MAR090BERK
Catalog No:
10122184
EAN code:
4011334392651
Manufacturer: BERKER
Depth [mm]: 9.9
Number of modules: 2
Color: silver | Black
Price:
65,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Double framefrom the R.1 series, from Berker. Product part number is 10122184.

  • IP44 protection when used with gasket kit order no. 1010 76 00 or 1011 77 00.

Technical data

  • Depth [mm]
    9.9
  • Color
    silver Black
  • Material
    Metal
  • Family
    R.1
  • Width [mm]
    80.7
  • Surface protection
    Natural
  • Accurate color
    Aluminum
  • For modular equipment
    Not applicable
  • The shape of the matching accessory
    Round
  • Number of modules
    2
  • Shape
    Rectangular
  • Type
    Standard
  • Level of security
    IP20
  • Height [mm]
    152.2
  • Surface finish
    matte
  • Mounting direction
    Universal
  • Exact material
    Aluminum
  • PKWIU
    27.12.40.0

Other technical data

  • Number of units
    2
  • Number of units horizontal
    2
  • Number of modules horizontal (module system)
    0
  • Liczba łączników
    2
  • Suitable for subfloor installation duct box
    No
  • Suitable for built-in installation
    Yes
  • Material
    Metal
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9006
  • With hinged lid
    No
  • Impact strength
    IK05
  • Width
    80.7 mm
  • Depth
    9.9 mm
  • Built-in height
    0 mm
  • Mounting direction
    Horizontal and vertical
  • Number of units vertical
    2
  • Number of modules vertical (module system)
    0
  • With mounting grid
    No
  • Suitable for wall duct
    Yes
  • Label space/information surface
    No
  • Material quality
    Aluminium
  • Surface protection
    Untreated
  • Colour
    Aluminium
  • Transparent
    No
  • Degree of protection (IP)
    IP20
  • Type of fastening
    Clamp mounting
  • Height
    152.2 mm
  • Built-in width
    0 mm
  • Diameter bore hole (opening)
    52 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 100 pcs. 3200 pcs.
Weight (kg) 0,077 0,829 8,732 299,424
Width (m) 0,152 0,103 0,300 0,800
Length (m) 0,010 0,098 0,225 1,050
Depth (m) 0,081 0,160 0,400 1,200
