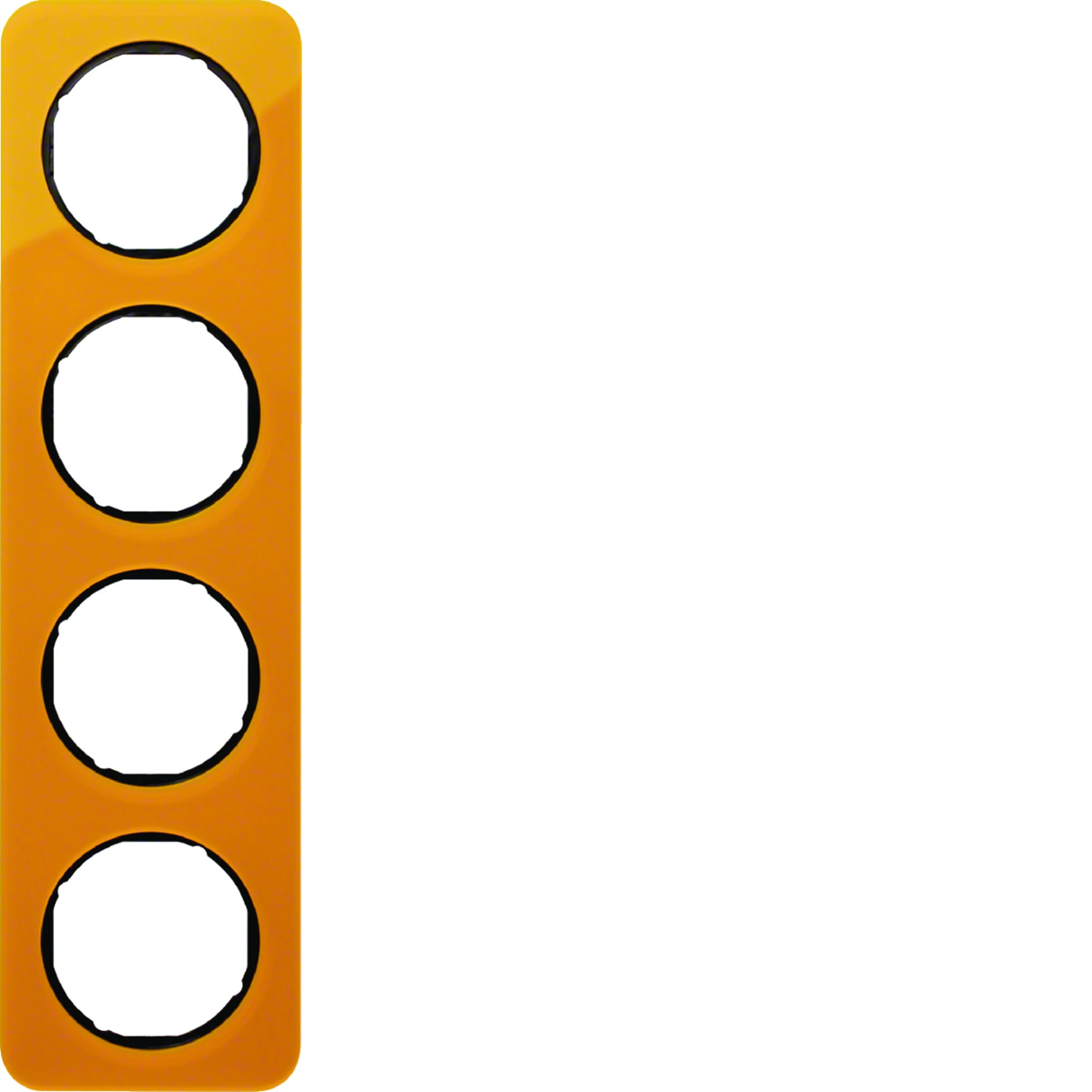

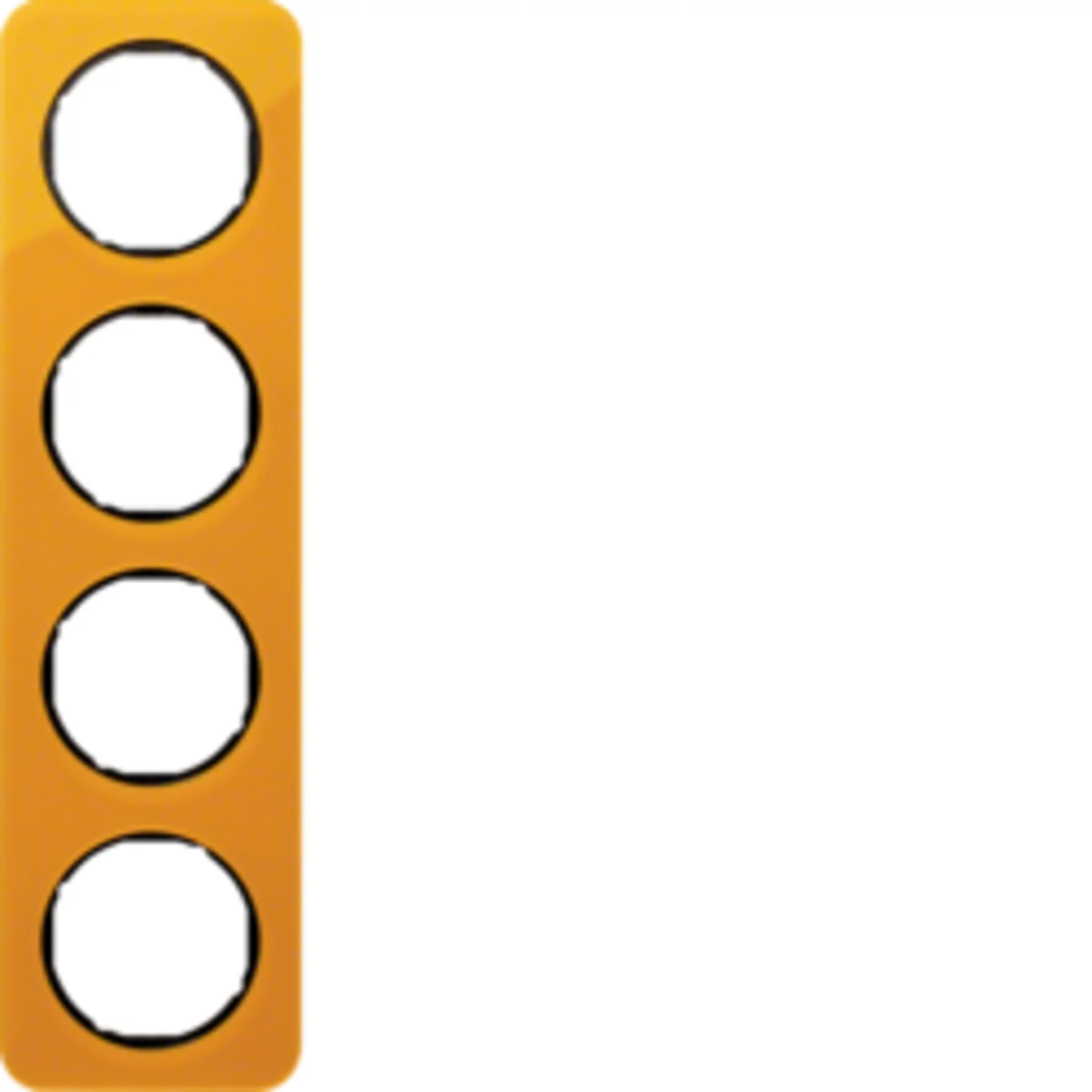

R.1 4-gang clear acrylic orange/black frame 10142334

local index:
MAR235BERK
Catalog No:
10142334
EAN code:
4011334400080
Manufacturer: BERKER
Depth [mm]: 9.9
Number of modules: 4
Color: Orange | Black
Price:
96,91 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

4-gang frame from the R.1 series from the manufacturer Berker. The product part number is 10142334.

  • Not suitable for IP44 waterproof flush-mounted installation.
  • Clamp mount.



SERIES DESCRIPTION

The Berker R.1 seriesis a combination of a round central element with a frame with subtle roundings.

Technical data

  • Depth [mm]
    9.9
  • Color
    Orange Black
  • Material
    Acrylic
  • Family
    R.1
  • Width [mm]
    81.2
  • Surface protection
    Natural
  • Accurate color
    Orange transparent
  • For modular equipment
    Not applicable
  • PKWIU
    27.12.40.0
  • Number of modules
    4
  • Shape
    Rectangular
  • Type
    Standard
  • Level of security
    IP20
  • Height [mm]
    294.2
  • Surface finish
    Shiny
  • Mounting direction
    Universal
  • The shape of the matching accessory
    Round

Other technical data

  • Number of units
    4
  • Number of units horizontal
    4
  • Number of modules horizontal (module system)
    0
  • Liczba łączników
    4
  • Suitable for subfloor installation duct box
    No
  • Suitable for built-in installation
    Yes
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    2003
  • With hinged lid
    No
  • Impact strength
    IK05
  • Width
    81.2 mm
  • Depth
    9.9 mm
  • Built-in height
    0 mm
  • Mounting direction
    Horizontal and vertical
  • Number of units vertical
    4
  • Number of modules vertical (module system)
    0
  • With mounting grid
    No
  • Suitable for wall duct
    Yes
  • Label space/information surface
    No
  • Material quality
    Other
  • Surface protection
    Untreated
  • Colour
    Orange
  • Transparent
    No
  • Degree of protection (IP)
    IP20
  • Type of fastening
    Clamp mounting
  • Height
    294.2 mm
  • Built-in width
    0 mm
  • Diameter bore hole (opening)
    52 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 26 pcs. 832 pcs.
Weight (kg) 0,092 0,121 3,604 135,320
Width (m) 0,294 0,094 0,300 0,800
Length (m) 0,010 0,022 0,225 1,050
Depth (m) 0,081 0,308 0,400 1,200
