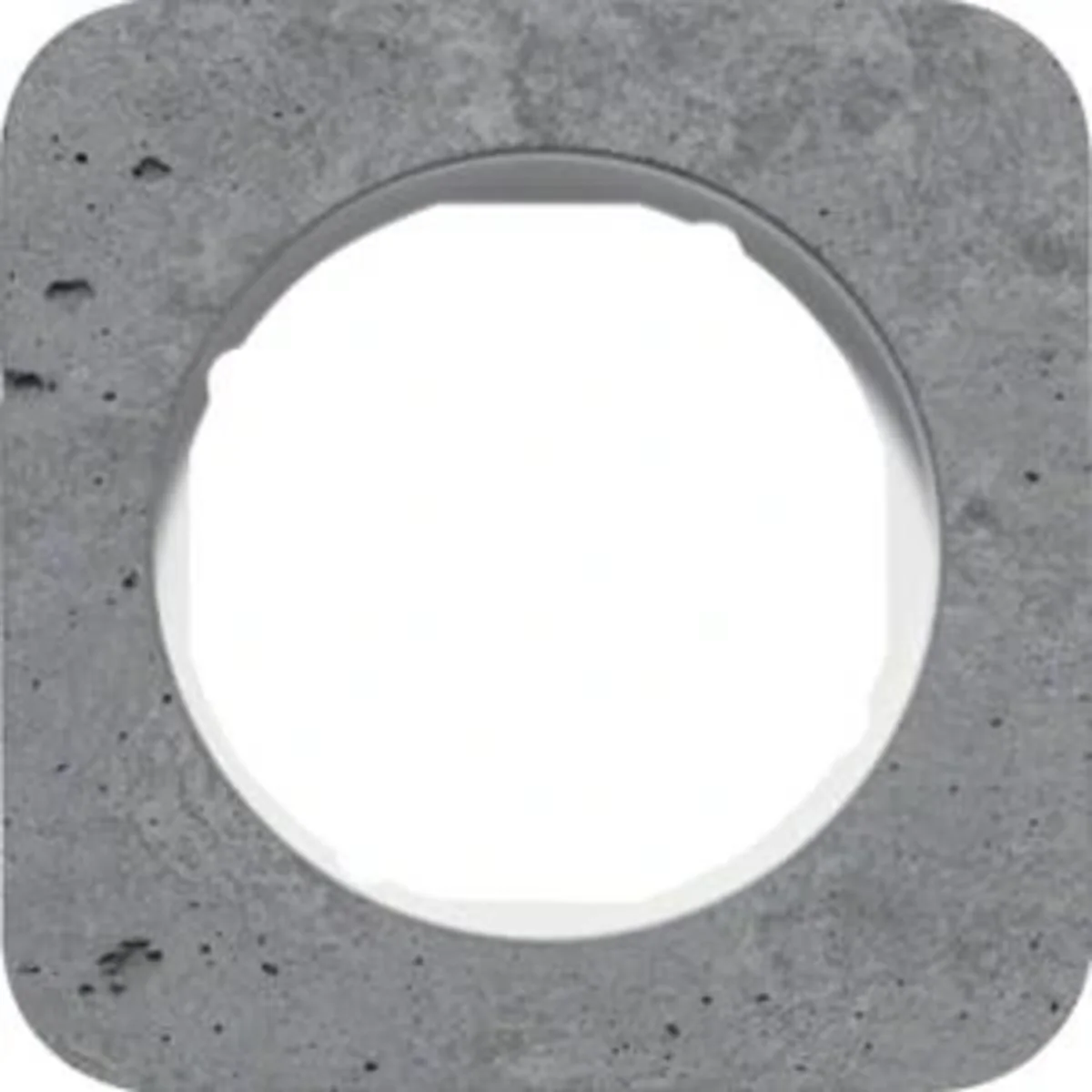

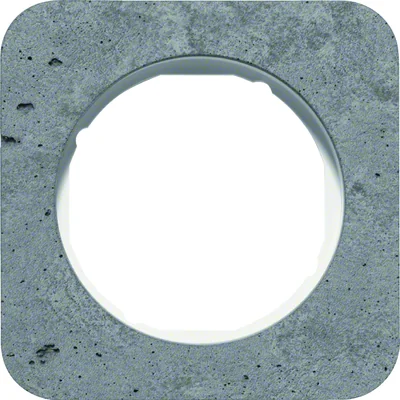

R.1 1-gang concrete/white frame 10112379

Indice locale:
MAR034BERK
Numero di catalogo:
10112379
Codice EAN:
4011334412861
Produttore: BERKER
Depth [mm]: 9.9
Number of modules: 1
Color: Gray | White
Prezzo:
64,49 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 4 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Single frame from the R.1 series from Berker. The product catalog number is 10112379.

  • The surface material may change color due to UV radiation.
  • Natural product made of porous material that is not resistant to grease and contamination.
  • Mounting possible only on a level surface. Cover screws must only be tightened by hand.
  • Not suitable for waterproof IP44 flush-mounted installation.
  • Natural material with an individual character enhanced by a varied structure and colors.
  • Surface smooth polished.



SERIES DESCRIPTION

The Berker R.1 series is a combination of a round central element with a frame with subtle roundings.

Dati tecnici

  • Depth [mm]
    9.9
  • Color
    Gray White
  • Material
    Concrete
  • Family
    R.1
  • Width [mm]
    81.2
  • Surface finish
    Shiny
  • For modular equipment
    Not applicable
  • The shape of the matching accessory
    Round
  • Number of modules
    1
  • Shape
    Square
  • Type
    Standard
  • Level of security
    IP20
  • Height [mm]
    81.2
  • Mounting direction
    Universal
  • Exact material
    Polished concrete
  • PKWIU
    27.12.40.0

Altri dati tecnici

  • Number of units
    1
  • Number of units horizontal
    1
  • Number of modules horizontal (module system)
    0
  • Liczba łączników
    1
  • Suitable for subfloor installation duct box
    No
  • Suitable for built-in installation
    Yes
  • Material
    Stone
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    7023
  • With hinged lid
    No
  • Impact strength
    IK05
  • Width
    81.2 mm
  • Depth
    9.9 mm
  • Built-in height
    0 mm
  • Mounting direction
    Horizontal and vertical
  • Number of units vertical
    1
  • Number of modules vertical (module system)
    0
  • With mounting grid
    No
  • Suitable for wall duct
    Yes
  • Label space/information surface
    No
  • Material quality
    Other
  • Surface protection
    Other
  • Colour
    Other
  • Transparent
    No
  • Degree of protection (IP)
    IP20
  • Type of fastening
    Clamp mounting
  • Height
    81.2 mm
  • Built-in width
    0 mm
  • Diameter bore hole (opening)
    52 mm

Dettagli del produttore

Imballaggio sfuso

Una specie di pacchetto Karton Pakiet Paleta
Quantità 1 pezzi 1 pezzi 60 pezzi 1920 pezzi
Peso (kg) 0,042 0,060 4,054 149,734
Larghezza (m) 0,081 0,095 0,300 0,800
Lunghezza (m) 0,010 0,023 0,225 1,050
Profondità (m) 0,081 0,168 0,400 1,200
