R-TV terminal socket for pass-through sockets (module) white BMZAK10/1.01/11

Name: R-TV terminal socket for pass-through sockets (module) white
Brand: KONTAKT-SIMON
SKU: MEA092KONT
Price: 17.65 PLN

local index:

MEA092KONT

Catalog No:

BMZAK10/1.01/11

EAN code:

5902787576356

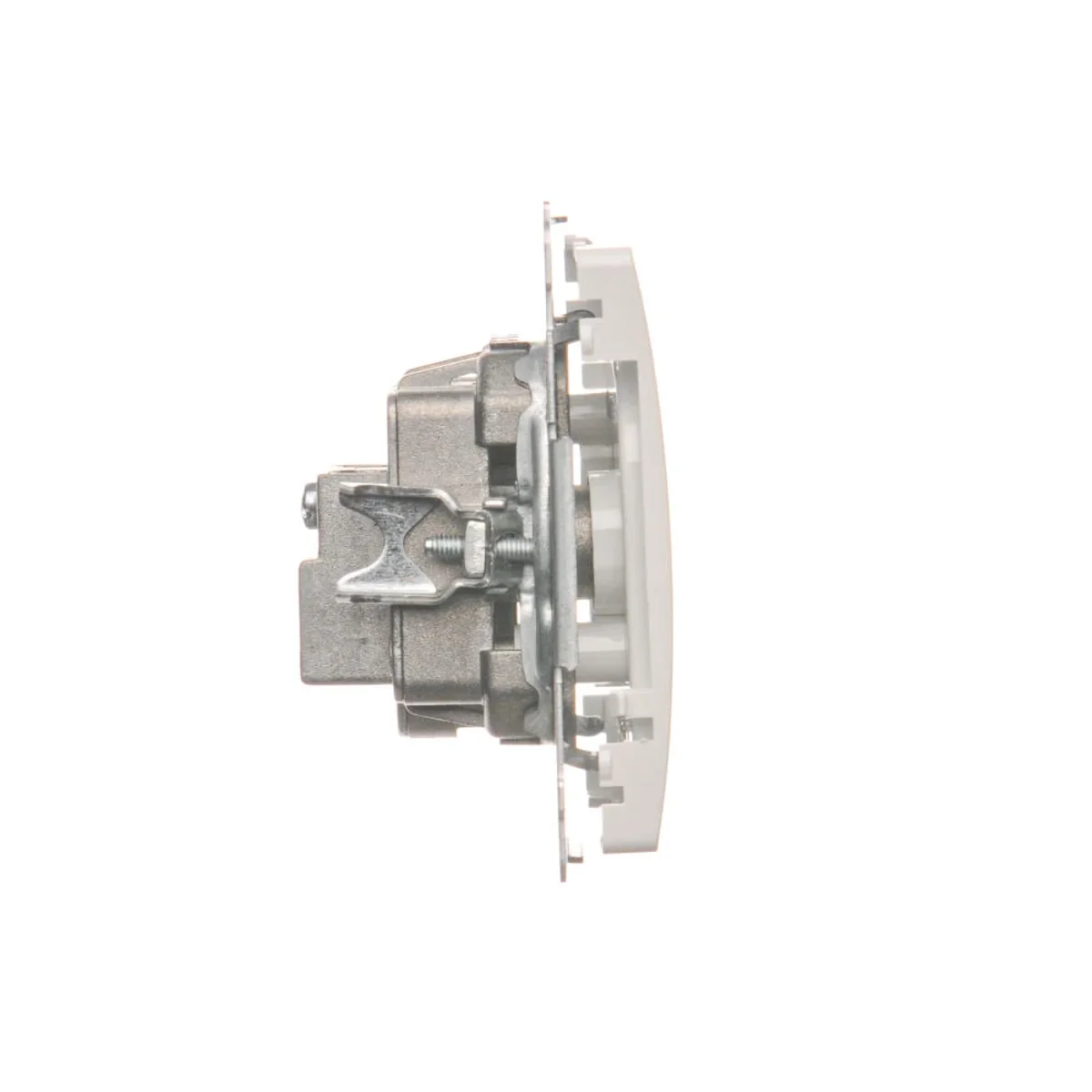

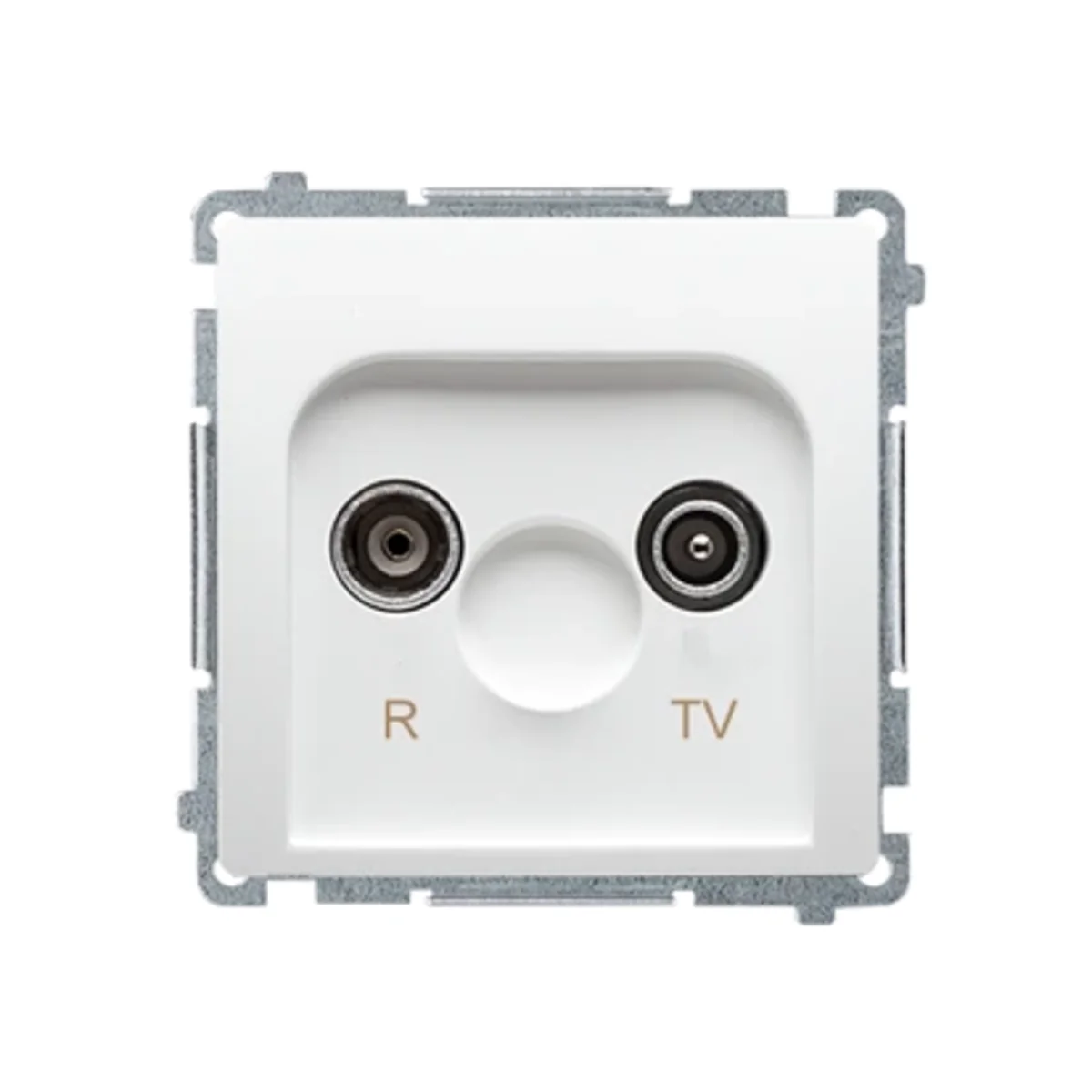

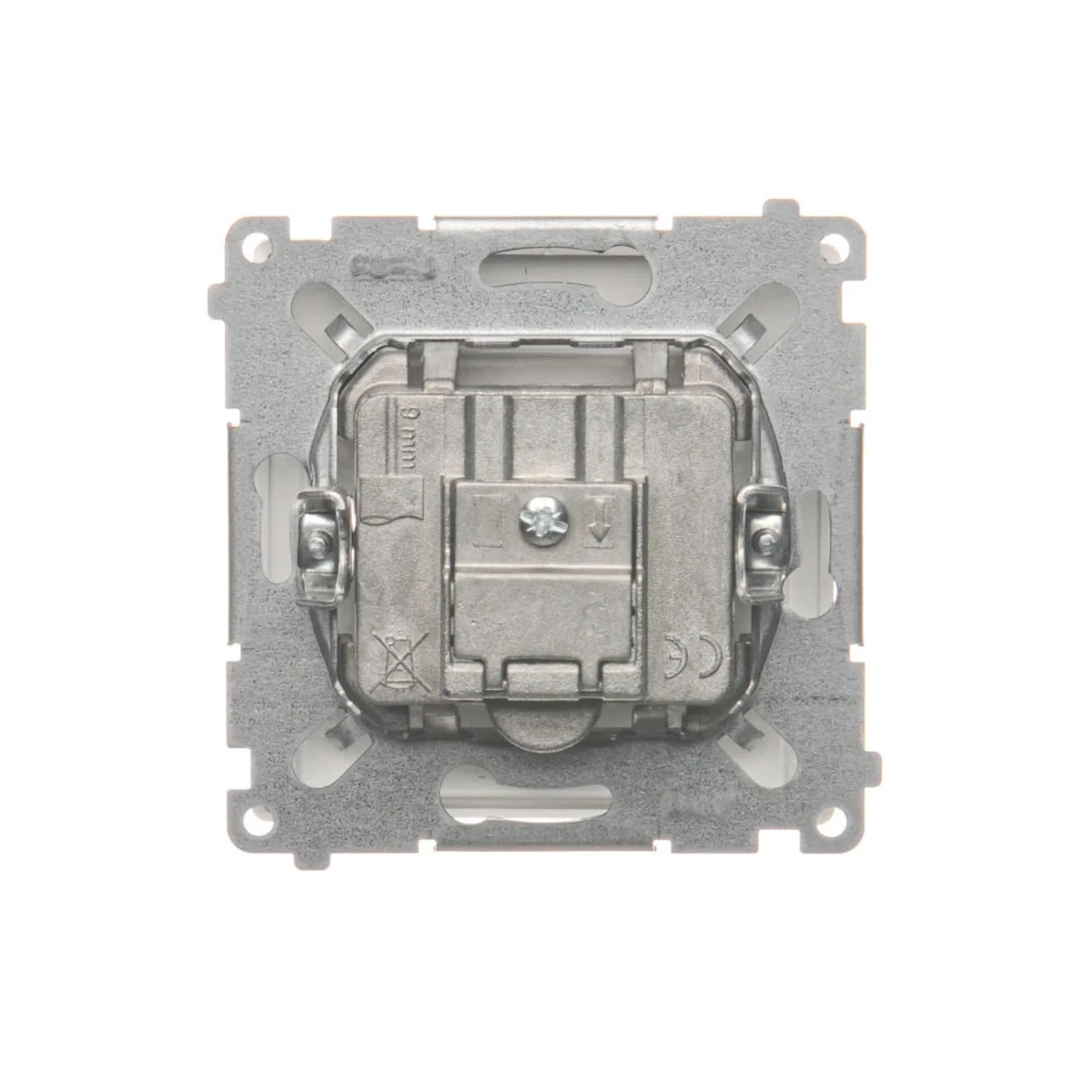

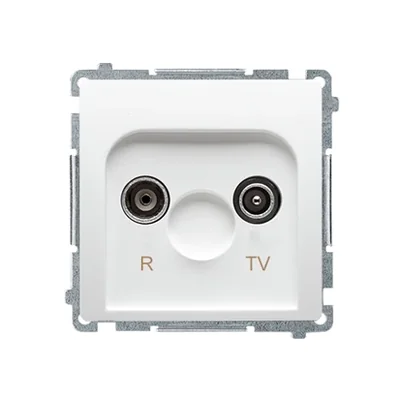

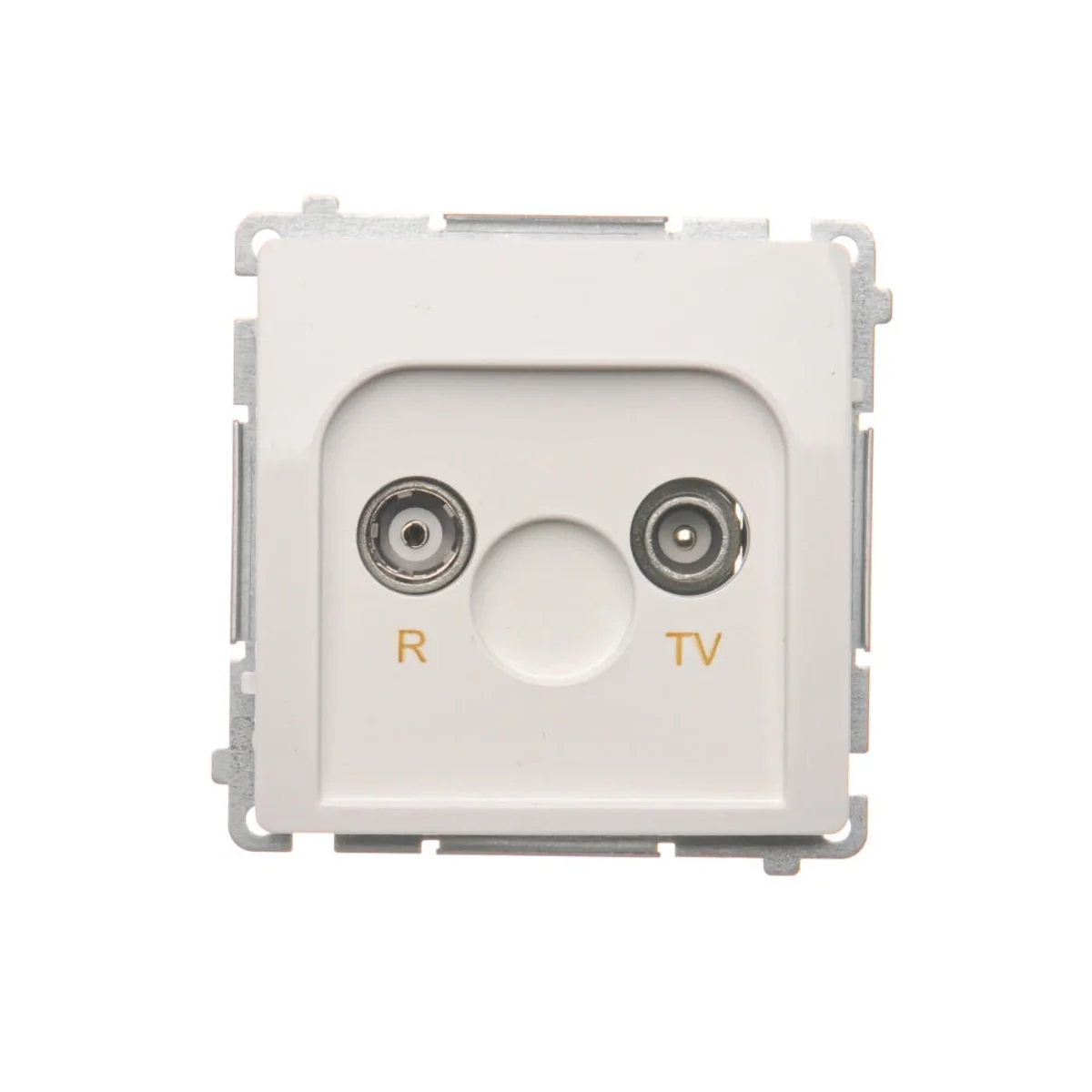

R-TV terminal socket for pass-through sockets (module) white

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 39

Number of sockets: 2

See full description

Price:

17,65 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Functionality and classic look are the hallmarks of the SIMON BASIC series, which will work in any space. It includes the antenna socket R-TV terminal for pass-through sockets.

Technical data

Halogen free

Yes
Number of sockets

2
Shape

Square
Fixing

claws Screws
Overprint

Yes
Family

SIMON BASIC
Width [mm]

75
Type

Flush-mounted
Height [mm]

75
Frequency Range [MHz]

5-862
Backlight

NO
Terminal type

Threaded
F-type input

NO
Exact material

PC

Depth [mm]

39
Color

White
Material

Plastic
Installation

Flush-mounted
Type

Antenna
Level of security

IP20
Attenuation [dB]

Connections for 860 MHz: 10
Version

Final
Surface protection

Natural
Surface finish

Shiny
Mounting depth [mm]

29
Variant

R TV
For the frame system

Yes
PKWIU

27.33.13.0

Other technical data

Model

Multimedia end box
Number of outlets

2
Frequency

5 ... 862 MHz

Tap loss at 860 MHz

10 dB
Suitable for remote power supply

No

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,095	0,095	1,043
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,044	0,230
Depth (m)	0,039	0,160	0,100
