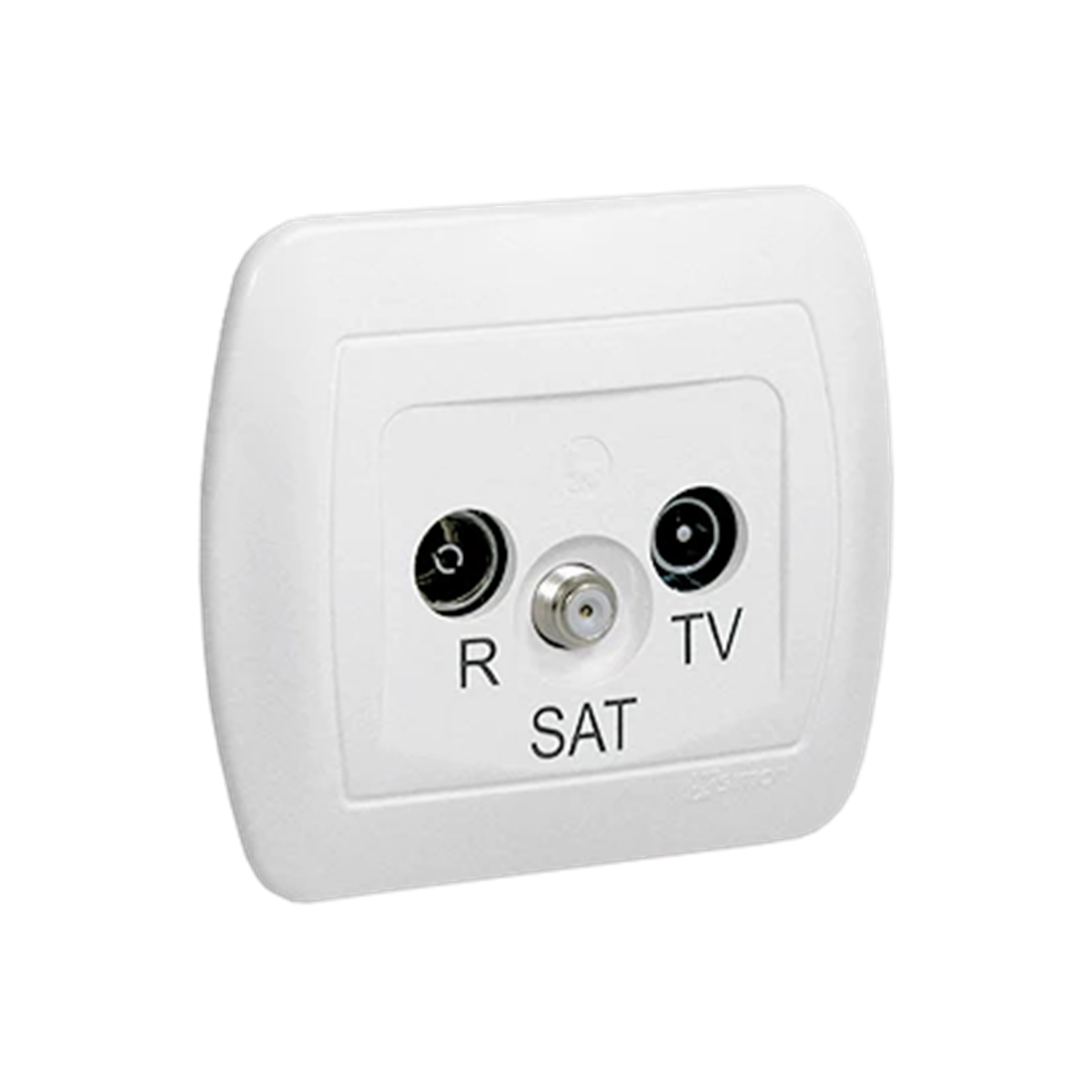

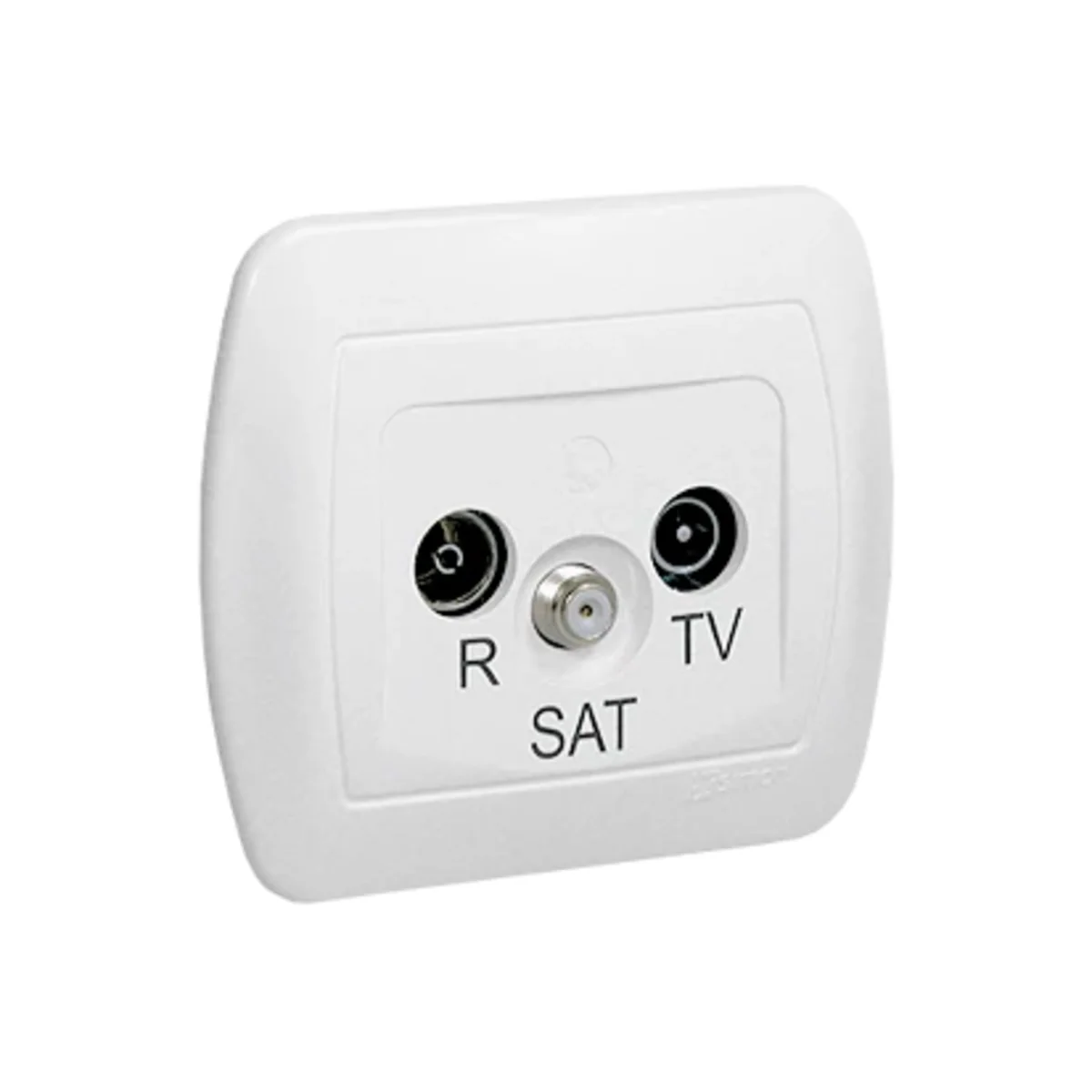

R-TV-SAT final antenna socket AAS/11
local index:
MEA220KONT
Catalog No:
AAS/11
EAN code:
5902787569891
Price:
21,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Antenna socket from the Chord series, from the manufacturer Contact Simon. The product catalog number is AAS/11.
FEATURES
- R-TV-SAT .
- Final/Ending.
- Frequency range 5-2400 MHz.
- Connection attenuation for 860 MHz:1 db.
- Through loss for 2400 MHz: 2 db .
- Screw terminals.
- Color white.
- R-TV-SAT imprint on the label .
- Ingress protection IP20.
- flush mounting.
< /p>
SERIES DESCRIPTION
The slightly longer line of the base and spine in relation to the sides and clearly rounded corners of the frames distinguish this series from others. Simon CHORD is a monoblock, i.e. non-frame series. Economical, but tasteful colors combined with a characteristic oval shape will appeal to customers who expect originality and minimalism from functional details. The antenna socket has all the features of this unique series.
Technical data
-
Halogen freeYes
-
Number of sockets3
-
ShapeRectangular
-
Fixingclaws Screws
-
OverprintYes
-
FamilySIMON CHORD
-
Width [mm]90
-
TypeFlush-mounted
-
Height [mm]80.5
-
Frequency Range [MHz]5-2400
-
BacklightNO
-
Terminal typeThreaded
-
F-type inputNO
-
SeparatedYes
-
PKWIU27.33.13.0
-
Depth [mm]41
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
TypeAntenna
-
Level of securityIP20
-
Attenuation [dB]Connections for 860 MHz: 1 Passthrough for 2400 MHz: 2
-
VersionFinal Final
-
Surface protectionNatural
-
Surface finishShiny
-
Mounting depth [mm]thirty
-
VariantR TV sat
-
For the frame systemNO
-
Exact materialPC
Other technical data
-
ModelEnd socket
-
Number of outlets3
-
Suitable for remote power supplyYes
-
Tap loss at 860 MHz1 dB
-
Through loss at 2150 MHz2 dB
-
Frequency5 ... 2400 MHz
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,122 | 0,122 | 1,305 |
| Width (m) | 0,080 | 0,110 | 0,190 |
| Length (m) | 0,090 | 0,046 | 0,230 |
| Depth (m) | 0,041 | 0,160 | 0,100 |
