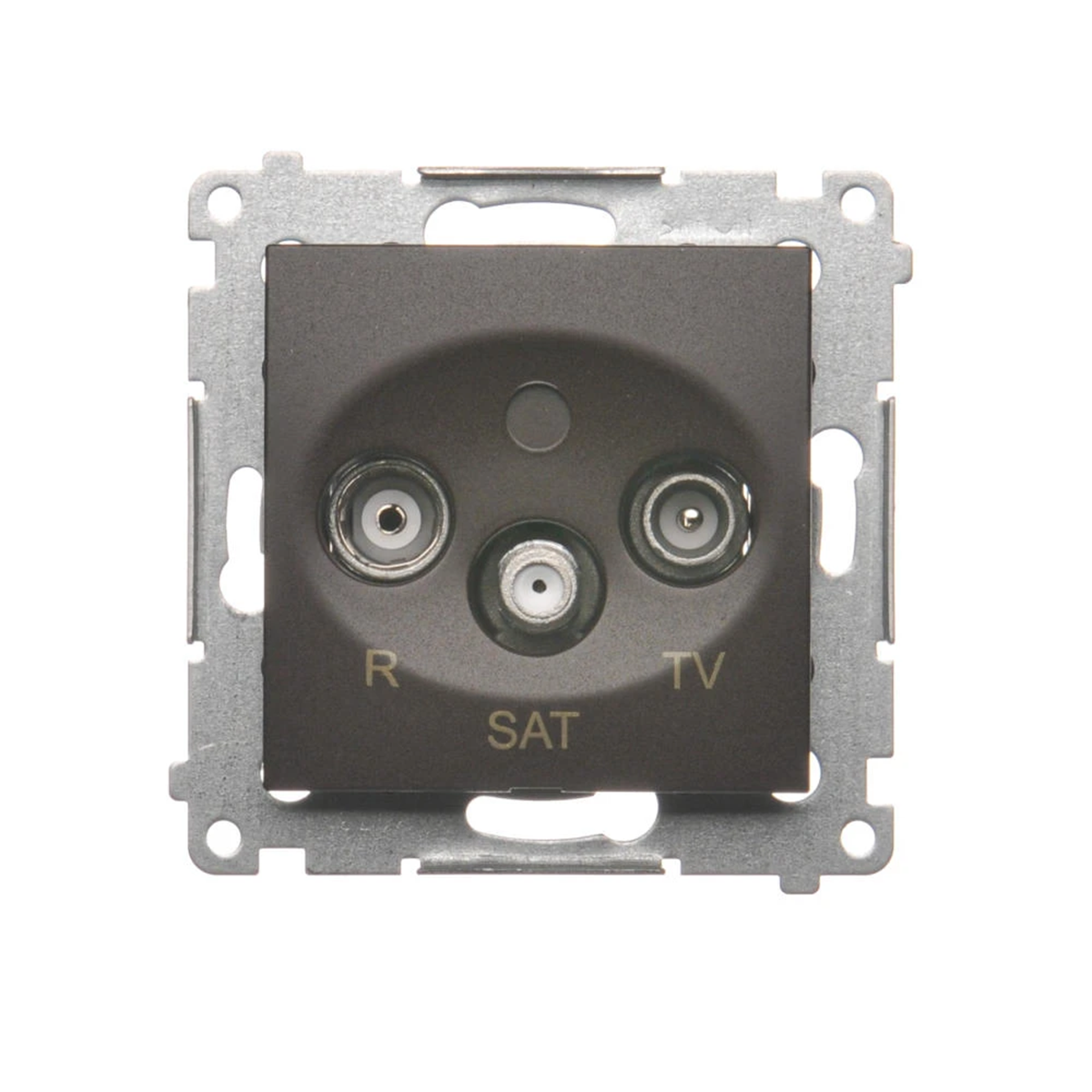

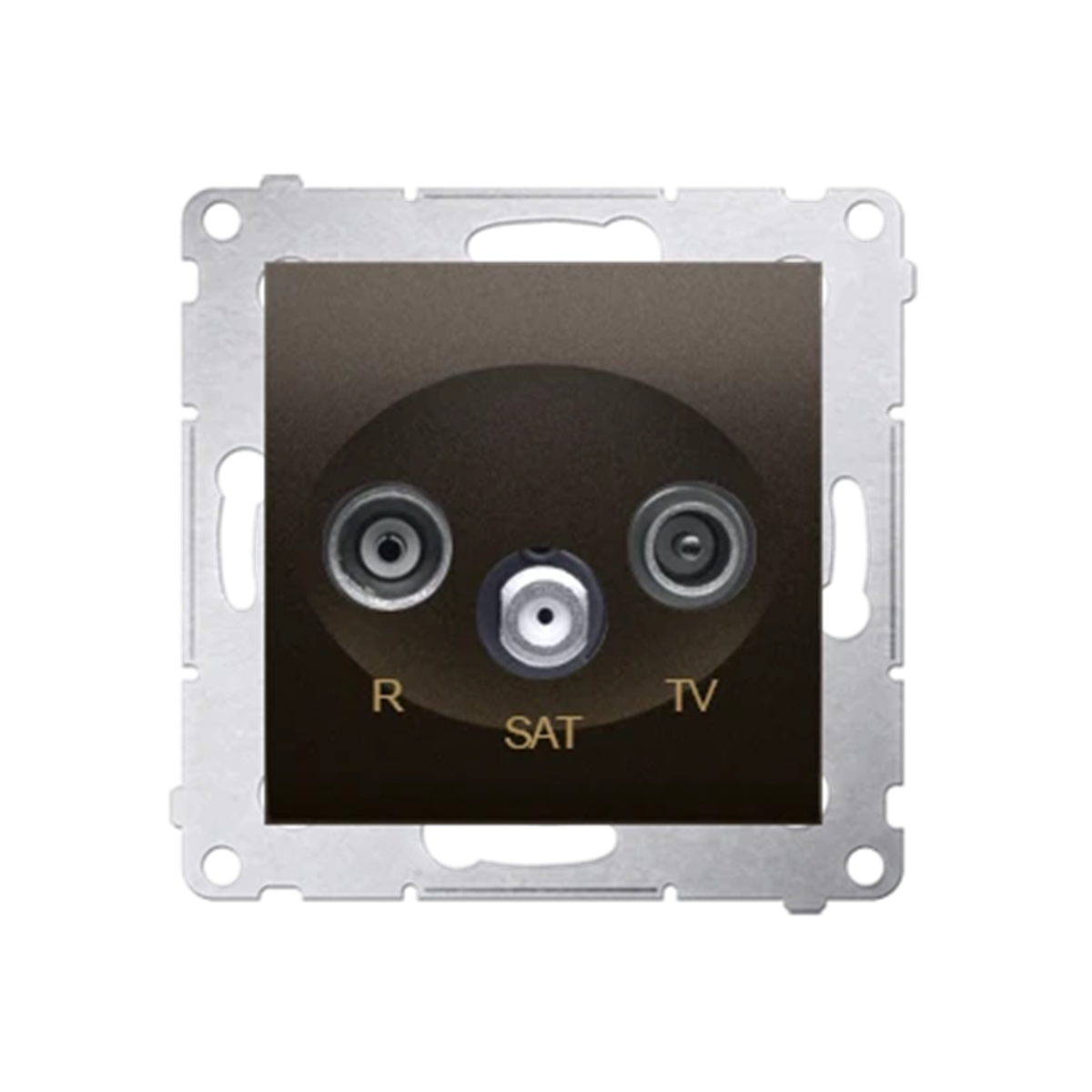

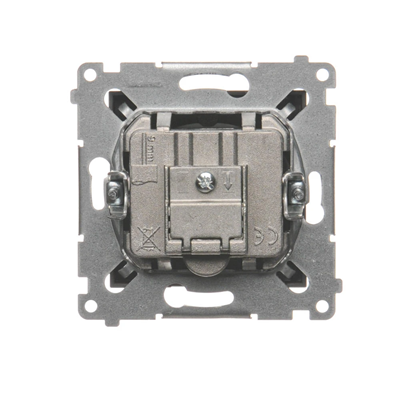

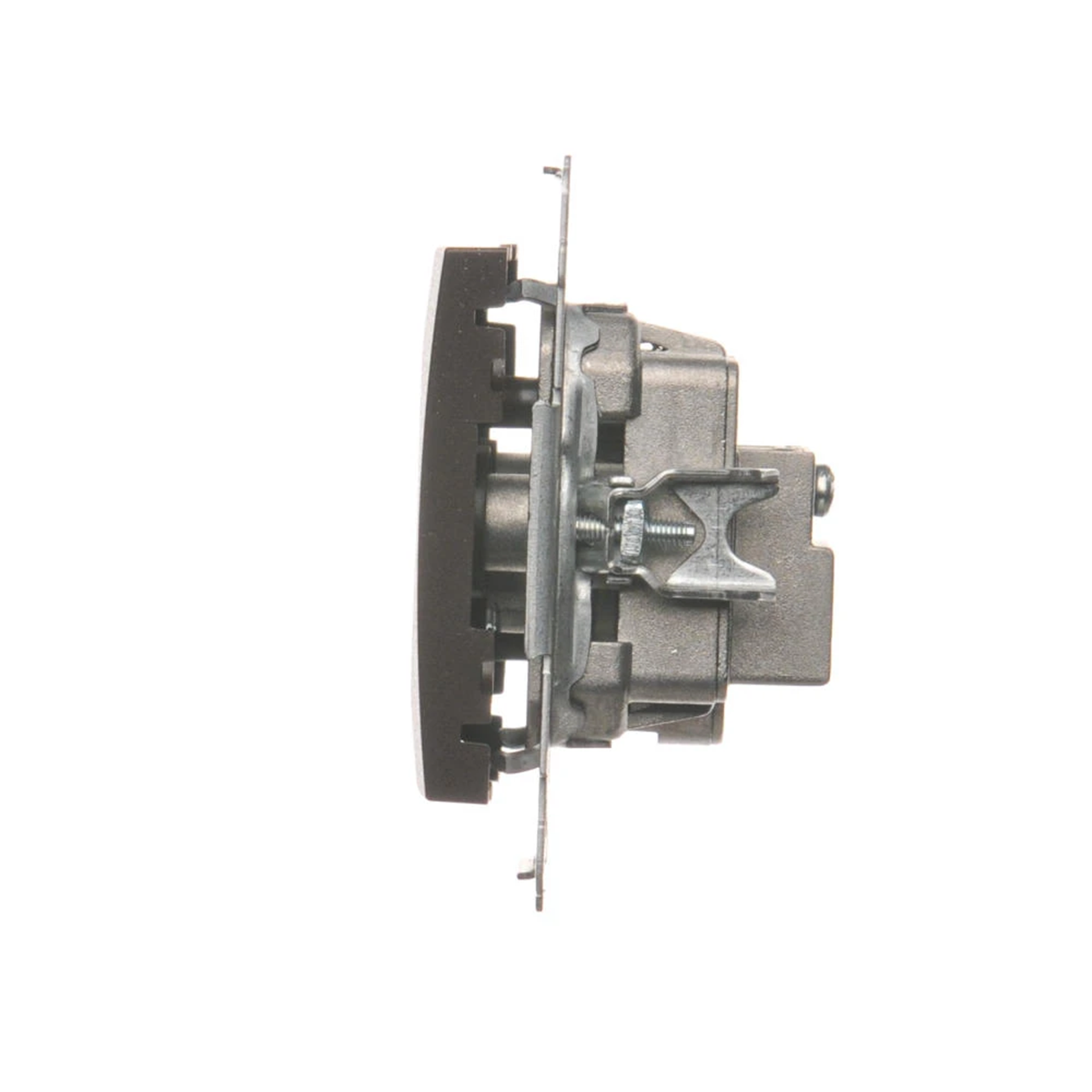

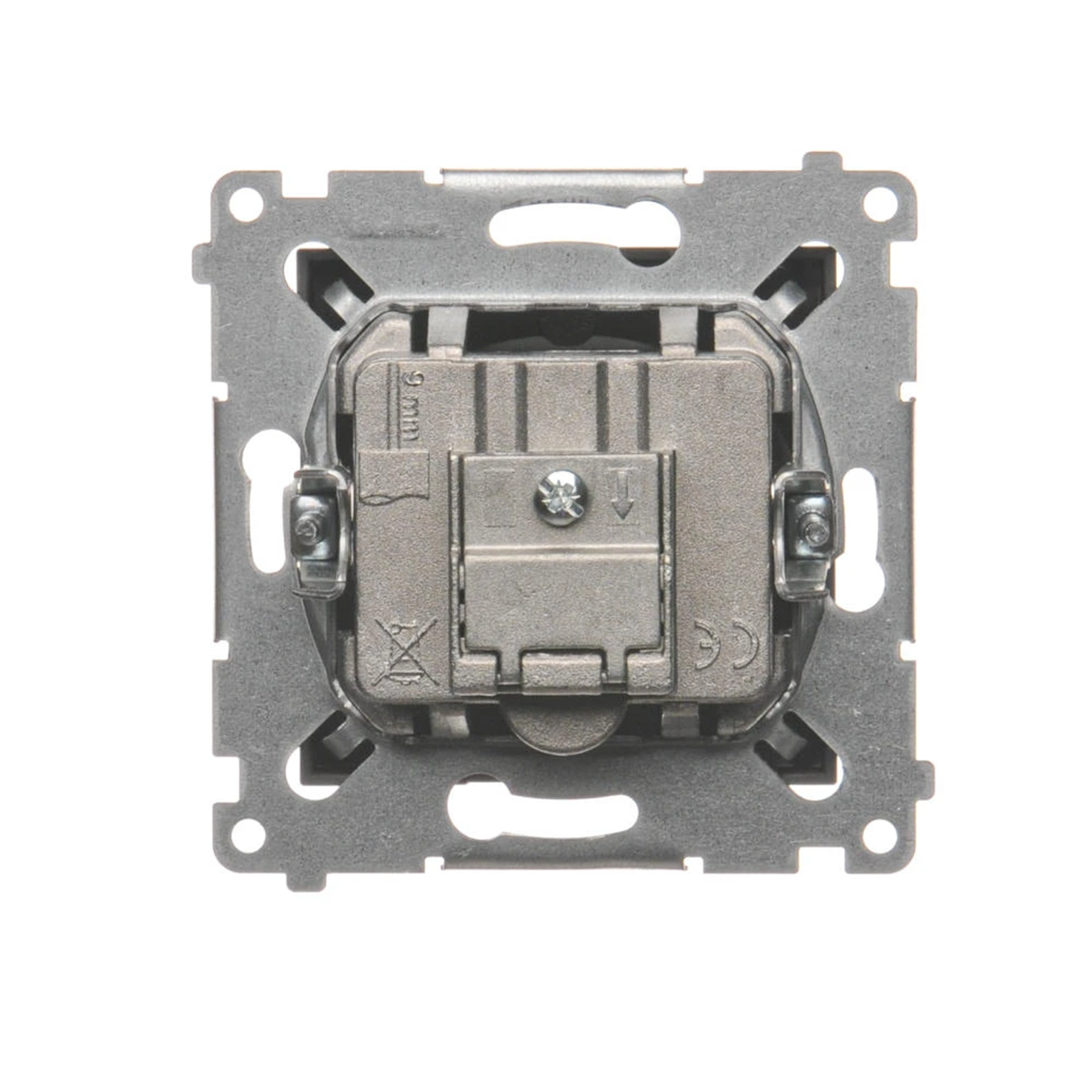

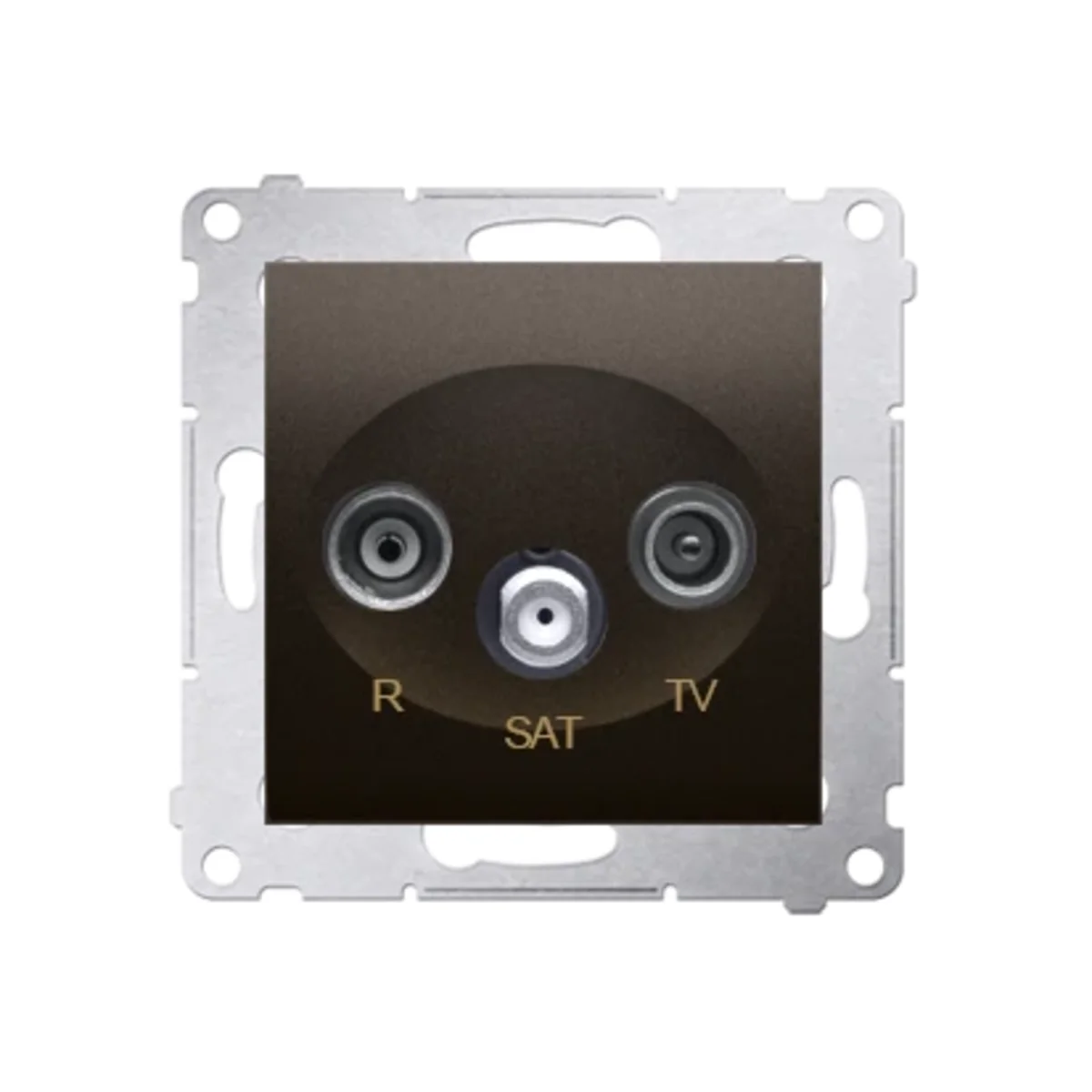

R-TV-SAT end/end antenna socket (module) bronze matt metallic DASK.01/46
local index:
MEA199KONT
Catalog No:
DASK.01/46
EAN code:
5902787832889
Price:
24,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
R-TV-SAT antenna socket. Suitable for frames from the SIMON 54 series.
Technical data
-
Halogen freeYes
-
Number of sockets3
-
ShapeSquare
-
Fixingclaws Screws
-
OverprintYes
-
FamilySimon 54
-
Width [mm]75
-
TypeFlush-mounted
-
Height [mm]75
-
Frequency Range [MHz]5-2400
-
Accurate colorMetallic bronze matt
-
Mounting depth [mm]29
-
VariantR TV sat
-
For the frame systemYes
-
PKWIU27.33.13.0
-
Depth [mm]41
-
ColorBrown
-
MaterialPlastic
-
InstallationFlush-mounted
-
TypeAntenna
-
Level of securityIP20
-
Attenuation [dB]Connections for 860 MHz: 1 Connections for 2150 MHz: 2
-
VersionFinal Final
-
Surface protectionvarnishing
-
Surface finishmatte
-
BacklightNO
-
Terminal typeThreaded
-
F-type inputNO
-
Exact materialPC
Other technical data
-
ModelEnd socket
-
Tap loss at 2150 MHz2 dB
-
Suitable for remote power supplyYes
-
Tap loss at 860 MHz1 dB
-
Number of outlets3
-
Frequency5 ... 2400 MHz
Manufacturer details
-
ManufacturerKONTAKT - SIMON S.A.
-
Address43-500 Czechowice-Dziedzice Bestwińska 21
-
Phone number
-
E-mail
-
Tax identification number6520005366
-
GLN5900009931105
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,114 | 0,114 | 1,228 |
| Width (m) | 0,075 | 0,110 | 0,190 |
| Length (m) | 0,075 | 0,045 | 0,230 |
| Depth (m) | 0,041 | 0,160 | 0,100 |
