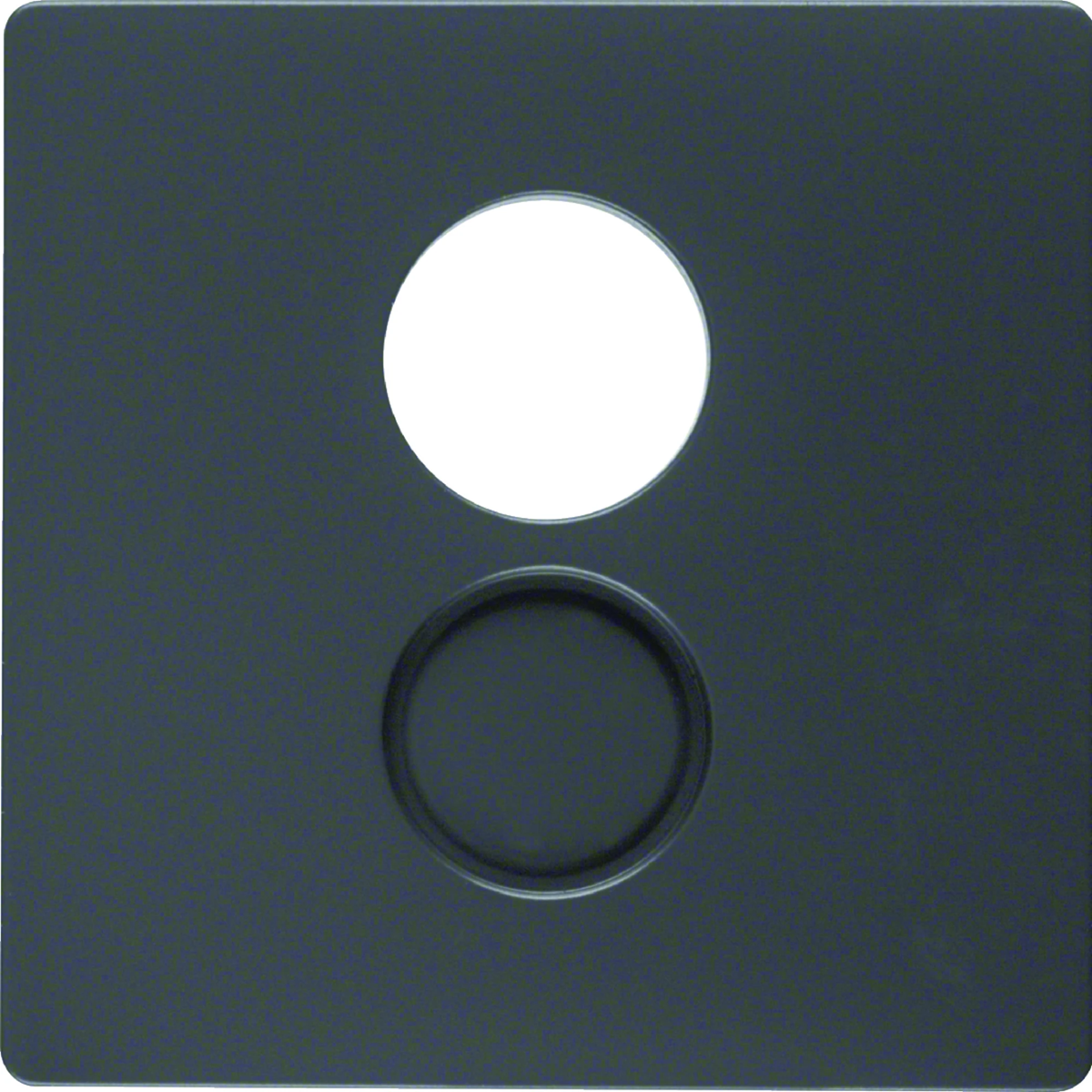

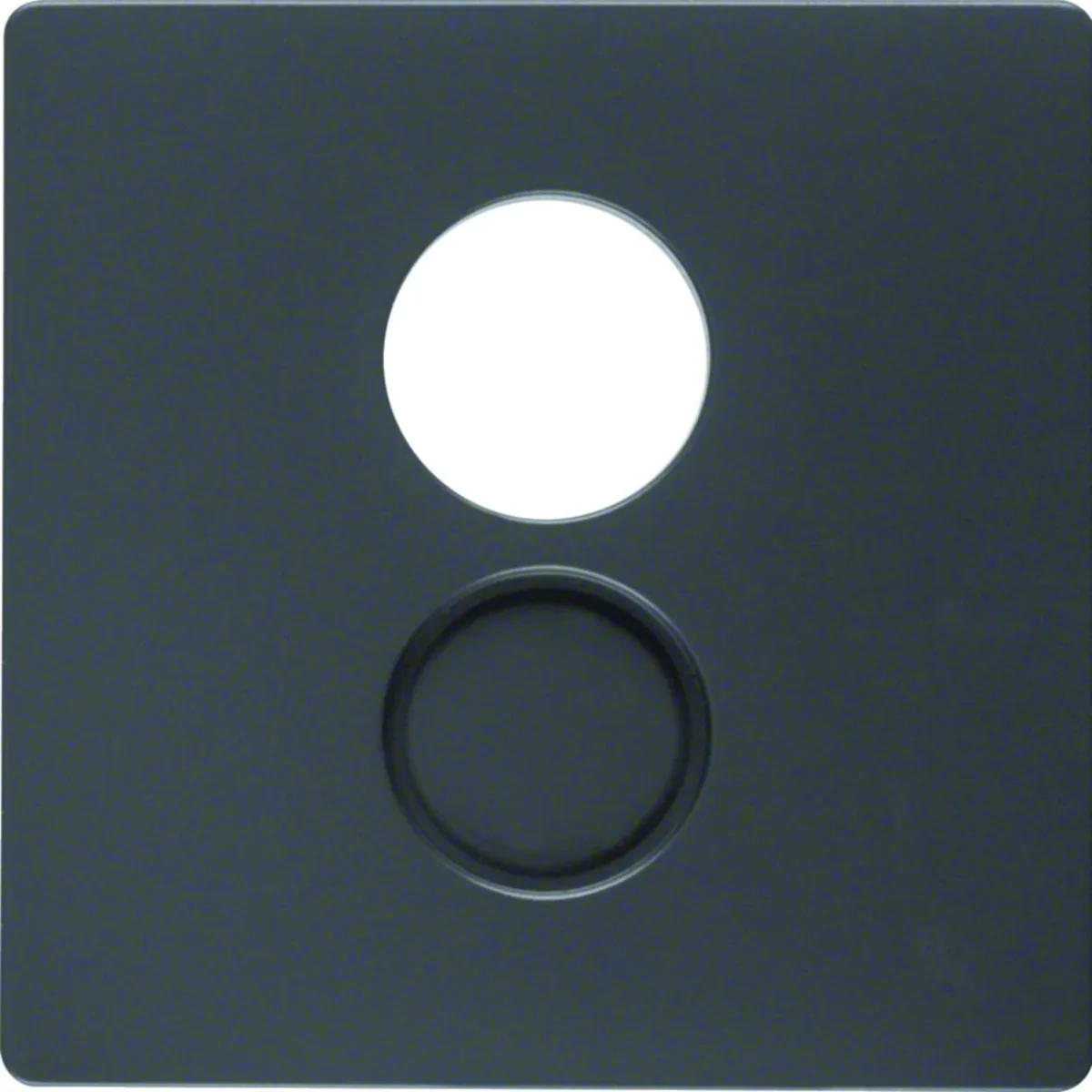

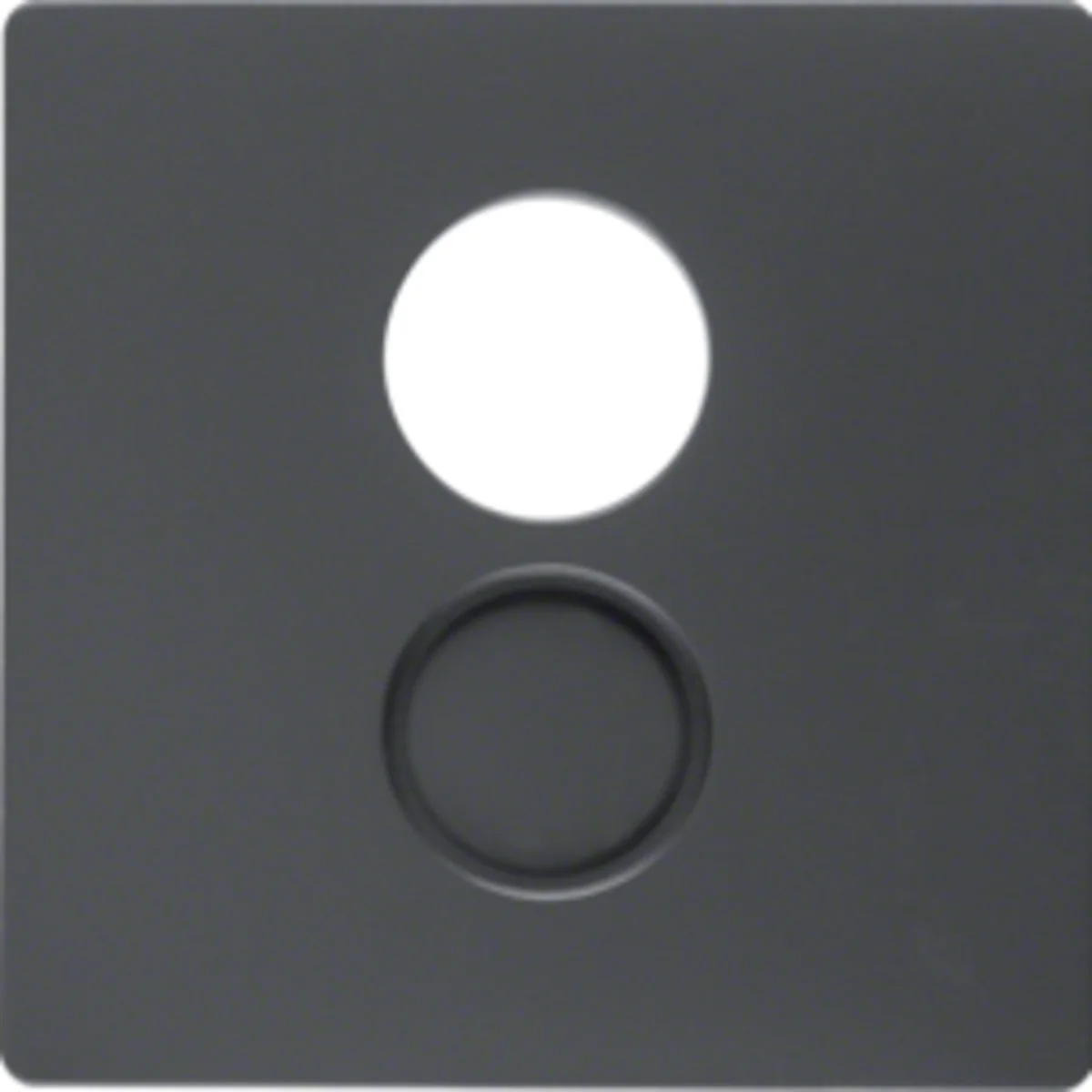

Q.x Front plate for loudspeaker socket and miniature connectors anthracite 11966086
local index:
MAP119BERK
Catalog No:
11966086
EAN code:
4011334380023
Price:
7,66 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Frontplate for loudspeaker socket and miniature connectors, Berker Q.1/Q.3/Q.7, with the following features:
- 1-door,
- Surface colour: anthracite velvet, lacquered,
- 1 knockout hole,
- For product no.: 450401, 450502
Technical data
-
ColorGraphite
-
MaterialPlastic
-
FamilyQ.1 Q.3 Q.7
-
Surface protectionvarnishing
-
Accurate colorAnthracite
-
PKWIU27.12.40.0
-
ShapeSquare
-
TypeTo the speaker jack
-
Level of securityIP20
-
Surface finishvelvet
-
For modular equipmentNot applicable
Other technical data
-
Assembly arrangementCentral cover plate
-
Support ringNo
-
With hinged lidNo
-
Mounting methodFlush-mounted
-
Material qualityDuroplast
-
Surface protectionLacquered
-
ColourAnthracite
-
TransparentNo
-
With buses/couplingsNo
-
Luster terminalNo
-
Device width59 mm
-
Device depth20 mm
-
UtilizationLoudspeaker connection
-
With dust coverNo
-
Imprintable labelWithout indication field
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)7021
-
Type of fasteningMounting with screw
-
With strain reliefNo
-
Suitable for degree of protection (IP)IP20
-
Device height59 mm
-
Min. depth of built-in installation box0 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 200 pcs. | 6400 pcs. |
| Weight (kg) | 0,016 | 0,191 | 4,249 | 155,958 |
| Width (m) | 0,059 | 0,077 | 0,300 | 0,800 |
| Length (m) | 0,020 | 0,066 | 0,225 | 1,050 |
| Depth (m) | 0,059 | 0,177 | 0,400 | 1,200 |
