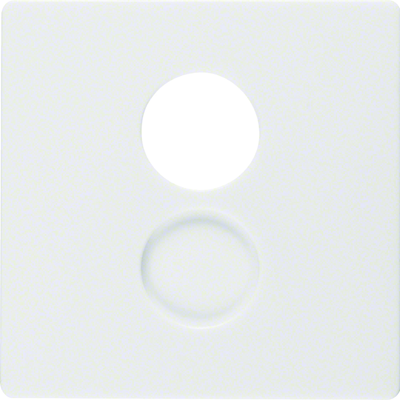

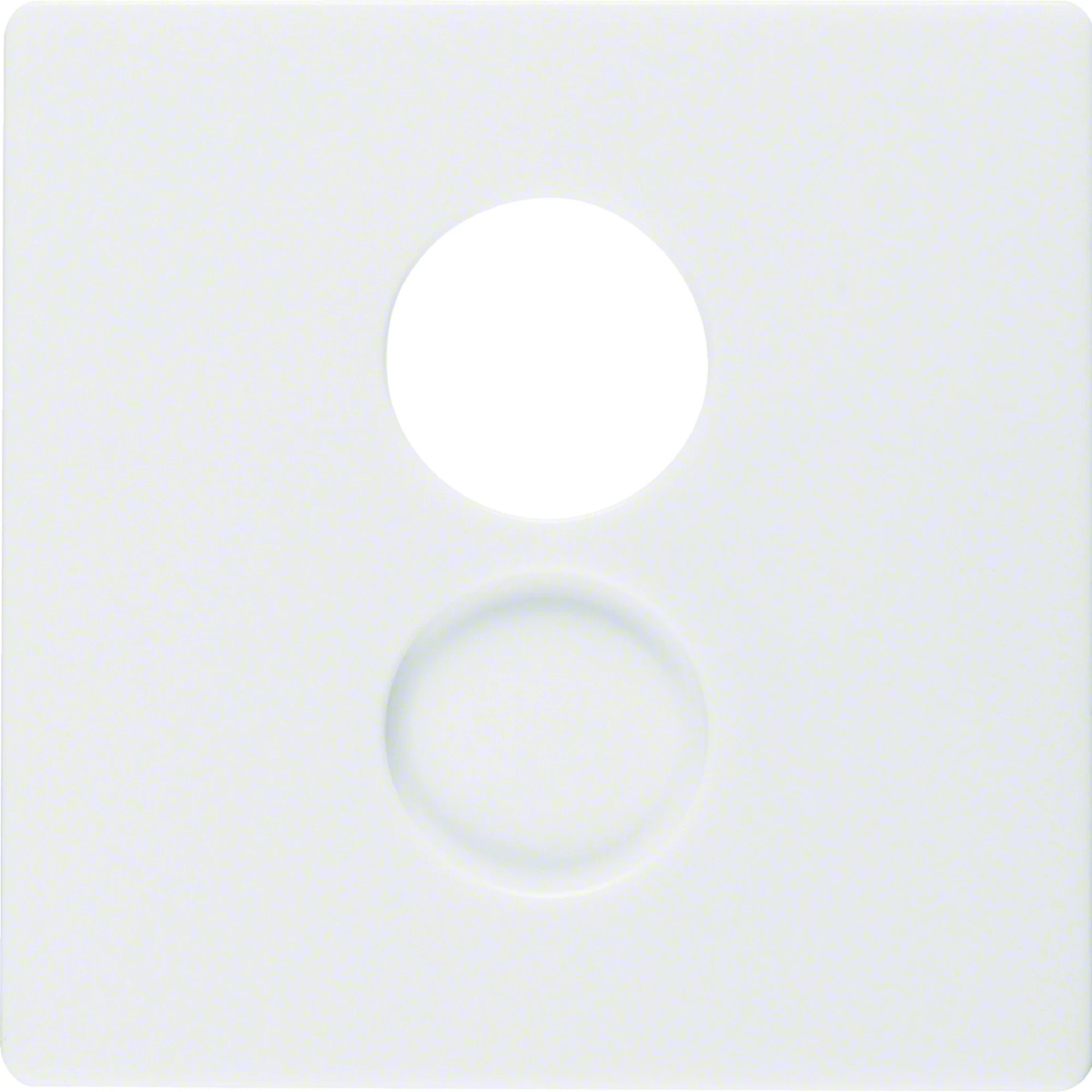

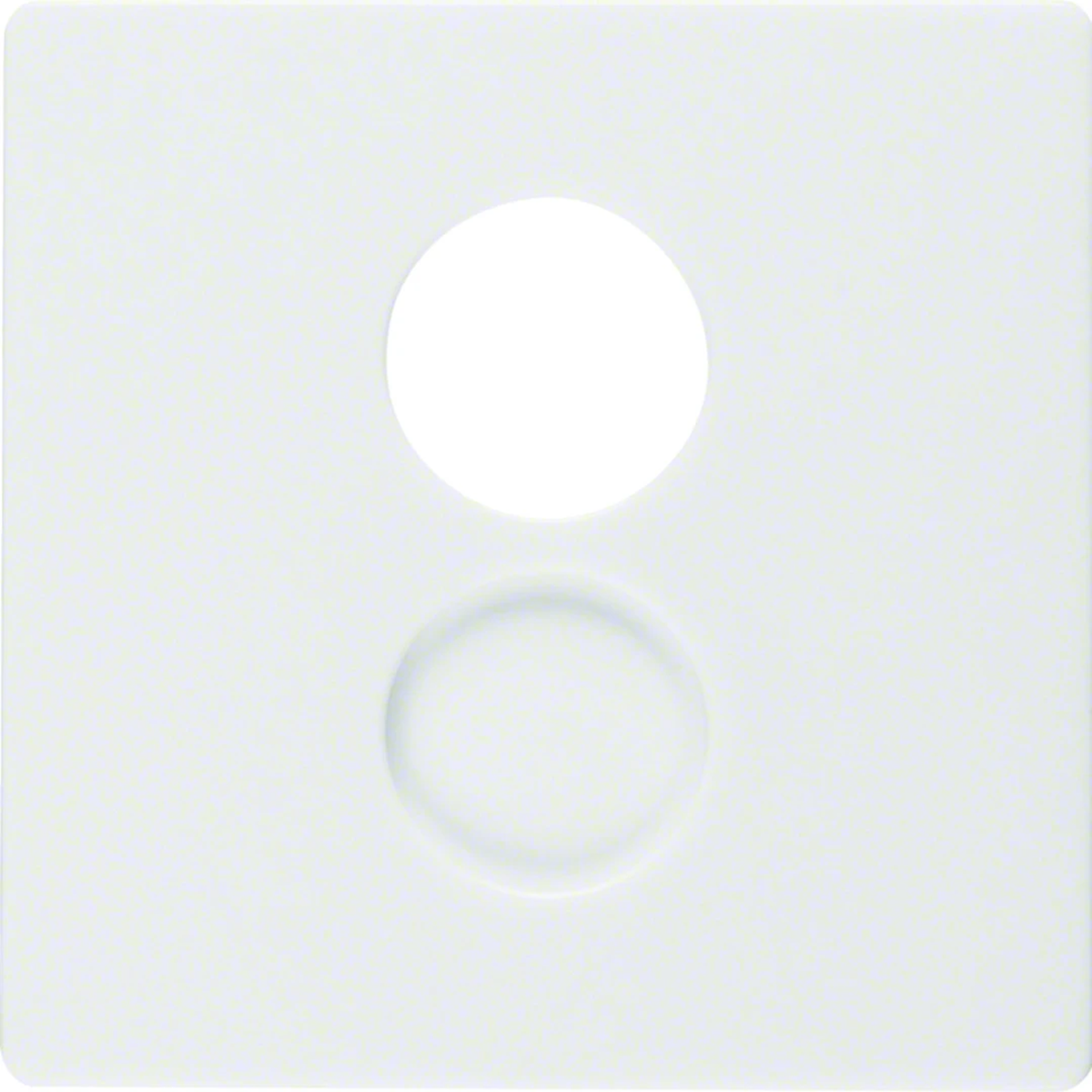

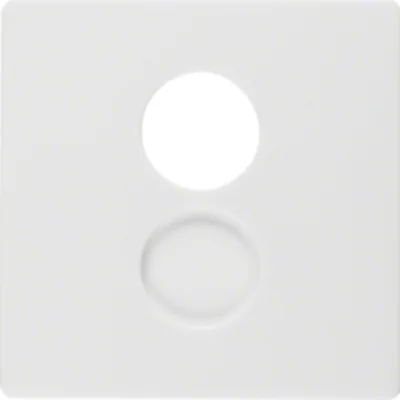

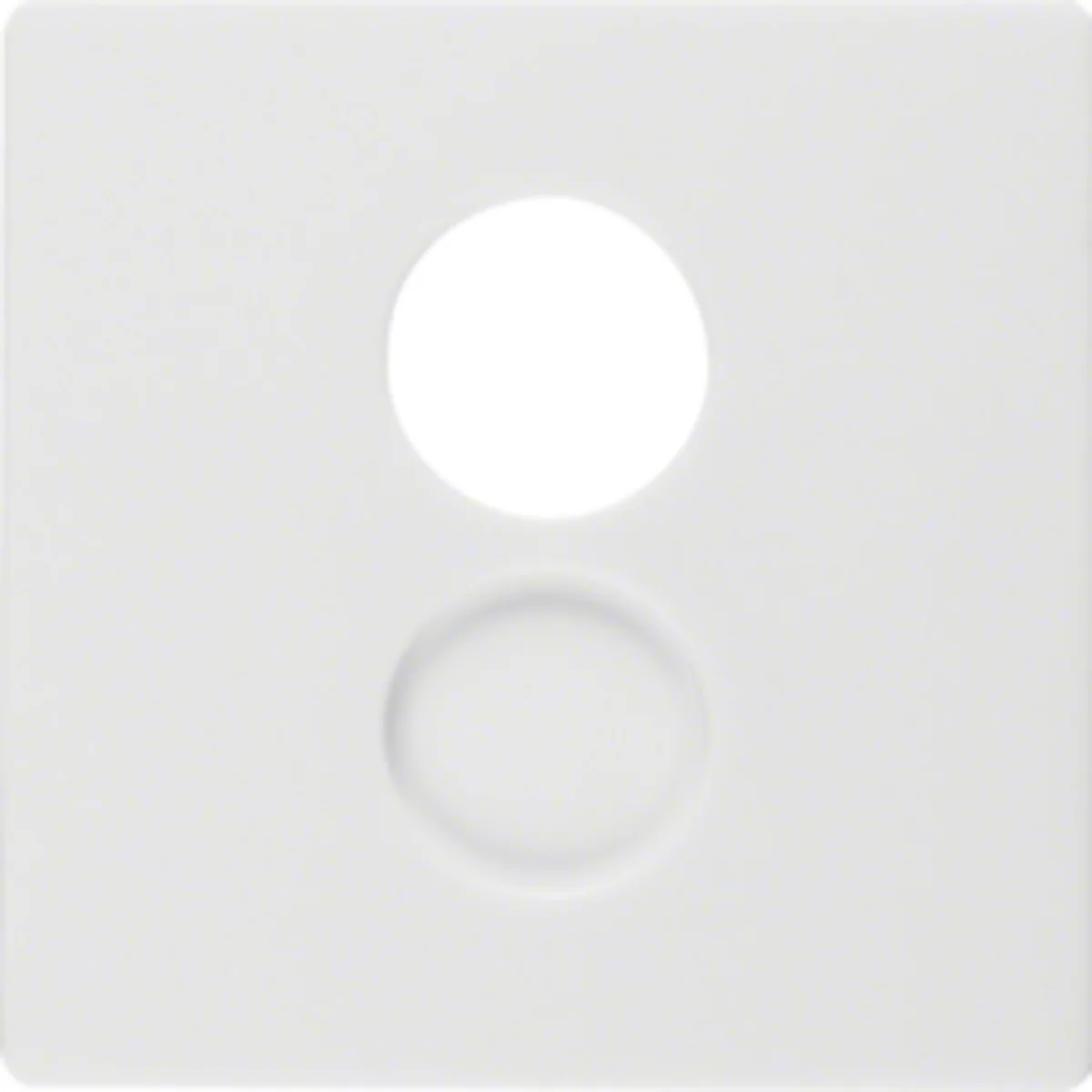

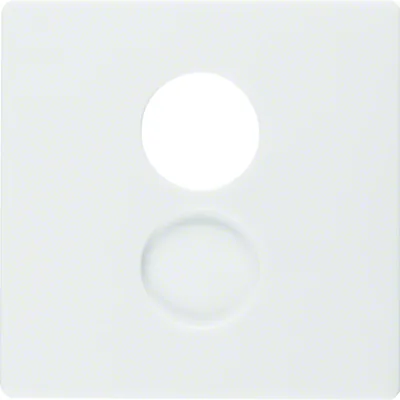

Q.x Front plate for loudspeaker socket and miniature connections, white 11966089

local index:
MAP120BERK
Catalog No:
11966089
EAN code:
4011334313830
Manufacturer: BERKER
Color: White
Shape: Square
Material: Plastic
Price:
5,31 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Frontplate for loudspeaker socket and miniature connectors, Berker Q.1/Q.3/Q.7, with the following Features:

  • 1 door,
  • Surface color: white, velvet,
  • 1 knockout hole,
  • For products no.: 450401, 450502

Technical data

  • Color
    White
  • Material
    Plastic
  • Family
    Q.1 Q.3 Q.7
  • Surface finish
    velvet
  • For modular equipment
    Not applicable
  • Shape
    Square
  • Type
    To the speaker jack
  • Level of security
    IP20
  • Accurate color
    Snow white
  • PKWIU
    27.12.40.0

Other technical data

  • Assembly arrangement
    Central cover plate
  • Support ring
    no
  • With hinged lid
    no
  • Mounting method
    Flush-mounted
  • Material quality
    Duroplast
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    no
  • With buses/couplings
    no
  • Luster terminal
    no
  • Device width
    59 mm
  • Device depth
    20 mm
  • Utilization
    Loudspeaker connection
  • With dust cover
    no
  • Imprintable label
    Without indication field
  • Material
    Plastic
  • Halogen free
    yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • Type of fastening
    Mounting with screw
  • With strain relief
    no
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    59 mm
  • Min. depth of built-in installation box
    0 mm

Bulk packaging

A kind of package Pakiet Paczka Paleta
Quantity 10 pcs. 300 pcs. 9600 pcs.
Weight (kg) 0,183 5,902 208,852
Width (m) 0,080 0,300 0,800
Length (m) 0,066 0,225 1,050
Depth (m) 0,125 0,400 1,200
