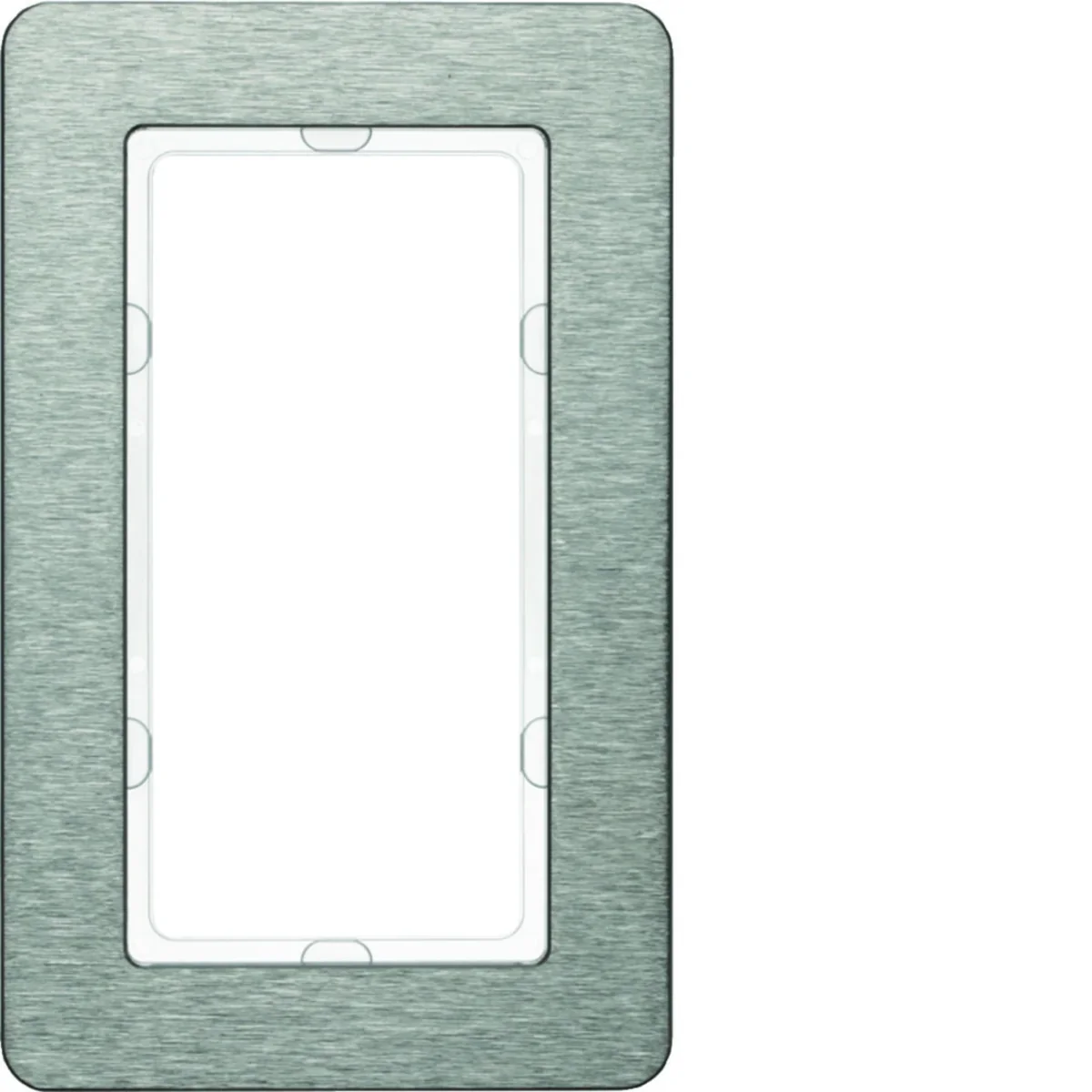

Q.7 Stainless steel frame with a large cut-out 13096083

local index:
MAR018HAGE
Catalog No:
13096083
EAN code:
4011334460855
Manufacturer: HAGER
Depth [mm]: 9.9
Number of modules: 1
Color: Silver
Price:
86,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Border with a large cut-out from the Q.7  series. The product catalog number is 13096083.

  • For KNX pushbuttons.

Technical data

  • Depth [mm]
    9.9
  • Color
    Silver
  • Material
    Metal
  • Family
    Q.7
  • Width [mm]
    95.2
  • Surface protection
    Brushing
  • Accurate color
    stainless steel
  • For modular equipment
    Not applicable
  • The shape of the matching accessory
    Square, Rectangular
  • Number of modules
    1
  • Shape
    Rectangular
  • Type
    Standard
  • Level of security
    IP20
  • Height [mm]
    154.2
  • Surface finish
    matte
  • Mounting direction
    Vertical
  • Exact material
    stainless steel
  • PKWIU
    27.12.40.0

Other technical data

  • Number of units
    1
  • Number of units horizontal
    1
  • Number of modules horizontal (module system)
    0
  • Liczba łączników
    1
  • Suitable for subfloor installation duct box
    No
  • Suitable for built-in installation
    Yes
  • Material
    Metal
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9022
  • With hinged lid
    No
  • Impact strength
    IK02
  • Width
    95.2 mm
  • Depth
    9.9 mm
  • Built-in height
    117.5 mm
  • Mounting direction
    Vertical
  • Number of units vertical
    1
  • Number of modules vertical (module system)
    0
  • With mounting grid
    No
  • Suitable for wall duct
    Yes
  • Label space/information surface
    No
  • Material quality
    Stainless steel
  • Surface protection
    Brushed
  • Colour
    Stainless steel
  • Transparent
    No
  • Degree of protection (IP)
    IP20
  • Type of fastening
    Clamp mounting
  • Height
    154.2 mm
  • Built-in width
    58.5 mm
  • Diameter bore hole (opening)
    0 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 18 pcs. 576 pcs.
Weight (kg) 0,250 0,306 6,000 211,988
Width (m) 0,095 0,118 0,300 0,800
Length (m) 0,010 0,031 0,225 1,050
Depth (m) 0,155 0,277 0,400 1,200
