Q.7 Stainless steel 4-gang horizontal bezel 10246083

local index:
MAR352BERK
Catalog No:
10246083
EAN code:
4011334460831
Manufacturer: BERKER
Depth [mm]: 9.9
Number of modules: 4
Color: Silver
Price:
149,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

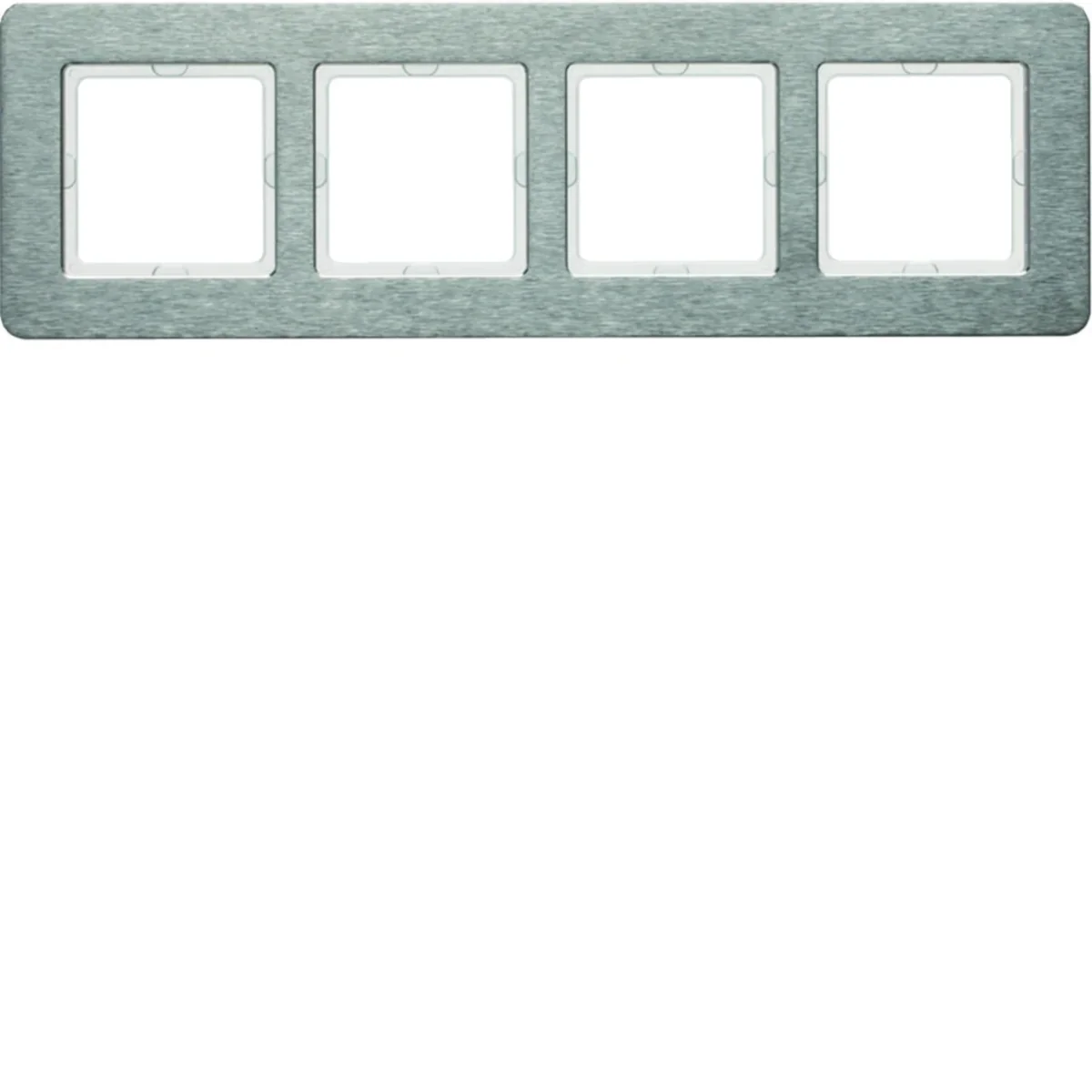

4-fold frame from the Q.7  series from Berker. The product part number is 10246083.

Technical data

  • Depth [mm]
    9.9
  • Color
    Silver
  • Material
    Metal
  • Family
    Q.7
  • Width [mm]
    308.2
  • Surface protection
    Brushing
  • Accurate color
    stainless steel
  • For modular equipment
    Not applicable
  • The shape of the matching accessory
    Square, Rectangular
  • Number of modules
    4
  • Shape
    Rectangular
  • Type
    Standard
  • Level of security
    IP20
  • Height [mm]
    95.2
  • Surface finish
    matte
  • Mounting direction
    Horizontal
  • Exact material
    stainless steel
  • PKWIU
    27.12.40.0

Other technical data

  • Number of units
    4
  • Number of units horizontal
    4
  • Number of modules horizontal (module system)
    0
  • Liczba łączników
    4
  • Suitable for subfloor installation duct box
    No
  • Suitable for built-in installation
    Yes
  • Material
    Metal
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9022
  • With hinged lid
    No
  • Impact strength
    IK02
  • Width
    308.2 mm
  • Depth
    9.9 mm
  • Built-in height
    59.4 mm
  • Mounting direction
    Horizontal
  • Number of units vertical
    1
  • Number of modules vertical (module system)
    0
  • With mounting grid
    No
  • Suitable for wall duct
    Yes
  • Label space/information surface
    No
  • Material quality
    Stainless steel
  • Surface protection
    Brushed
  • Colour
    Stainless steel
  • Transparent
    No
  • Degree of protection (IP)
    IP20
  • Type of fastening
    Clamp mounting
  • Height
    95.2 mm
  • Built-in width
    59.4 mm
  • Diameter bore hole (opening)
    0 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 28 pcs. 896 pcs.
Weight (kg) 0,510 0,603 16,010 532,320
Width (m) 0,095 0,108 0,300 0,800
Length (m) 0,010 0,032 0,225 1,050
Depth (m) 0,309 0,400 0,400 1,200
