Q.7 Double slate frame 10126030
local index:
MAR126BERK
Catalog No:
10126030
EAN code:
4011334459705
Price:
67,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

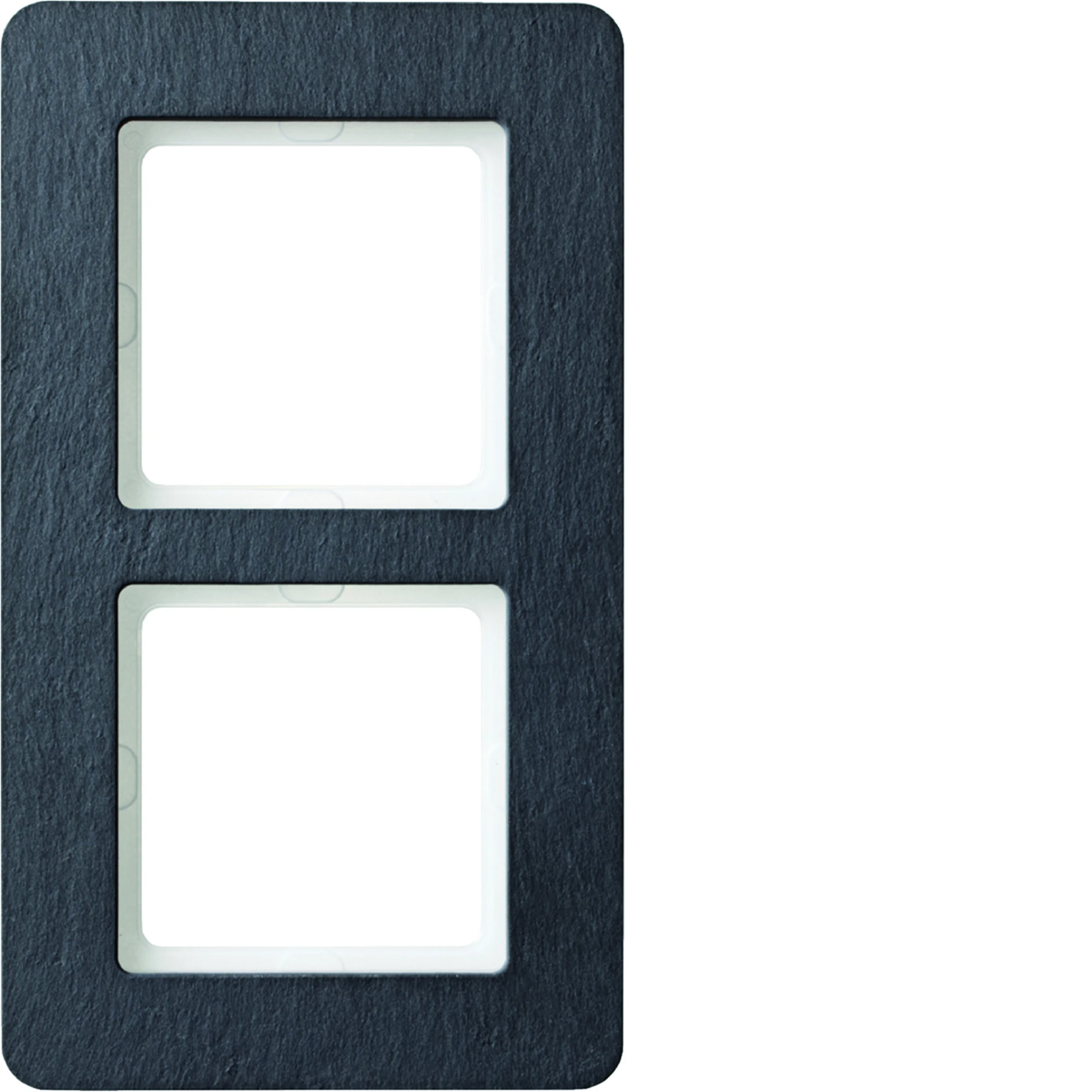

Double frame from the Q.7 series from Berker. The product catalog number is 10126030.
- Natural material with an individual character emphasized by the natural structure and different thicknesses of the material and natural colors.
- Untreated surface structure.
Technical data
-
Depth [mm]9.9
-
ColorGraphite
-
MaterialSlate
-
FamilyQ.7
-
Width [mm]166.2
-
Surface protectionNatural
-
Accurate colorAnthracite
-
For modular equipmentNot applicable
-
The shape of the matching accessorySquare, Rectangular
-
Number of modules2
-
ShapeRectangular
-
TypeStandard
-
Level of securityIP20
-
Height [mm]95.2
-
Surface finishmatte
-
Mounting directionUniversal
-
Exact materialNatural slate
-
PKWIU27.12.40.0
Other technical data
-
Number of units2
-
Number of units horizontal2
-
Number of modules horizontal (module system)0
-
Liczba łączników2
-
Suitable for subfloor installation duct boxNo
-
Suitable for built-in installationYes
-
MaterialStone
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)7021
-
With hinged lidNo
-
Impact strengthIK02
-
Width166.2 mm
-
Depth9.9 mm
-
Built-in height59.4 mm
-
Mounting directionHorizontal and vertical
-
Number of units vertical2
-
Number of modules vertical (module system)0
-
With mounting gridNo
-
Suitable for wall ductYes
-
Label space/information surfaceNo
-
Material qualitySlate
-
Surface protectionUntreated
-
ColourBlack
-
TransparentNo
-
Degree of protection (IP)IP20
-
Type of fasteningClamp mounting
-
Height95.2 mm
-
Built-in width59.4 mm
-
Diameter bore hole (opening)0 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 18 pcs. | 576 pcs. |
| Weight (kg) | 0,120 | 0,180 | 3,660 | 137,107 |
| Width (m) | 0,095 | 0,120 | 0,300 | 0,800 |
| Length (m) | 0,010 | 0,035 | 0,225 | 1,050 |
| Depth (m) | 0,168 | 0,275 | 0,400 | 1,200 |
