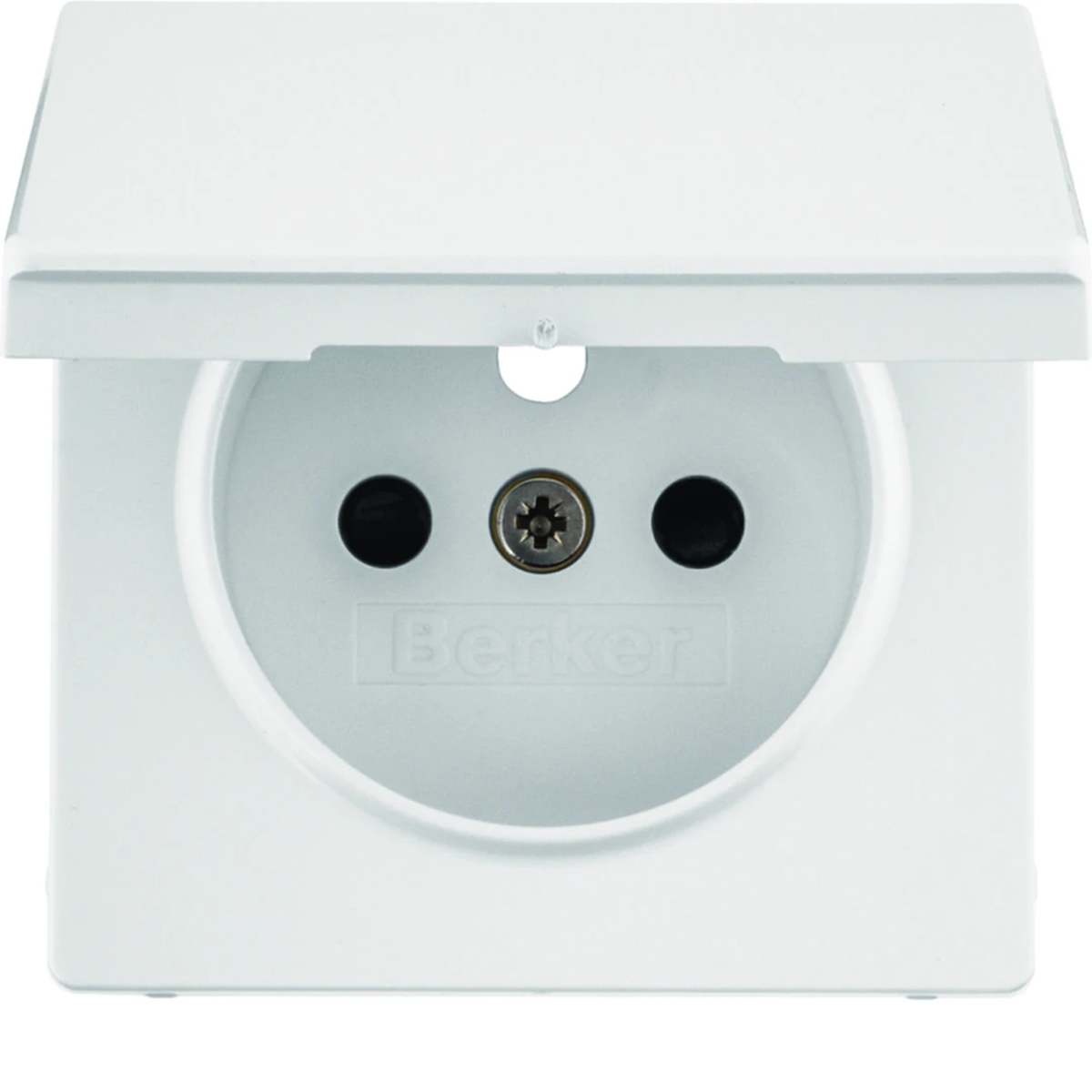

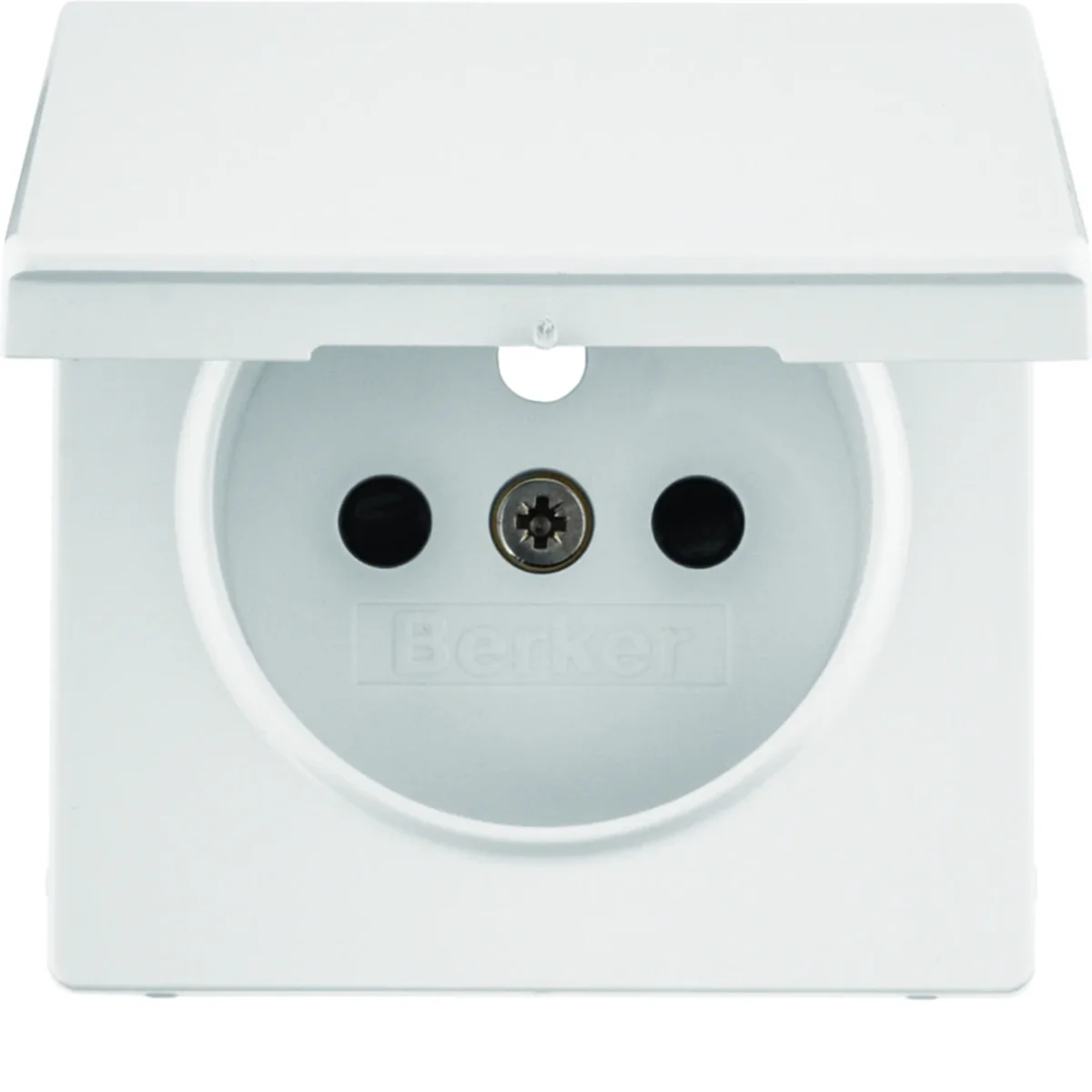

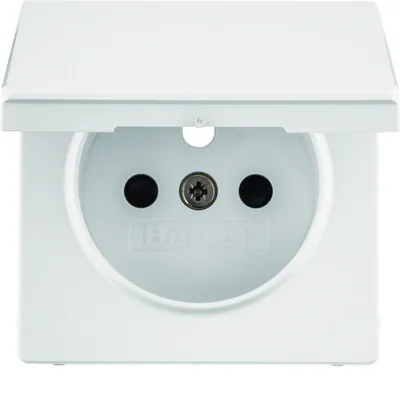

Q.1/Q.3/Q.7 Socket faceplate with grounding cover with contact shutter white velvet 3965436089

local index:
MAP449BERK
Catalog No:
3965436089
EAN code:
4011334510765
Manufacturer: BERKER
Color: White
Shape: Square
Material: Plastic
Price:
8,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 39 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Frontplate of the Berker Q.1/Q.3/Q.7 series

- with cover

- with shutters

- for earthed socket mechanism no. 396380, 39 6874.

IP 44 is achieved by installing gasket kit 10107200.

Technical data

  • Color
    White
  • Material
    Plastic
  • Family
    Q.1 Q.3 Q.7
  • For modular equipment
    Not applicable
  • Shape
    Square
  • Type
    To a hermetic electrical socket
  • Surface finish
    velvet
  • PKWIU
    27.12.40.0

Other technical data

  • Model
    Central cover plate
  • Utilization
    Wall socket
  • Type of fastening
    Screw mounting
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • With exchangeable lens/symbol
    No
  • Impact strength
    IK02
  • Scannable symbol/barrier free
    No
  • Suitable for touch sensor connector for bus system
    No
  • Monitoring window/light outlet
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • With label area
    No
  • Suitable for degree of protection (IP)
    IP44

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 120 pcs. 3840 pcs.
Weight (kg) 0,030 0,361 4,691 175,104
Width (m) 0,055 0,130 0,300 0,800
Length (m) 0,035 0,060 0,225 1,050
Depth (m) 0,055 0,200 0,400 1,200
