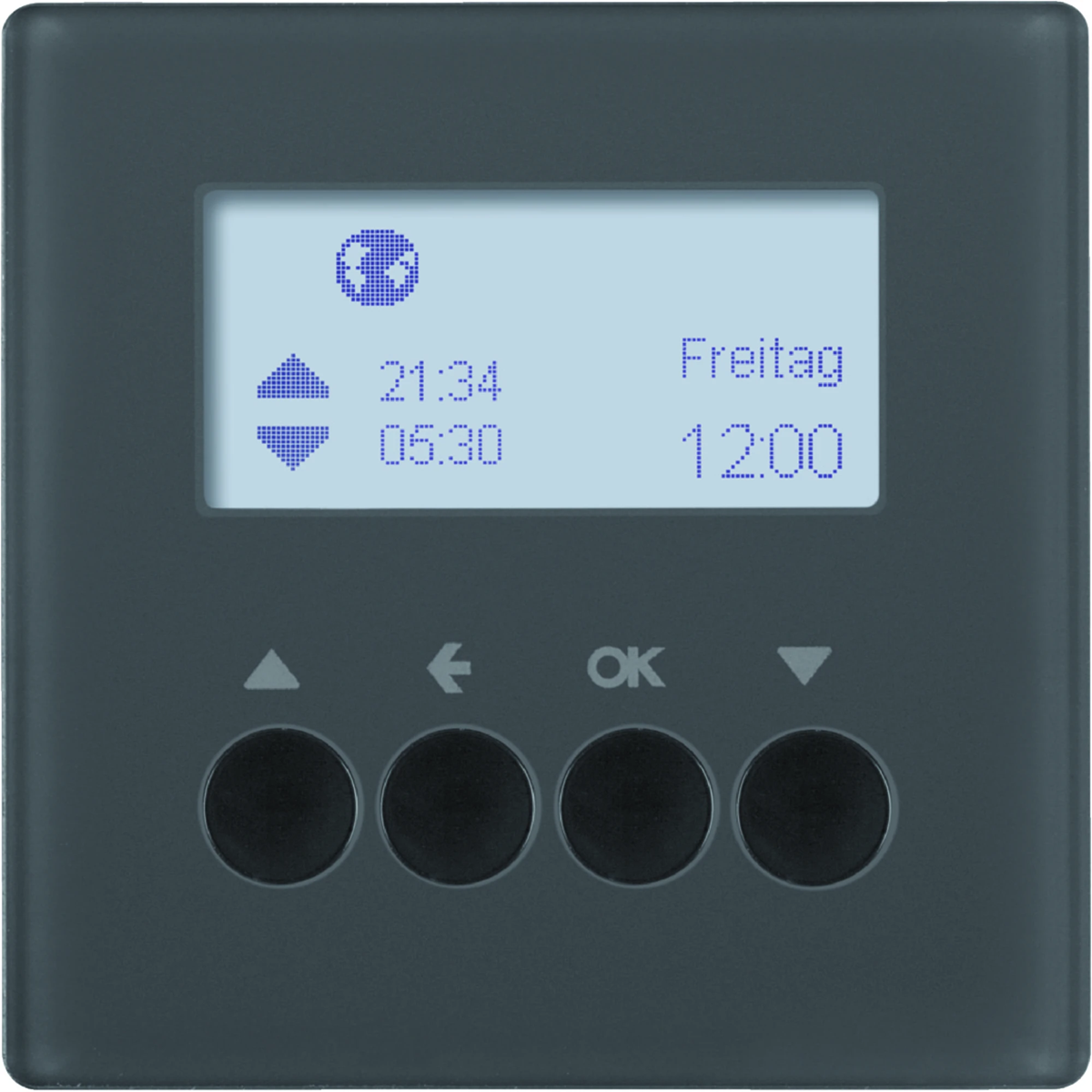

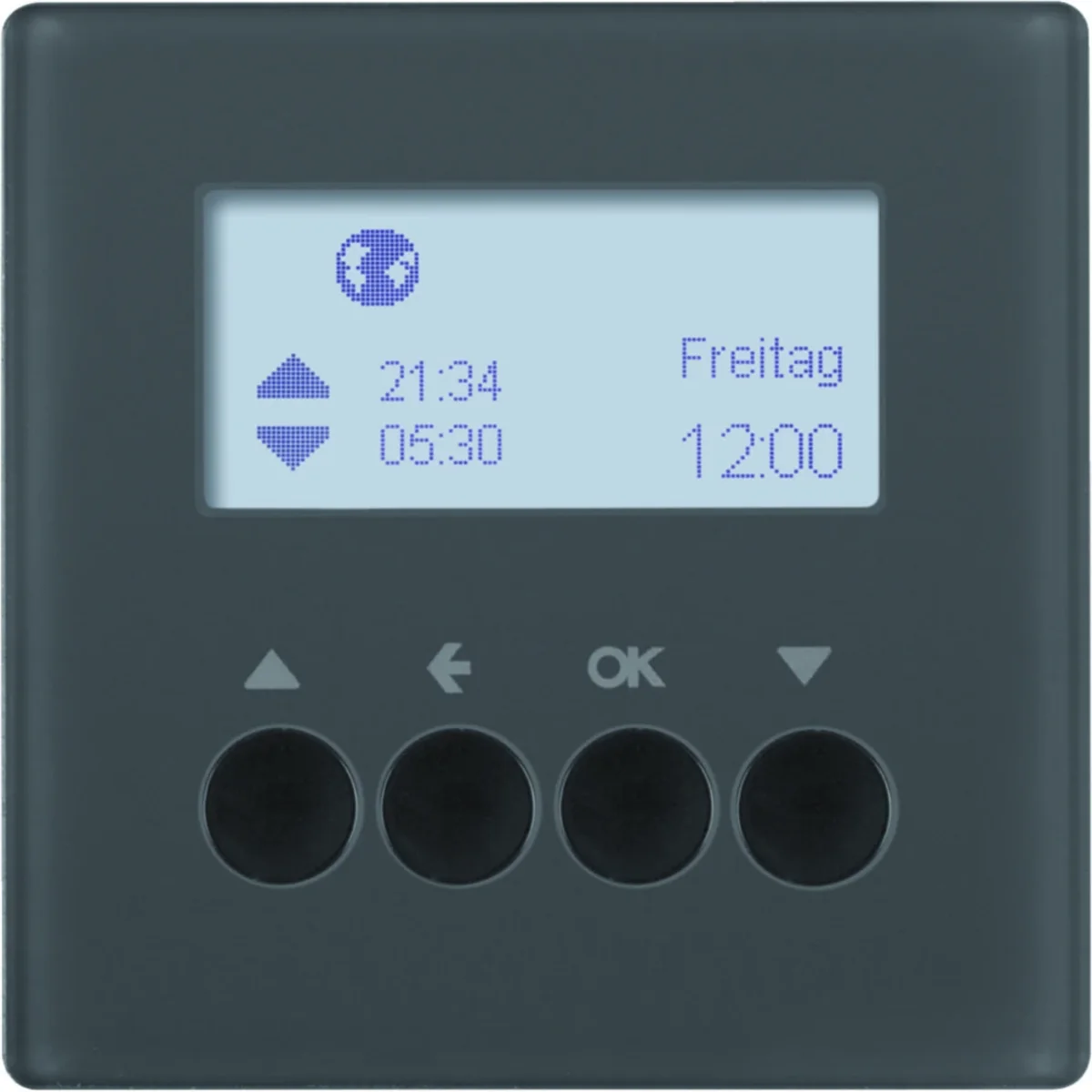

Q.1/Q.3 Shutter time switch with anthracite display 85741126
local index:
MWL003BERK
Catalog No:
85741126
EAN code:
4011334382683
Price:
205,05 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Louver time switch with display, Berker Q.1/Q.3 series.
Features:
- reset function (factory settings)
- with button lock
- party function, automatic commands, radio commands and extension commands are not executed ( lock)
- manual/automatic mode switching
Controls and indicators:
- backlit LCD display during operation
- indication of attachment/mechanism compatibility on display
- adjustable LCD contrast
Settings:
- with automatic winter/summer time changeover (detachable)
- astronomical program for sunrise/sunset changeover with city/country input and individual adjustment
- holiday program causing random selection of shift times in automatic mode
Technical data
-
Switching time [s]< 0.6s
-
Rated voltage [V]12
-
Operating temperature range [°C]from -5 to 45
-
Power reserve [h]24
-
PKWIU26.52.24.0
-
MaterialPlastic Metal
-
FamilyQ.1 Q.3
-
Minimum slat adjustment time [ms]250
-
Relative humidity (no condensation) [%]0 - 65 (non-condensing)
Other technical data
-
Assembly arrangementControl end-piece
-
With brightness sensor connectionNo
-
Suitable for rain sensorYes
-
With Astro programNo
-
With memory functionYes
-
Random generatorYes
-
Mounting methodOther
-
Material qualityOther
-
Surface protectionLacquered
-
ColourAnthracite
-
TransparentNo
-
Max. switching power0 W
-
Nominal voltage12 V
-
Type of fasteningClamp mounting
-
Integrated timerYes
-
Suitable for wind sensorYes
-
With glass breaking detector connectionNo
-
Substation inputYes
-
Twilight value adjustable0 ... 0 lx
-
Switch-off protectionNo
-
MaterialOther
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)7021
-
Suitable for degree of protection (IP)IP20
-
Autonomy24 h
-
Frequency0 ... 0 Hz
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. | 1152 pcs. |
| Weight (kg) | 0,069 | 0,095 | 3,649 | 136,758 |
| Width (m) | 0,058 | 0,085 | 0,300 | 0,800 |
| Length (m) | 0,030 | 0,070 | 0,225 | 1,050 |
| Depth (m) | 0,058 | 0,085 | 0,400 | 1,200 |
