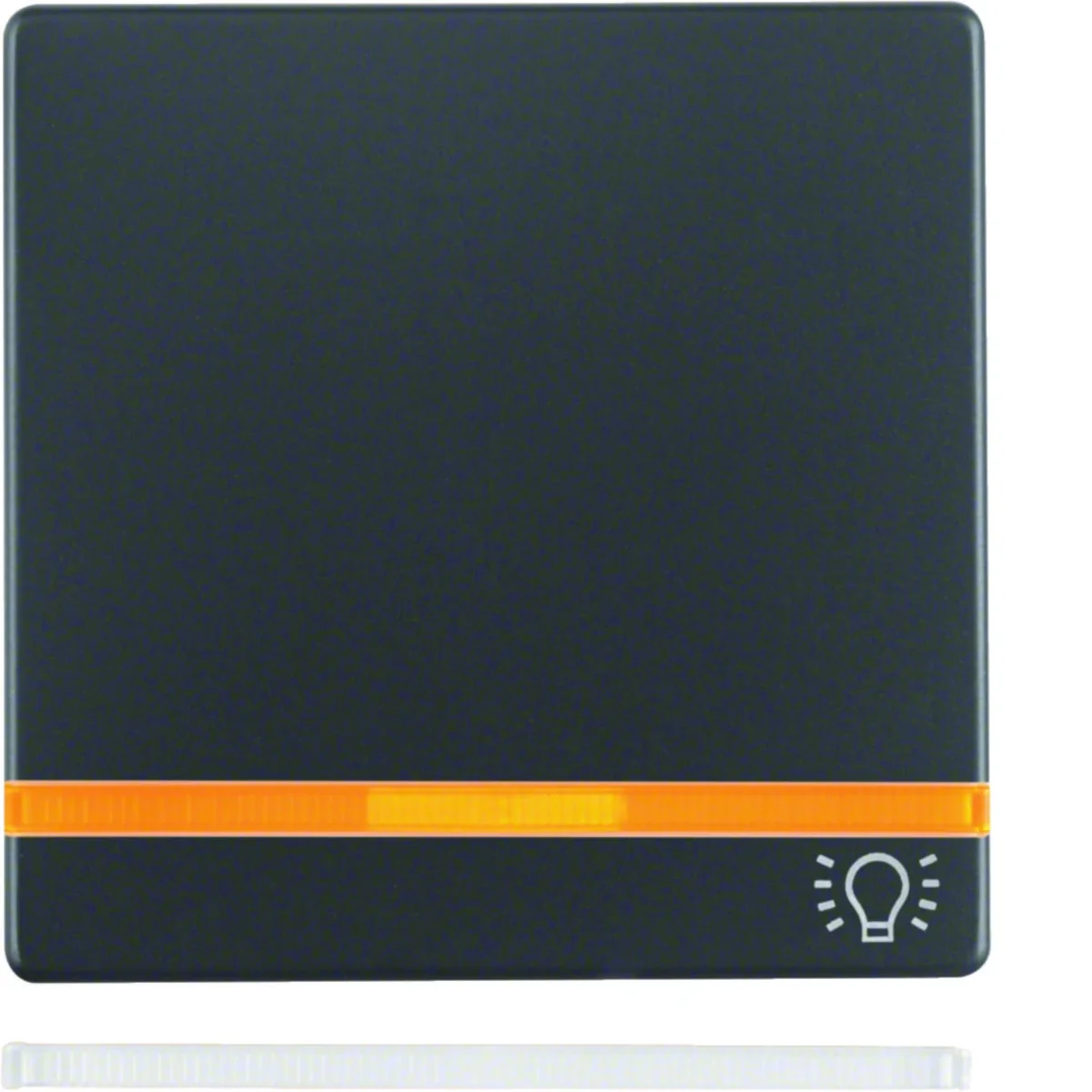

Q.1/Q.3 Rocker with 2 lenses and printed symbol "light" anthracite velvet 16216076

Indice locale:
MAK122BERK
Numero di catalogo:
16216076
Codice EAN:
4011334380016
Produttore: BERKER
Color: Graphite
Material: Plastic
Surface: Velvet
Prezzo:
51,97 zł
gross / pezzi
(inclusa IVA 23%)
fino a 10 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Switch with two attached lenses and printed "light" symbol, from the Berker Q.1/Q.3 series.

  • for plasterboard walls,
  • for stair/cross switches,
  • for push-button switch,
  • for connection with backlight and control connection with backlight.

Application: Flush-mounted installation for wet rooms, lighting control.

Additional information: The degree of protection IP44 is only ensured in conjunction with the appropriate glow, incandescent or LED insert and the sealing kit (item no. 10107100) for switches/button switches.

Dati tecnici

  • Color
    Graphite
  • Surface
    Velvet
  • Accurate color
    Anthracite
  • PKWIU
    27.33.11.0
  • Material
    Plastic
  • Family
    Q.1 Q.3
  • Exact material
    Duroplastic

Altri dati tecnici

  • Model
    One-part rocker
  • Scannable symbol/barrier free
    No
  • Suitable for touch sensor connector for bus system
    Yes
  • Monitoring window/light outlet
    Yes
  • Material quality
    Duroplast
  • Surface protection
    Untreated
  • Colour
    Anthracite
  • With label area
    No
  • Suitable for degree of protection (IP)
    IP20
  • Imprint/indication
    Symbol "light"
  • Utilization
    Switch/push button
  • Type of fastening
    Clamp mounting
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    7021
  • With exchangeable lens/symbol
    Yes
  • Impact strength
    IK02

Dettagli del produttore

Imballaggio sfuso

Una specie di pacchetto Karton Pakiet Paleta Karton Pakiet Paleta
Quantità 10 pezzi 120 pezzi 3840 pezzi 10 pezzi 120 pezzi 3840 pezzi
Peso (kg) 0,312 4,115 156,680 0,312 4,115 156,680
Larghezza (m) 0,090 0,300 0,800 0,090 0,300 0,800
Lunghezza (m) 0,070 0,220 1,050 0,070 0,220 1,050
Profondità (m) 0,270 0,400 1,200 0,270 0,400 1,200
