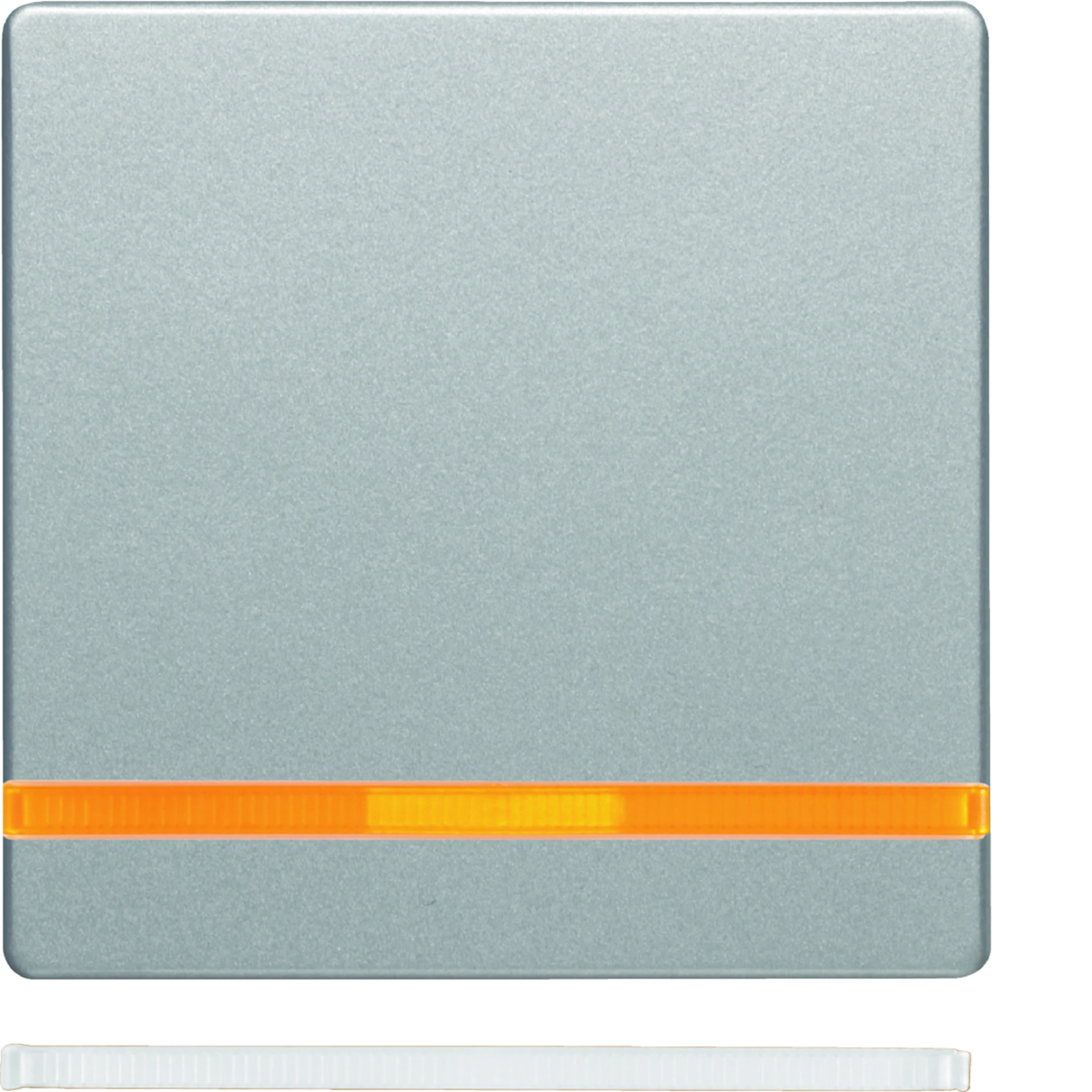

Q.1/Q.3 Rocker with 2 attached lenses, lacquered velvet aluminum 16216084

local index:
MAK124BERK
Catalog No:
16216084
EAN code:
4011334443339
Manufacturer: BERKER
Color: Silver
Material: Plastic
Surface: Velvet
Price:
9,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Key with two attached lenses, from the Berker seriesQ.1/Q.3.

  • for plasterboard walls,
  • for stair/cross switches,
  • for push-button switch,
  • for connection with backlight and control connection with backlight.< /li>

Application: Concealed installation for wet rooms, lighting control.

Additional information: The degree of protection IP44 is only ensured in conjunction with the appropriate glow, incandescent or LED insert and the sealing kit (item no. 10107100) for switches/button switches.

Technical data

  • Color
    Silver
  • Surface
    Velvet
  • Accurate color
    Aluminum
  • PKWIU
    27.33.11.0
  • Material
    Plastic
  • Family
    Q.1 Q.3
  • Exact material
    Duroplastic

Other technical data

  • Model
    One-part rocker
  • Utilization
    Switch/push button
  • Type of fastening
    Clamp mounting
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9006
  • With exchangeable lens/symbol
    Yes
  • Impact strength
    IK02
  • Scannable symbol/barrier free
    No
  • Suitable for touch sensor connector for bus system
    Yes
  • Monitoring window/light outlet
    Yes
  • Material quality
    Duroplast
  • Surface protection
    Lacquered
  • Colour
    Aluminium
  • With label area
    No
  • Suitable for degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 120 pcs. 3840 pcs.
Weight (kg) 0,020 0,312 2,976 115,223
Width (m) 0,058 0,072 0,300 0,800
Length (m) 0,023 0,280 0,225 1,050
Depth (m) 0,058 0,089 0,400 1,200
