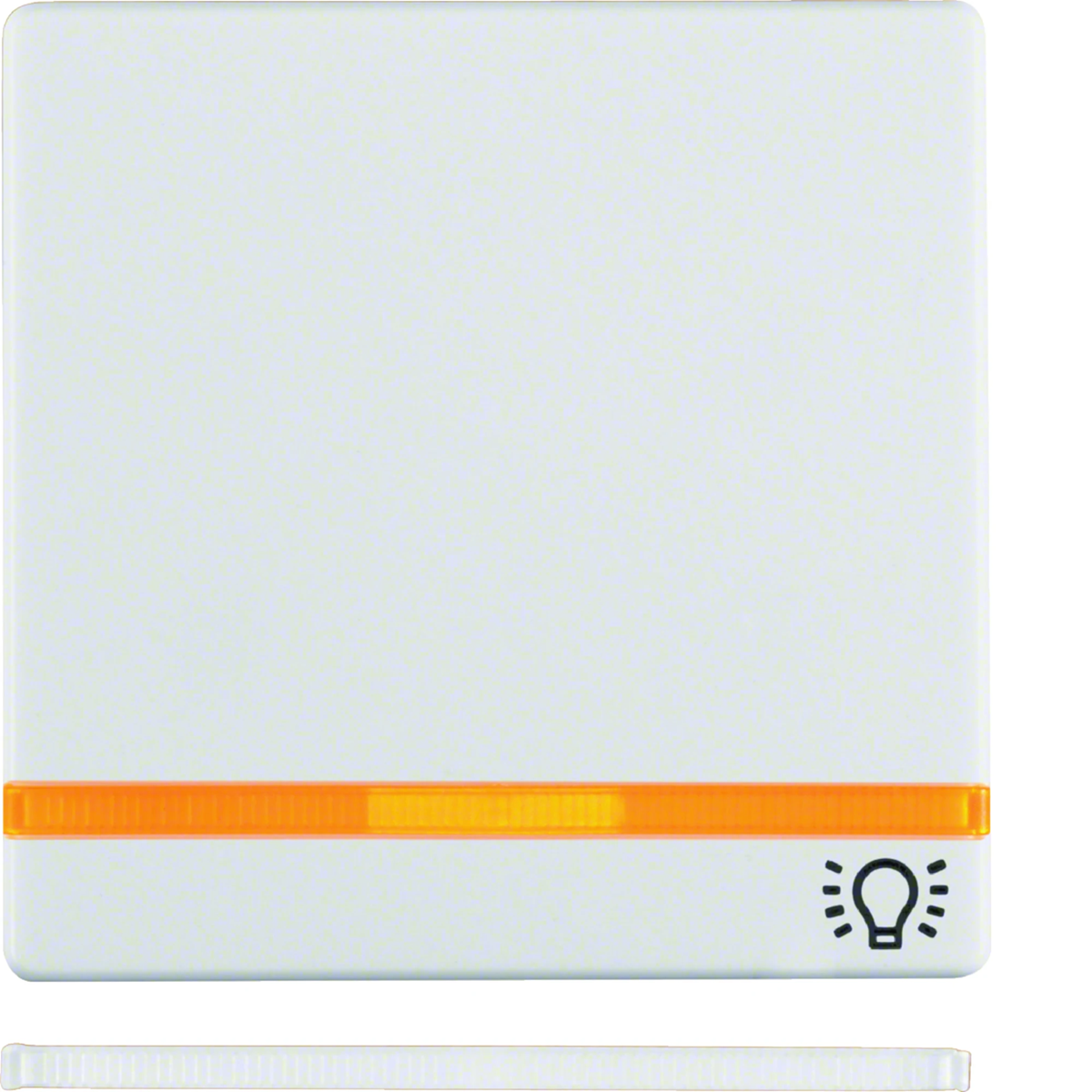

Q.1/Q.3 Rocker with 2 attached lenses and printed "light" snow white velvet 16216079

local index:
MAK123BERK
Catalog No:
16216079
EAN code:
4011334317500
Manufacturer: BERKER
Color: White
Material: Plastic
Surface: Velvet
Price:
6,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switch with two attached lenses and printed "light" symbol, from the Berker Q.1/Q.3 series.

  • for plasterboard walls,
  • for stair/cross switches,
  • for push-button switch,
  • for connection with backlight and control connection with backlight.

Application: Flush-mounted installation for wet rooms, lighting control.

Additional information: The degree of protection IP44 is only ensured in conjunction with the appropriate glow, incandescent or LED insert and the sealing kit (item no. 10107100) for switches/button switches.

Technical data

  • Color
    White
  • Surface
    Velvet
  • Exact material
    Duroplastic
  • Material
    Plastic
  • Family
    Q.1 Q.3
  • PKWIU
    27.33.11.0

Other technical data

  • Model
    One-part rocker
  • Scannable symbol/barrier free
    No
  • Suitable for touch sensor connector for bus system
    Yes
  • Monitoring window/light outlet
    Yes
  • Material quality
    Duroplast
  • Surface protection
    Untreated
  • Colour
    White
  • With label area
    No
  • Suitable for degree of protection (IP)
    IP44
  • Imprint/indication
    Symbol "light"
  • Utilization
    Switch/push button
  • Type of fastening
    Clamp mounting
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • With exchangeable lens/symbol
    Yes
  • Impact strength
    IK02

Manufacturer details

  • Manufacturer
    BERKER POLSKA SP. Z O.O.
  • Address
    62-035 UL. ŚREDZKA 19
  • Tax identification number
    7781027605

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 120 pcs. 3840 pcs.
Weight (kg) 0,019 0,302 2,856 111,383
Width (m) 0,058 0,072 0,300 0,800
Length (m) 0,023 0,280 0,225 1,050
Depth (m) 0,058 0,089 0,400 1,200
