Manufacturer: BERKER
Depth [mm]: 57.3
Number of keys: hotel card
Color: White
Price:
83,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

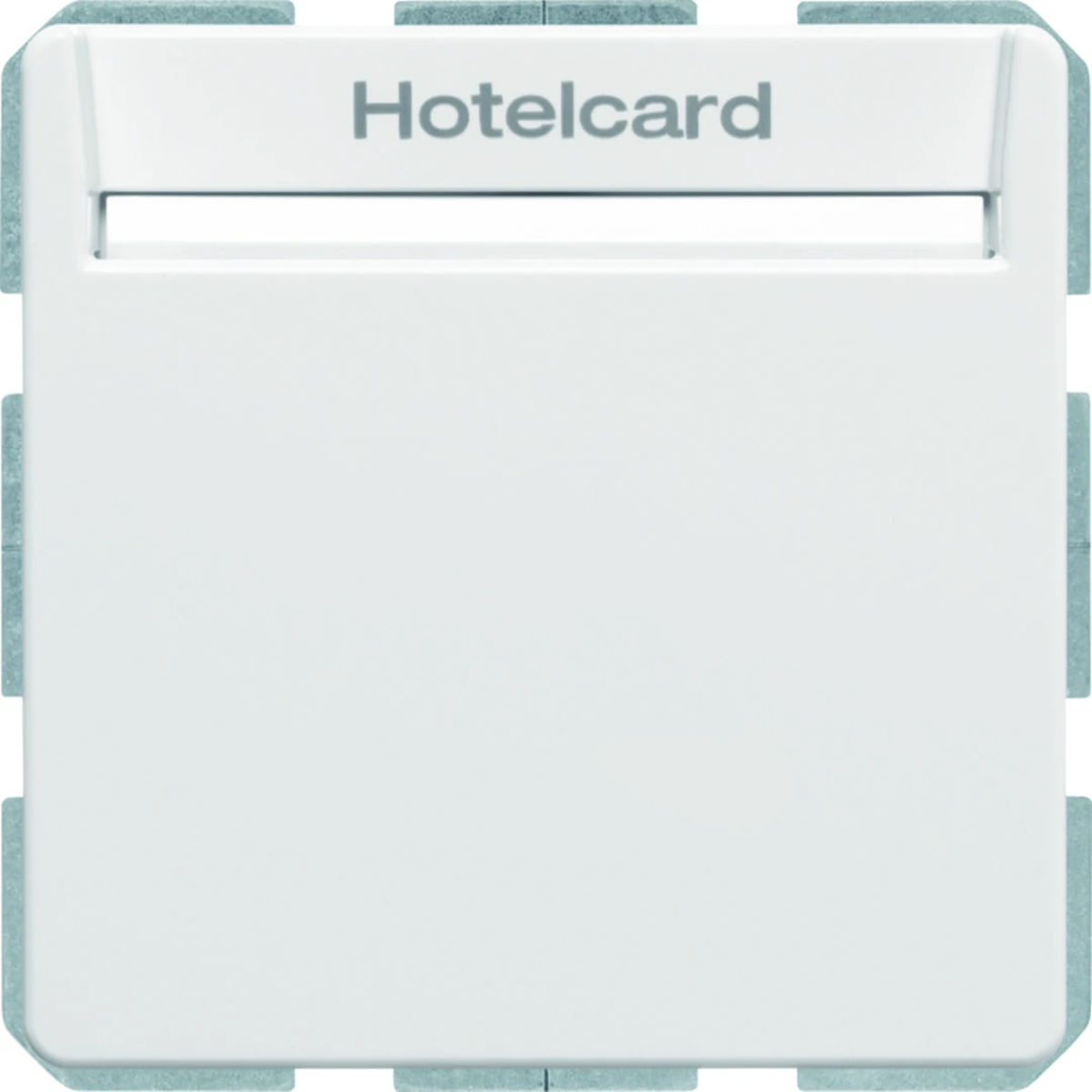

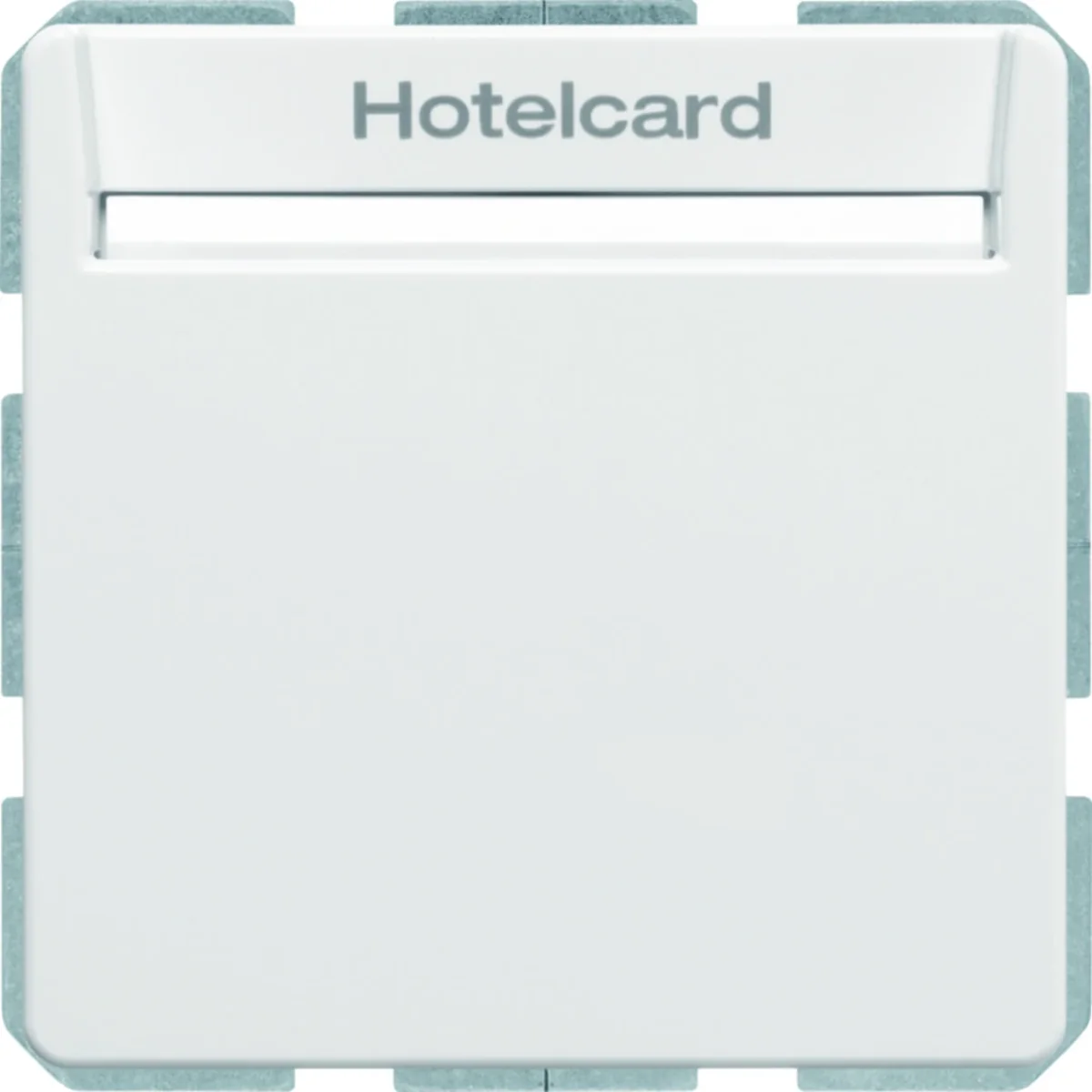

Relay switch for the hotel card from the Q.1/Q.3/Q.7 series, from Berker. The product part number is 16406099.



FEATURES

  • 1-pole.
  • < li>Inductive load at cos φ = 0.6: max. 6 A.
  • Power:
    • Conventional transformers: 1500 VA.
    • Electronic transformers: 1500 W.
    • Input power : < 0.2W.
  • Card width: max. 55 mm.
  • Card thickness: 0.8…1.2 mm.
  • Fluorescent bulb control:
    • Compact fluorescent lamps: 500 W.
    • Power of fluorescent lamps in a dual system: 1500 W.
  • Incandescent lamp control:
    • Incandescent lamps and 230V halogen lamps: 1500W.
  • Blue LED backlight when hotel card is not inserted.
  • Screw terminals (max.) : 2 x 2.5 mm².
  • Delay time adjustable in steps: 0, 15, 30, 60 s.
  • With potentiometer for stepwise adjustment of delay time
  • For connection with backlight.
  • With dry contact.

Technical data

  • Depth [mm]
    57.3
  • Color
    White
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Rated current [A]
    10
  • Family
    Q.1 Q.3 Q.7
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Snow white
  • Mounting depth [mm]
    32
  • For the frame system
    Yes
  • Backlight color
    Blue
  • Number of keys
    hotel card
  • Shape
    Square
  • Fixing
    Expanding claws
  • Shutdown delay [s]
    0 15 30 60
  • Type
    Hotel
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface finish
    velvet
  • Backlight
    Yes
  • Terminal type
    Threaded
  • Backlight type
    LED
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Method of operation
    Hotel card
  • Number of poles
    1
  • Rated current
    10 A
  • With signal lamp
    Yes
  • Mounting method
    Flush-mounted
  • Material
    Other
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Imprint
    Other
  • Device width
    71 mm
  • Device depth
    57.3 mm
  • Model
    Other
  • Number of rockers
    0
  • Nominal voltage
    230 V
  • With lighting
    Yes
  • Feedback-signal contact
    No
  • Type of fastening
    Mounting with claw
  • Material quality
    Other
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    35 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,130 0,150 5,845 207,030
Width (m) 0,071 0,090 0,300 0,800
Length (m) 0,080 0,075 0,225 1,050
Depth (m) 0,071 0,085 0,400 1,200
