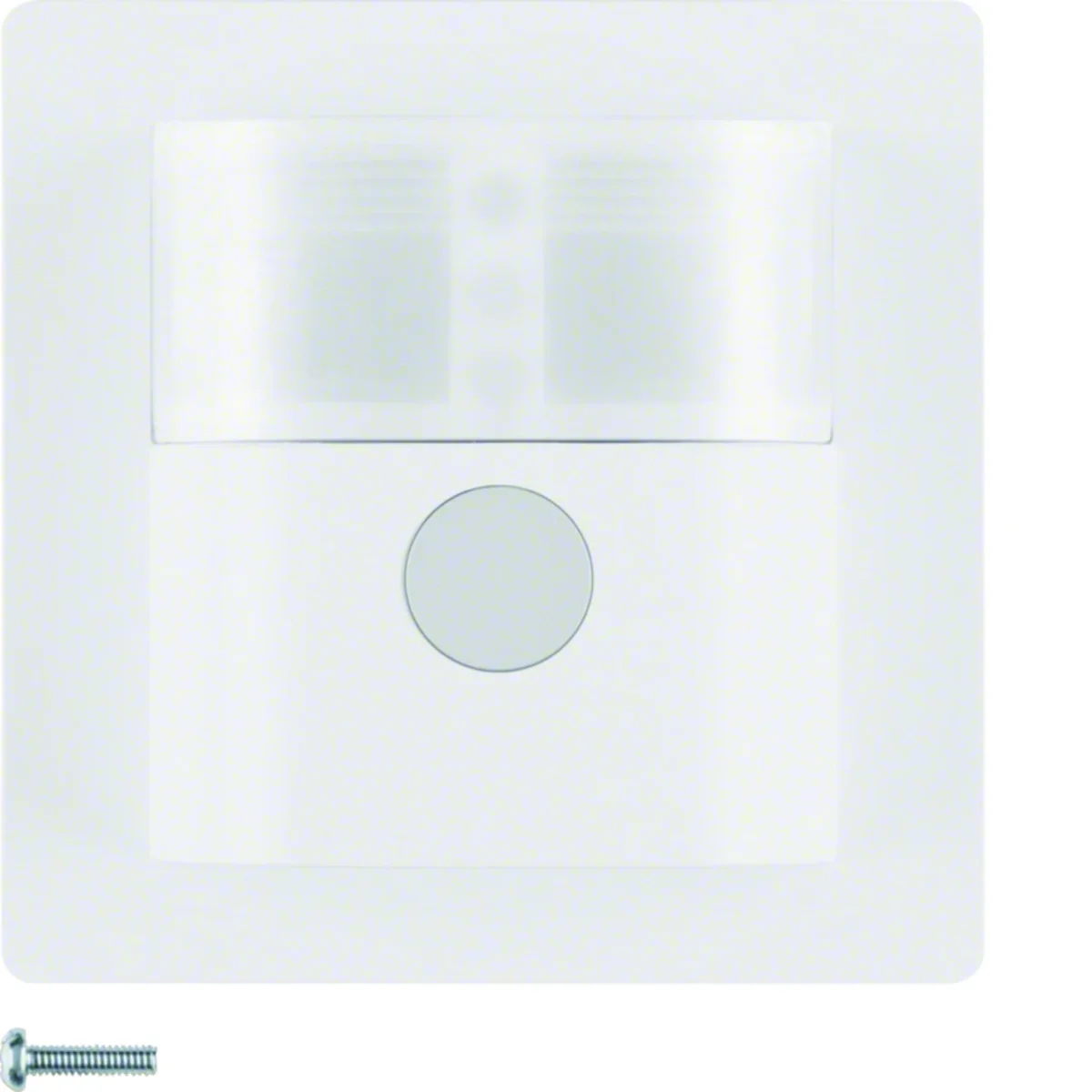

Q.1/Q.3 Motion sensor cap 2.2m white 85342129
local index:
MAP390BERK
Catalog No:
85342129
EAN code:
4011334374206
Price:
92,51 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Motion sensor cap from the Berker Q.1/Q.3 series.
Features:
- microprocessor control
- function of programming the lighting intensity level activated by means of a button
- with a button lock
- "party" function activated on 2 hours
- with presence simulation memory
Controls and indicators:
- with button on/off/auto
LED control:
- with red/green/orange operation and status LEDs
- Tip and mechanism compatibility LED indicator
Technical data
-
Detection angle [°]45-90
-
ShapeSquare
-
InstallationFlush-mounted
-
TypeFor the motion sensor
-
Level of securityIP20
-
Surface finishvelvet
-
Number of detection planes3
-
Relative humidity (no condensation) [%]0 - 65 (non-condensing)
-
Straight range [m]≈ 8
-
PKWIU27.40.30.0
-
ColorWhite
-
MaterialPlastic
-
Detection field8x12
-
FamilyQ.1 Q.3 Q.7
-
Operating temperature range [°C]from -5 to 45
-
Accurate colorSnow white
-
Operation brightness level [%]10 - 100
-
Lateral range [m]≈ 6
-
For modular equipmentNot applicable
Other technical data
-
ModelMovement sensor
-
Constant light controlNo
-
NetworkableYes
-
Creep-under protectionYes
-
Max. reach sideways6 m
-
Diameter reach on floor0 m
-
Response value luminosity adjustableYes
-
Dim function with dimmer basic elementYes
-
Staircase light controllerNo
-
Material qualityThermoplastic
-
Suitable for degree of protection (IP)IP20
-
Min. switch-on time180 s
-
Switch-off delay self-learningNo
-
ColourWhite
-
Mounting methodFlush-mounted
-
HVAC-controlYes
-
Suitable for wireless transmissionNo
-
Mounting height2.2 m
-
Max. reach frontally8 m
-
Response value sensitivity adjustableYes
-
Teach-function for response value luminosityYes
-
Animal zoneNo
-
MaterialPlastic
-
Halogen freeYes
-
Operation mode switchYes
-
Max. duty cycle3 min
-
Detection angle horizontal45 ... 90 °
-
RAL-number (similar)9010
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. | 1152 pcs. |
| Weight (kg) | 0,067 | 0,105 | 4,140 | 157,480 |
| Width (m) | 0,058 | 0,085 | 0,300 | 0,800 |
| Length (m) | 0,043 | 0,075 | 0,225 | 1,050 |
| Depth (m) | 0,058 | 0,090 | 0,400 | 1,200 |
