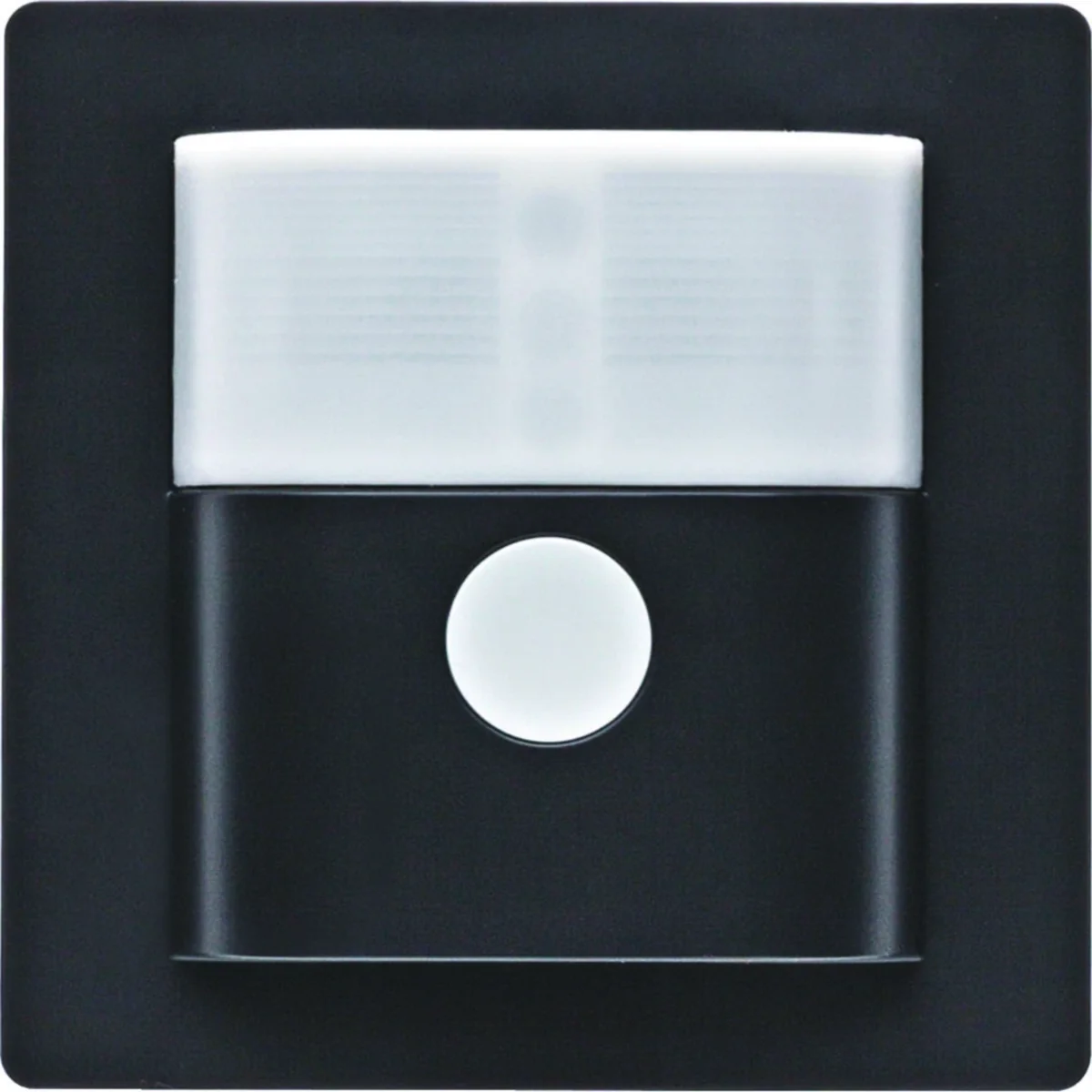

Q.1/Q.3 Motion sensor cap 2.2m anthracite 85342126

local index:
MAP389BERK
Catalog No:
85342126
EAN code:
4011334383062
Manufacturer: BERKER
Detection angle [°]: 45-90
Color: Graphite
Shape: Square
Price:
98,02 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Motion sensor cap from the Berker Q.1/Q.3 series.

Features:

  • microprocessor control
  • function of programming the lighting intensity level activated by means of a button
  • with a button lock
  • "party" function activated on 2 hours
  • with presence simulation memory

Controls and indicators:

  • with button on/off/auto

LED control:

  • with red/green/orange operation and status LEDs
  • Tip and mechanism compatibility LED indicator

Technical data

  • Detection angle [°]
    45-90
  • Shape
    Square
  • Installation
    Flush-mounted
  • Type
    For the motion sensor
  • Level of security
    IP20
  • Operating temperature range [°C]
    from -5 to 45
  • Accurate color
    Anthracite
  • Operation brightness level [%]
    10 - 100
  • Lateral range [m]
    ≈ 6
  • For modular equipment
    Not applicable
  • Color
    Graphite
  • Material
    Plastic
  • Detection field
    8x12
  • Family
    Q.1 Q.3 Q.7
  • Surface protection
    varnishing
  • Surface finish
    velvet
  • Number of detection planes
    3
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)
  • Straight range [m]
    ≈ 8
  • PKWIU
    27.40.30.0

Other technical data

  • Model
    Movement sensor
  • Constant light control
    No
  • Networkable
    Yes
  • Creep-under protection
    Yes
  • Max. reach sideways
    6 m
  • Diameter reach on floor
    0 m
  • Response value luminosity adjustable
    Yes
  • Dim function with dimmer basic element
    Yes
  • Staircase light controller
    No
  • Material quality
    Thermoplastic
  • Suitable for degree of protection (IP)
    IP20
  • Min. switch-on time
    180 s
  • Switch-off delay self-learning
    No
  • Colour
    Anthracite
  • Mounting method
    Flush-mounted
  • HVAC-control
    Yes
  • Suitable for wireless transmission
    No
  • Mounting height
    2.2 m
  • Max. reach frontally
    8 m
  • Response value sensitivity adjustable
    Yes
  • Teach-function for response value luminosity
    Yes
  • Animal zone
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Operation mode switch
    Yes
  • Max. duty cycle
    3 min
  • Detection angle horizontal
    45 ... 90 °
  • RAL-number (similar)
    7021

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,067 0,092 3,577 134,454
Width (m) 0,058 0,084 0,300 0,800
Length (m) 0,043 0,070 0,225 1,050
Depth (m) 0,058 0,085 0,400 1,200
