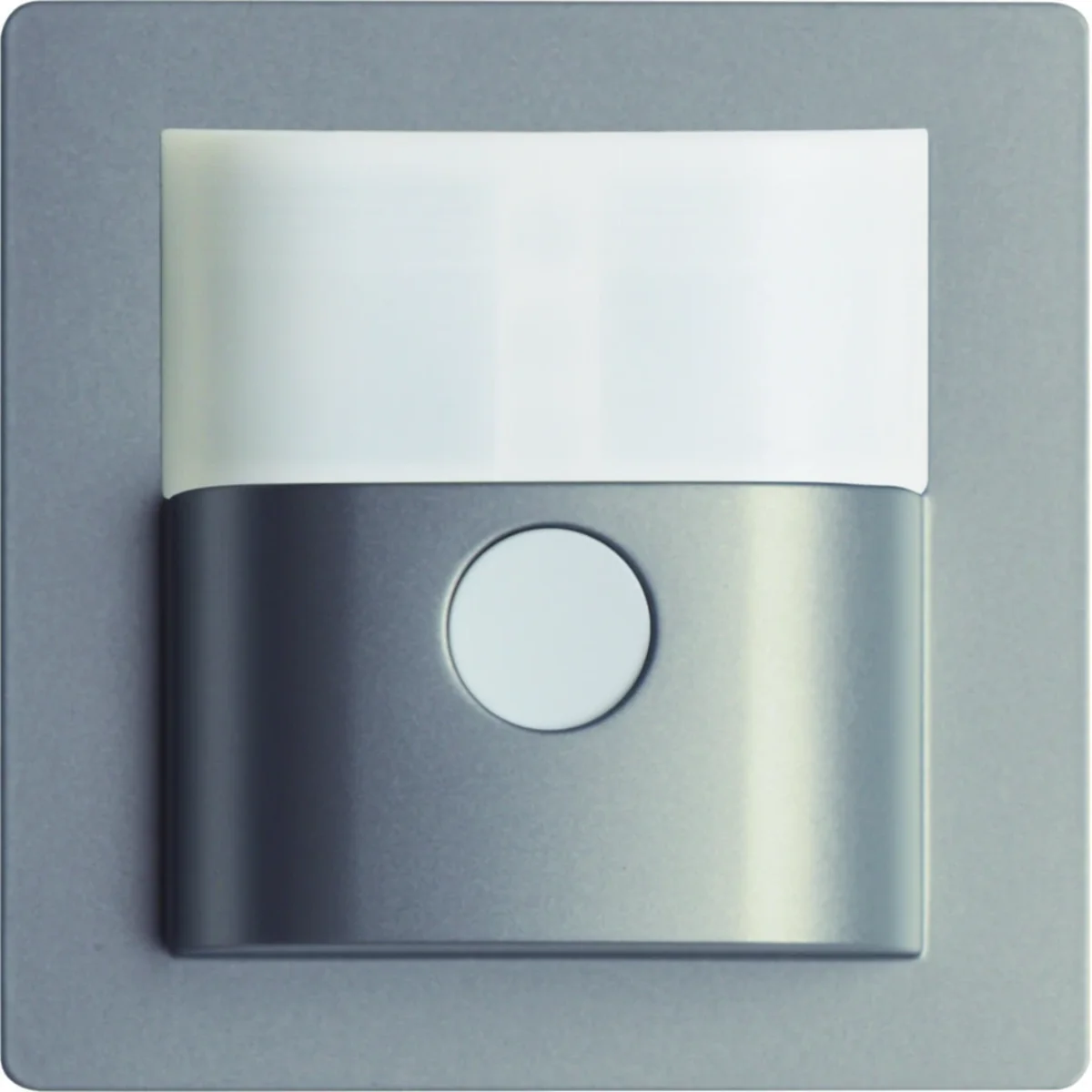

Name: Q.1/Q.3 Motion sensor attachment 2.2 m Berker.Net, alu velvet, lacquered
Brand: BERKER
SKU: MAP388BERK
Price: 97.98 PLN

IR attachment for motion sensor comfort from the Berker B.Kwadrat/B.3/B.7 series. To article numbers 8512 12 00, 8512 11 00, 8542 11 00, 8542 12 00, 8532 01 00, EE806.

Features:

microprocessor control operation
impulse operation with idle time (e.g. for stair lighting installations/with impulse switching)
the function of programming the lighting intensity level activation activated by pressing the button
z button lock
party function activated for 2 hours
with presence simulation memory function

Controls and indicators:

with on/off/automatic button

LED control:

with red/green/orange operation and status LEDs

socket and mechanism compatibility LED indicator

Detection angle [°]

45-90
Shape

Square
Detection field

8x12
Family

Q.1 Q.3 Q.7
Surface protection

varnishing
Surface finish

velvet
Number of detection planes

3
Relative humidity (no condensation) [%]

0 - 65 (non-condensing)
Straight range [m]

≈ 8
PKWIU

27.40.30.0

Color

Silver
Material

Plastic
Type

For the motion sensor
Level of security

IP20
Operating temperature range [°C]

from -5 to 45
Accurate color

Aluminum
Operation brightness level [%]

10 - 100
Lateral range [m]

≈ 6
For modular equipment

Not applicable

Other technical data

Model

Movement sensor
Constant light control

No
Networkable

Yes
Creep-under protection

Yes
Max. reach sideways

6 m
Diameter reach on floor

0 m
Response value luminosity adjustable

Yes
Dim function with dimmer basic element

Yes
Staircase light controller

No
Material quality

Thermoplastic
Suitable for degree of protection (IP)

IP20
Min. switch-on time

180 s
Switch-off delay self-learning

No
Colour

Aluminium

Mounting method

Flush-mounted
HVAC-control

Yes
Suitable for wireless transmission

No
Mounting height

2.2 m
Max. reach frontally

8 m
Response value sensitivity adjustable

Yes
Teach-function for response value luminosity

Yes
Animal zone

No
Material

Plastic
Halogen free

No
Operation mode switch

Yes
Max. duty cycle

3 min
Detection angle horizontal

45 ... 90 °
RAL-number (similar)

9006

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	36 pcs.	1152 pcs.
Weight (kg)	0,067	0,092	3,577	134,454
Width (m)	0,058	0,084	0,300	0,800
Length (m)	0,043	0,070	0,225	1,050
Depth (m)	0,058	0,085	0,400	1,200
