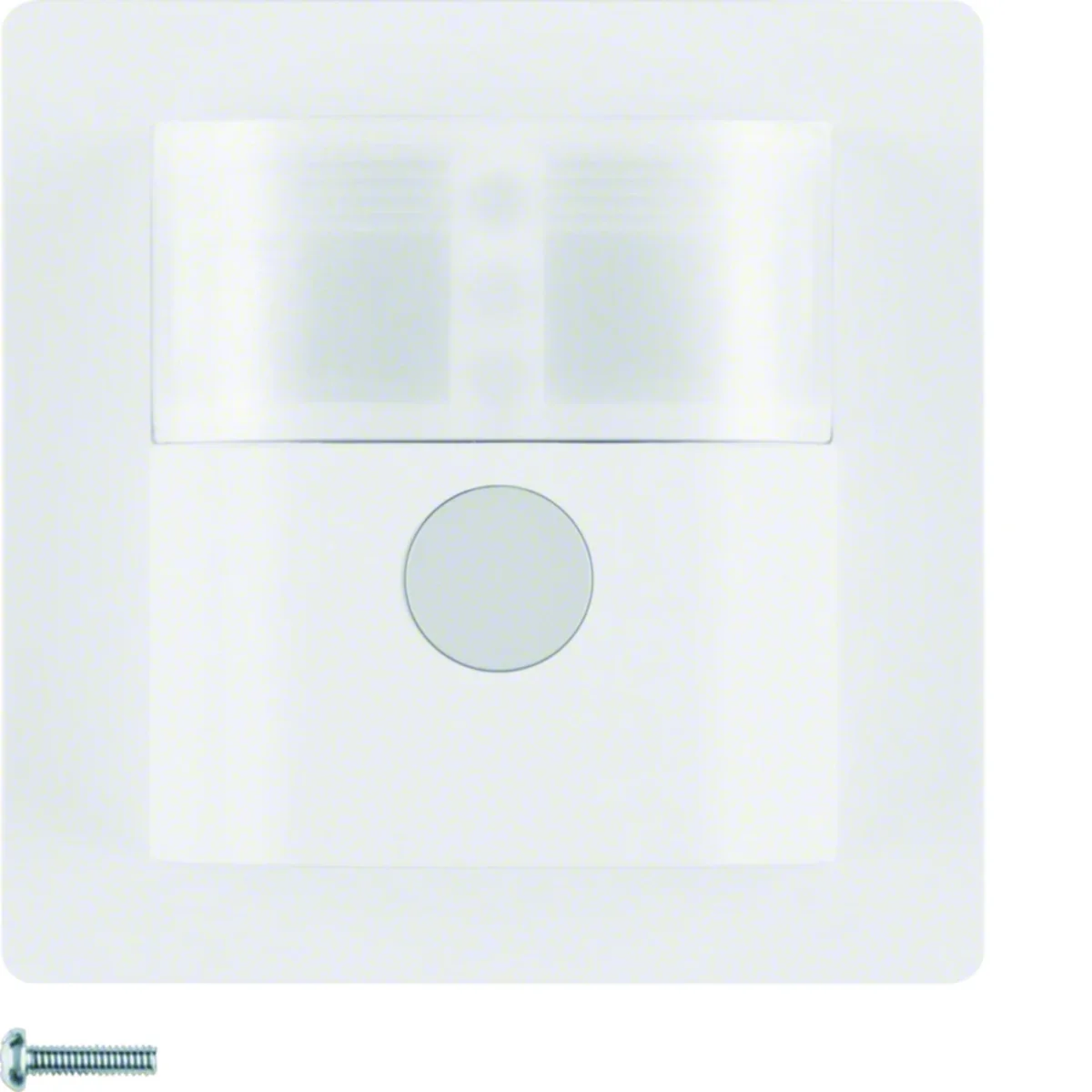

Q.1/Q.3 IR attachment of the comfort motion sensor 2.2m white 85342229

local index:
MAP404BERK
Catalog No:
85342229
EAN code:
4011334374503
Manufacturer: BERKER
Detection angle [°]: 45-90
Color: White
Shape: Square
Price:
141,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

IR attachment of the motion sensor comfort from the Berker Q.1/Q.3 series. Nominal mounting height is 2.2 m.

< p>Functions:

  • microprocessor control
  • pulse operation with idle time (e.g. for stair lighting installations/with pulse switching)
  • the function of programming the activation level of lighting intensity activated by means of a button
  • with a button lock
  • the “party” activated for 2 hours
  • with memory function to simulate presence

Controls and indicators:

  • with on/off/automatic button

LED control:

  • with red/green operation and status LEDs /orange
  • cap and mechanism compatibility LED indicator

Technical data

  • Detection angle [°]
    45-90
  • Shape
    Square
  • Installation
    Flush-mounted
  • Type
    For the motion sensor
  • Level of security
    IP20
  • Surface finish
    velvet
  • Number of detection planes
    3
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)
  • Straight range [m]
    ≈ 8
  • For modular equipment
    Not applicable
  • Color
    White
  • Material
    Plastic
  • Detection field
    8x12
  • Family
    Q.1 Q.3 Q.7
  • Operating temperature range [°C]
    from -5 to 45
  • Accurate color
    Snow white
  • Operation brightness level [%]
    10 - 100
  • Lateral range [m]
    ≈ 6
  • Delay time, adjustable
    ≈ 10 s - 30 min
  • PKWIU
    27.40.30.0

Other technical data

  • Model
    Movement sensor
  • HVAC-control
    Yes
  • Creep-under protection
    Yes
  • Optimum mounting height
    2.2 m
  • Bridging switch
    Yes
  • Suitable for wireless transmission
    Yes
  • Response value sensitivity adjustable
    Yes
  • Teach-function for response value luminosity
    Yes
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • RAL-number (similar)
    9010
  • Degree of protection (IP)
    IP20
  • Max. duty cycle
    30 min
  • Width
    58.4 mm
  • Depth
    43 mm
  • Constant light control
    No
  • Animal zone
    No
  • Networkable
    Yes
  • Staircase light controller
    Yes
  • Diameter reach on floor
    0 m
  • With remote control
    No
  • Response value luminosity adjustable
    Yes
  • Dim function with dimmer basic element
    Yes
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • Colour
    White
  • Transparent
    No
  • Min. switch-on time
    10 s
  • Temperature
    -5 ... 45 °C
  • Height
    58.4 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,069 0,094 3,649 136,758
Width (m) 0,058 0,084 0,300 0,800
Length (m) 0,043 0,070 0,225 1,050
Depth (m) 0,058 0,085 0,400 1,200
