Q.1/Q.3 IR attachment of the comfort motion sensor 1.1m white 85341229
local index:
MAP377BERK
Catalog No:
85341229
EAN code:
4011334373919
Price:
141,68 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

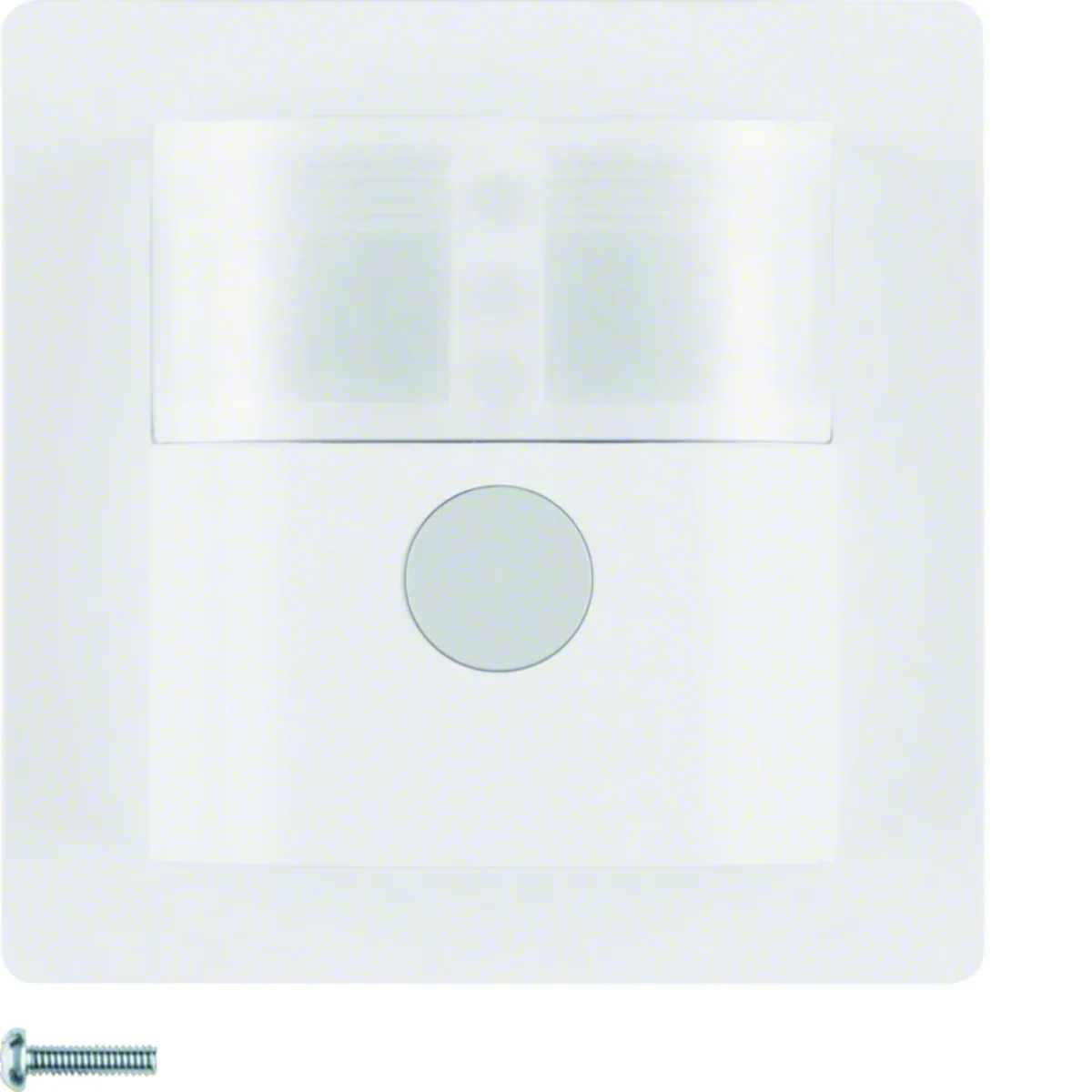

IR attachment of the motion sensor comfort series Berker Q.1/Q.3.
Features:< /p>
- microprocessor control
- impulse operation with idle time (e.g. for stair lighting installations/with impulse switching)
- the function of programming the lighting intensity level is activated by push button
- with button lock
- "party" function activated for 2 hours
- with memory function to simulate presence
- with on/off/auto button
LED control :
- with red/green/orange operation and status LEDs
- socket and mechanism compatibility LED indicator
Technical data
-
Detection angle [°]45-90
-
ShapeSquare
-
InstallationFlush-mounted
-
TypeFor the motion sensor
-
Level of securityIP20
-
Surface finishvelvet
-
Number of detection planes3
-
Relative humidity (no condensation) [%]0 - 65 (non-condensing)
-
Straight range [m]≈ 12
-
For modular equipmentNot applicable
-
ColorWhite
-
MaterialPlastic
-
Detection field12x16
-
FamilyQ.1 Q.3 Q.7
-
Operating temperature range [°C]from -5 to 45
-
Accurate colorSnow white
-
Operation brightness level [%]10 - 100
-
Lateral range [m]≈ 8
-
Delay time, adjustable≈ 10 s - 30 min
-
PKWIU27.40.30.0
Other technical data
-
ModelMovement sensor
-
HVAC-controlYes
-
Creep-under protectionNo
-
Optimum mounting height1.1 m
-
Bridging switchYes
-
Suitable for wireless transmissionYes
-
Response value sensitivity adjustableYes
-
Teach-function for response value luminosityYes
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
RAL-number (similar)9010
-
Degree of protection (IP)IP20
-
Max. duty cycle30 min
-
Width58.4 mm
-
Depth43 mm
-
Constant light controlNo
-
Animal zoneNo
-
NetworkableYes
-
Staircase light controllerYes
-
Diameter reach on floor0 m
-
With remote controlNo
-
Response value luminosity adjustableYes
-
Dim function with dimmer basic elementYes
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
ColourWhite
-
TransparentNo
-
Min. switch-on time10 s
-
Temperature-5 ... 45 °C
-
Height58.4 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. | 1152 pcs. |
| Weight (kg) | 0,037 | 0,067 | 2,412 | 102,184 |
| Width (m) | 0,058 | 0,084 | 0,300 | 0,800 |
| Length (m) | 0,043 | 0,070 | 0,225 | 1,050 |
| Depth (m) | 0,058 | 0,085 | 0,400 | 1,200 |
