Q.1/Q.3 Double central element with dust-protecting slides with description field snow-white 11816089
local index:
MAP095BERK
Catalog No:
11816089
EAN code:
4011334313977
Price:
9,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

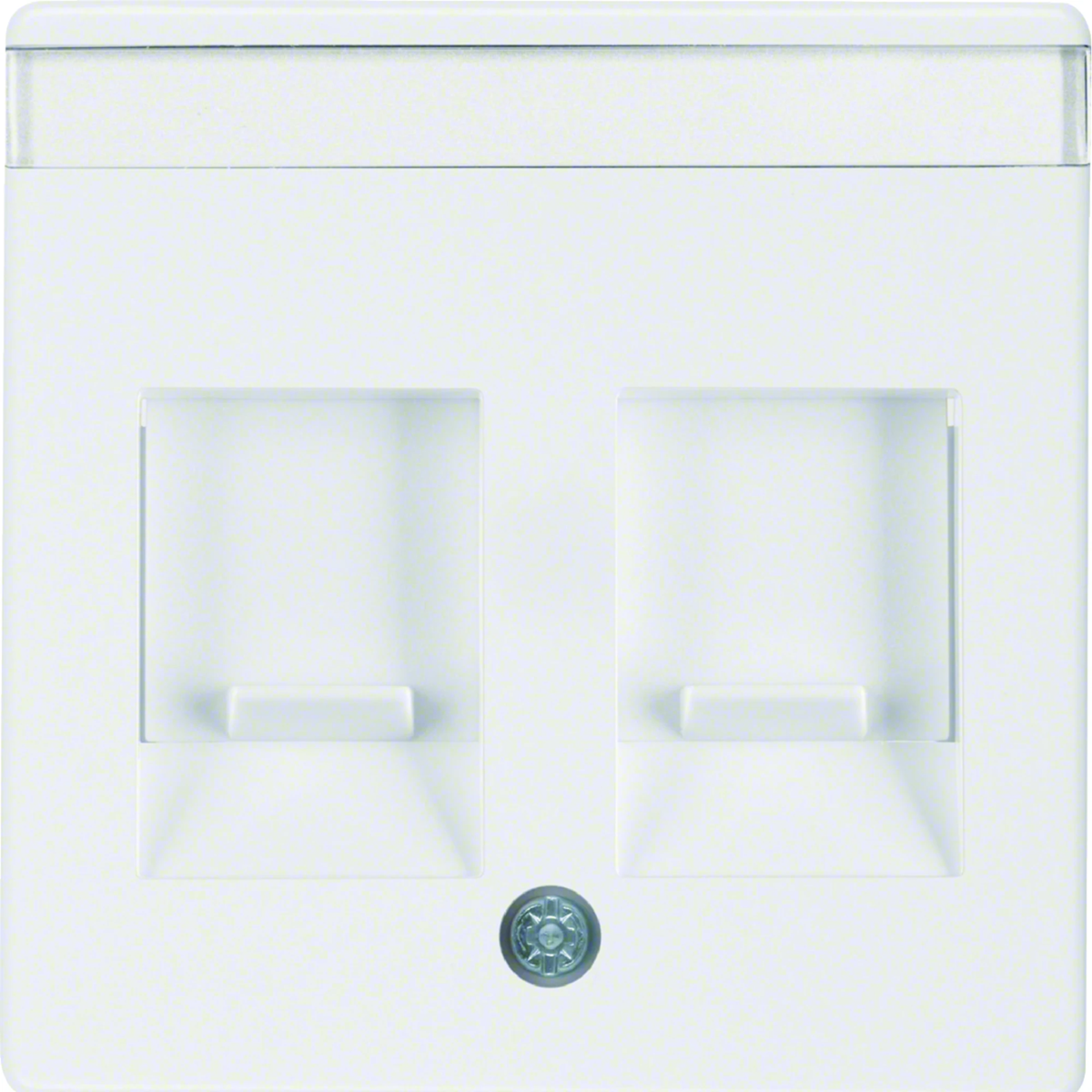

Double central element with dust-protecting slides, with description field, Berker seriesQ.1/Q.3:
- for 2-gang support plates with colored fixing elements, item no. 4541 .. and 454202
Technical data
-
ColorWhite
-
MaterialPlastic
-
TypeTo the internet socket To the telephone socket
-
Surface finishvelvet
-
For modular equipmentNot applicable
-
ShapeSquare
-
Descriptive fieldYes
-
FamilyQ.1 Q.3 Q.7
-
Accurate colorSnow white
-
PKWIU27.12.40.0
Other technical data
-
Assembly arrangementCentral cover plate
-
Support ringNo
-
With hinged lidNo
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourWhite
-
TransparentNo
-
Number of modules (module system)2
-
Suitable for number of connectors2
-
Luster terminalNo
-
Device width59 mm
-
Device depth14 mm
-
UtilizationModular Jack
-
With dust coverYes
-
Imprintable labelWith indication plate
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)9010
-
Type of fasteningMounting with screw
-
With buses/couplingsNo
-
With strain reliefNo
-
Suitable for degree of protection (IP)IP20
-
Device height59 mm
-
Min. depth of built-in installation box0 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 300 pcs. | 9600 pcs. |
| Weight (kg) | 0,012 | 0,150 | 4,860 | 178,520 |
| Width (m) | 0,059 | 0,085 | 0,300 | 0,800 |
| Length (m) | 0,014 | 0,070 | 0,225 | 1,050 |
| Depth (m) | 0,059 | 0,130 | 0,400 | 1,200 |
