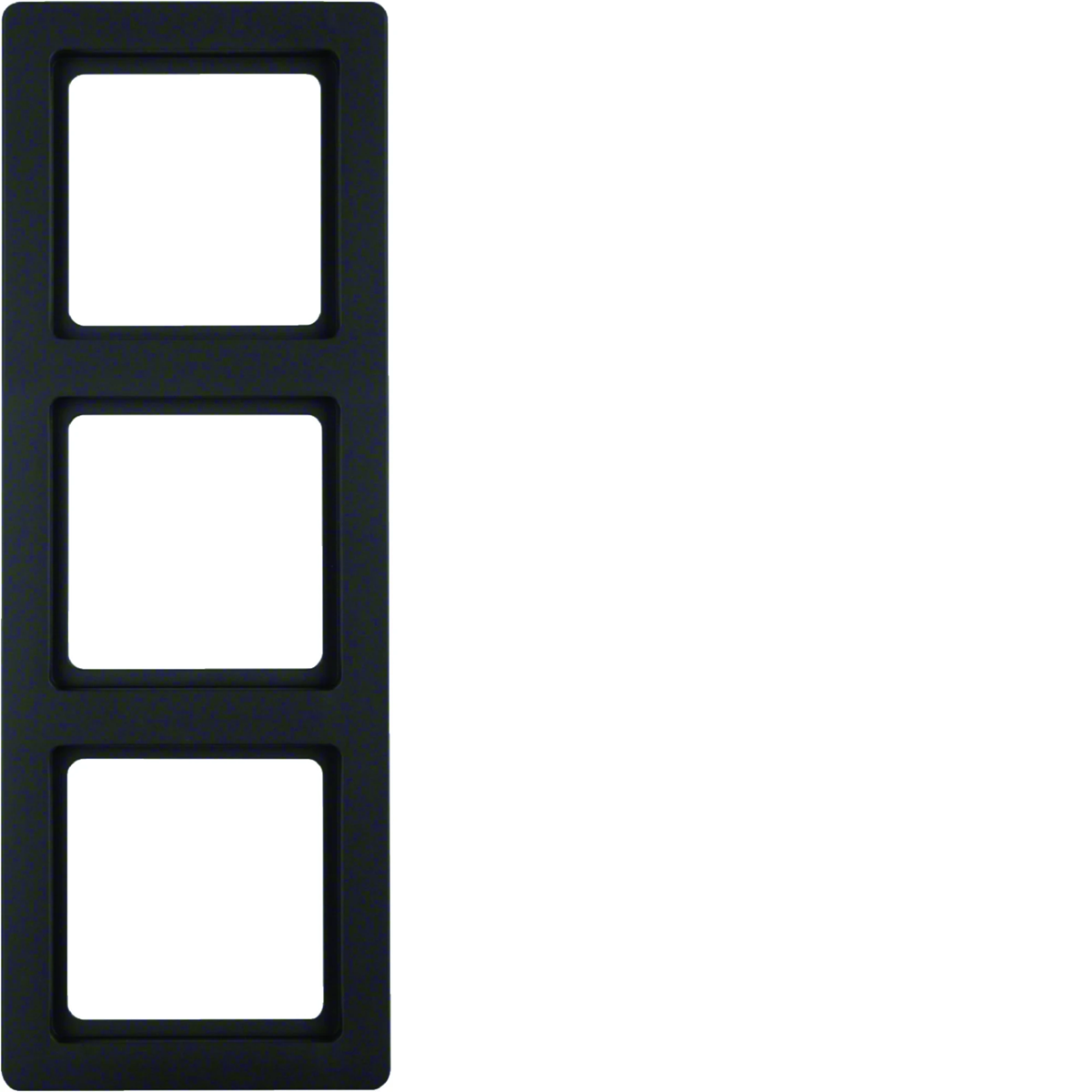

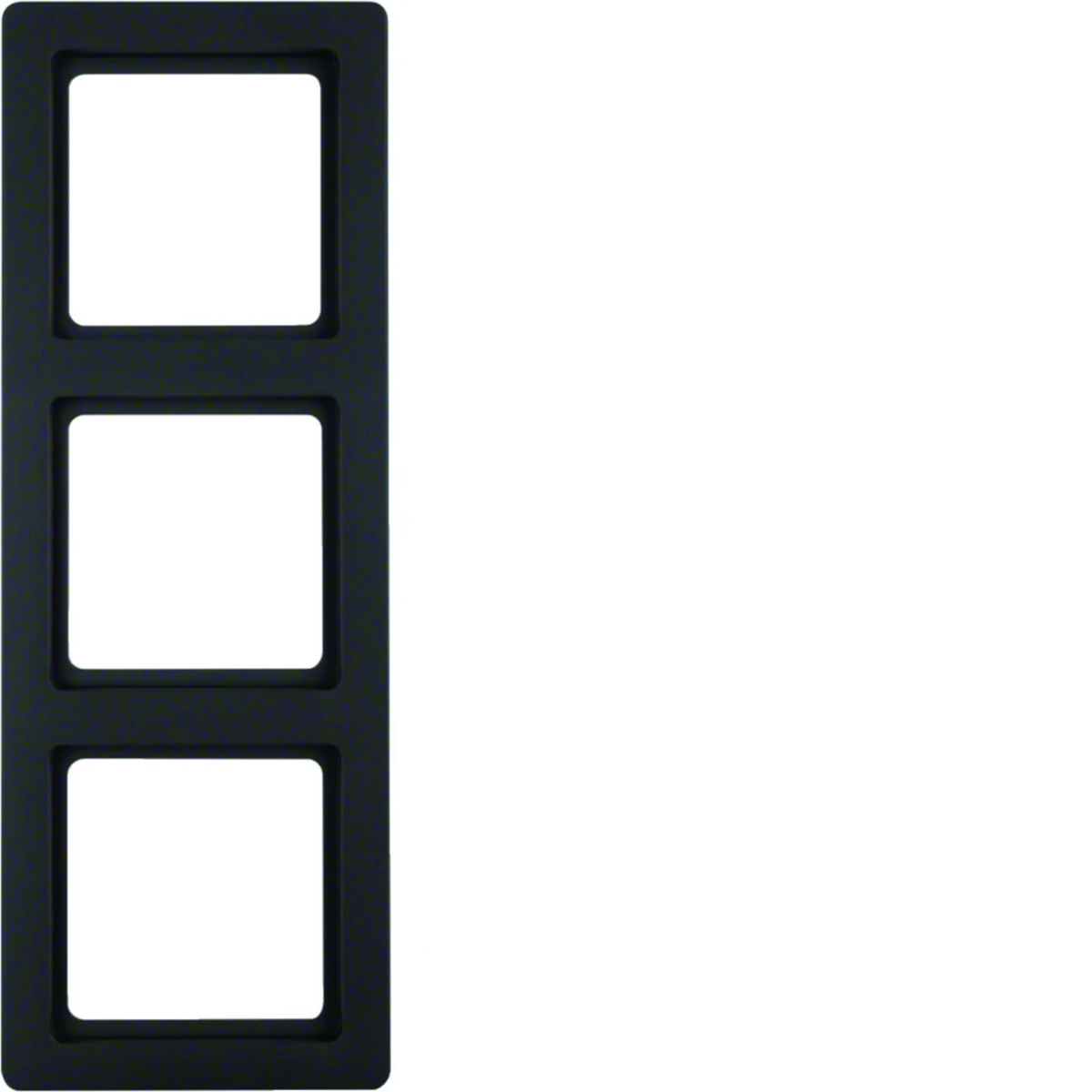

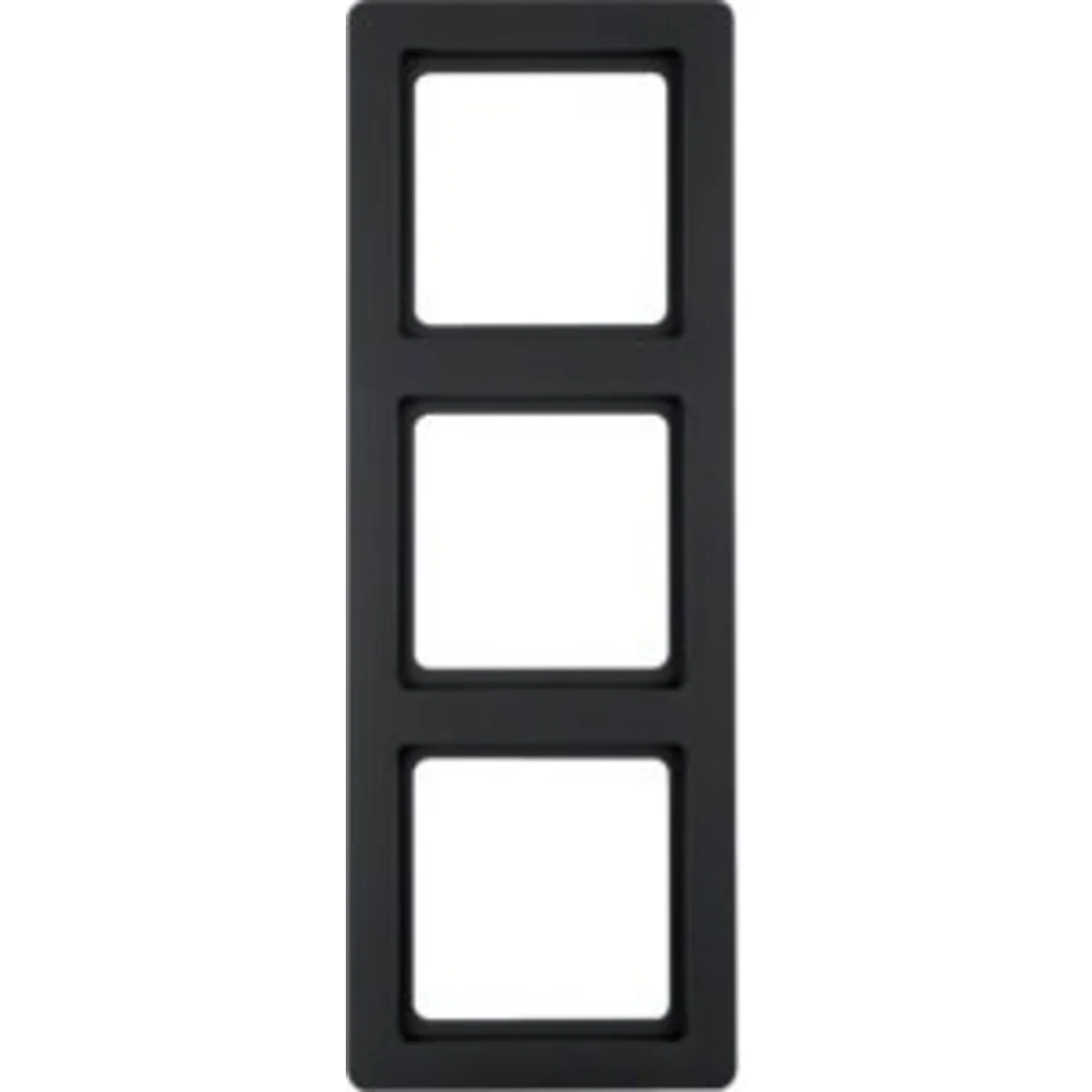

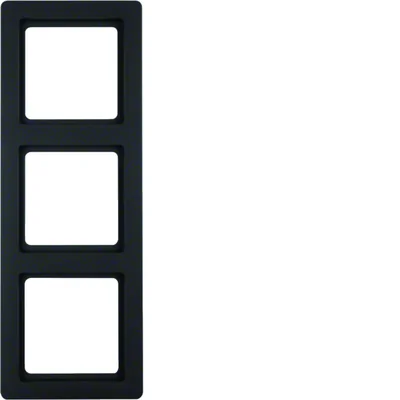

Q.1 Triple anthracite, velvet frame 10136086

local index:
MAR202BERK
Catalog No:
10136086
EAN code:
4011334379232
Manufacturer: BERKER
Depth [mm]: 9.9
Number of modules: 3
Color: Graphite
Price:
12,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

3-fold frame from the Q.1  series from the manufacturer Berker. The product part number is 10136086.

  • For vertical and horizontal mounting.
  • IP44 protection when  gasket kit order no. < strong>1010 7...



SERIES DESCRIPTION

Berker Q.1 Series

Technical data

  • Depth [mm]
    9.9
  • Color
    Graphite
  • Material
    Plastic
  • Family
    Q.1
  • Width [mm]
    222.5
  • Surface protection
    varnishing
  • Accurate color
    Anthracite
  • For modular equipment
    Not applicable
  • The shape of the matching accessory
    Square, Rectangular
  • Number of modules
    3
  • Shape
    Rectangular
  • Type
    Standard
  • Level of security
    IP20
  • Height [mm]
    80.5
  • Surface finish
    velvet
  • Mounting direction
    Universal
  • Exact material
    Duroplastic
  • PKWIU
    27.12.40.0

Other technical data

  • Number of units
    3
  • Number of units horizontal
    3
  • Number of modules horizontal (module system)
    0
  • Liczba łączników
    3
  • Suitable for subfloor installation duct box
    No
  • Suitable for built-in installation
    Yes
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    7021
  • With hinged lid
    No
  • Impact strength
    IK02
  • Width
    222.5 mm
  • Depth
    9.9 mm
  • Built-in height
    59.3 mm
  • Mounting direction
    Horizontal and vertical
  • Number of units vertical
    3
  • Number of modules vertical (module system)
    0
  • With mounting grid
    No
  • Suitable for wall duct
    Yes
  • Label space/information surface
    No
  • Material quality
    Duroplast
  • Surface protection
    Lacquered
  • Colour
    Anthracite
  • Transparent
    No
  • Degree of protection (IP)
    IP20
  • Type of fastening
    Clamp mounting
  • Height
    80.5 mm
  • Built-in width
    59.3 mm
  • Diameter bore hole (opening)
    0 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 2 pcs. 72 pcs. 2304 pcs.
Weight (kg) 0,056 0,137 5,275 188,811
Width (m) 0,080 0,095 0,300 0,800
Length (m) 0,010 0,025 0,225 1,050
Depth (m) 0,222 0,232 0,400 1,200
