Q.1 Socket with grounding and control LED with increased contact protection orange velvet 6765096014

Name: Q.1 Socket with grounding and control LED with increased contact protection orange velvet
Brand: BERKER
SKU: MEE145BERK
Price: 91.09 PLN

local index:

MEE145BERK

Catalog No:

6765096014

EAN code:

4011334362753

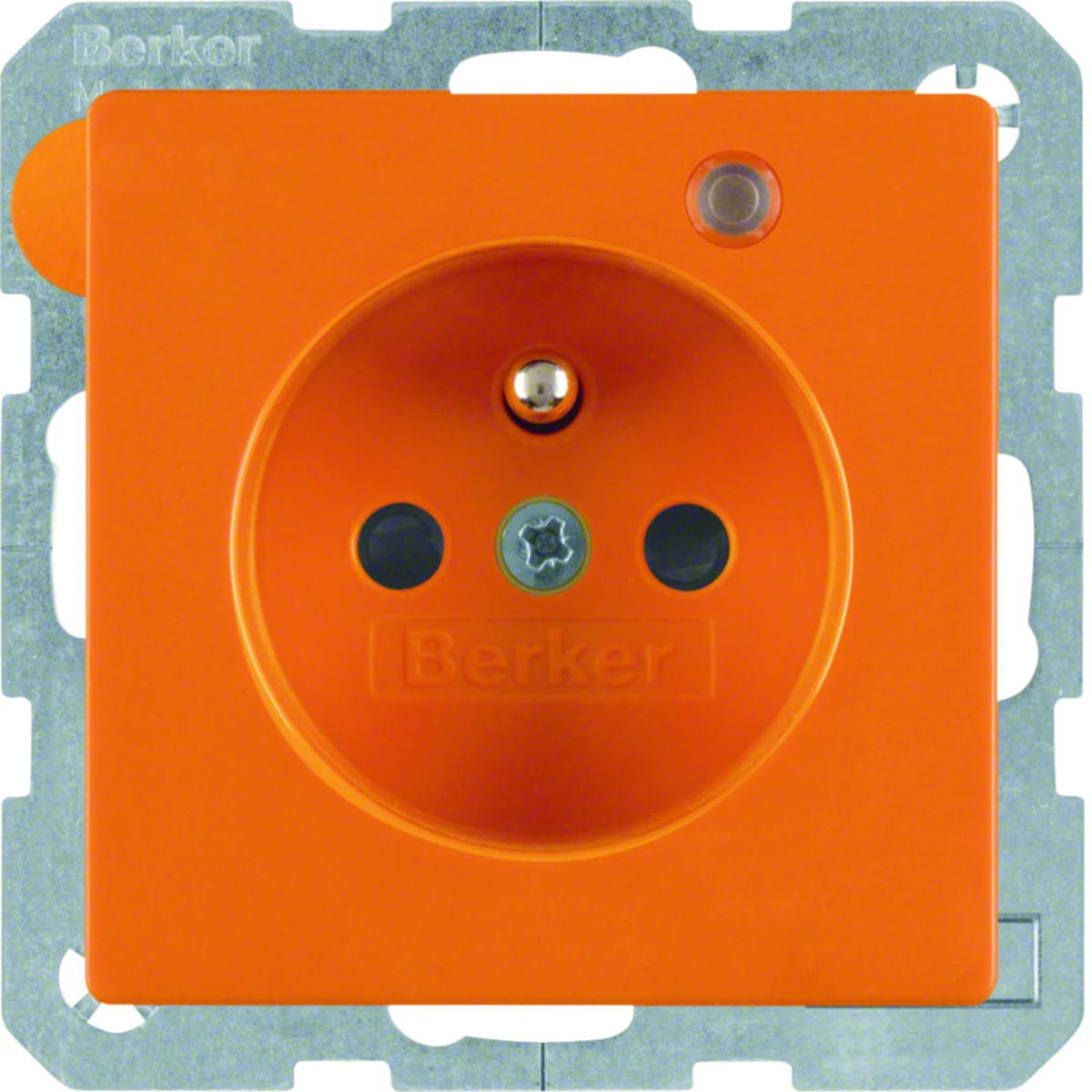

Q.1 Socket with grounding and control LED with increased contact protection orange velvet

Click on the photo to enlarge

Manufacturer: BERKER

Number of sockets: 1

Color: Orange

Shape: Square

See full description

Price:

91,09 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Socket with grounding and LED indicator, with increased contact protection, Berker Q.1/Q.3 series.

Construction:

2-pole.

Installation / Mounting:

with clamps.

Connection:

with screw-lift terminals.

Technical data

Number of sockets

1
Shape

Square
Fixing

Expanding claws
Rated voltage [V]

230
Type

Electric
Level of security

IP20
Ground

Hurt
Backlight

Yes
Terminal type

Threaded
Shutters of current paths

Yes
For the frame system

Yes
PKWIU

27.33.13.0

Color

Orange
Material

Plastic
Installation

Flush-mounted
Rated current [A]

16
Family

Q.1 Q.3 Q.7
Type

Flush-mounted
Surface finish

velvet
Mounting depth [mm]

32
Standard

European
On the DATA key

NO
Exact material

Duroplastic

Other technical data

Model

Protective contact CEE 7/3 / CEE 7/4 (type F)
Okrągły styk ochronny

Yes
Number of active contacts (flat)

0
With built-in USB power supply

No
Number of socket outlets switchable

0
Connection type

Screwed terminal
With enhanced contact protection

Yes
Colour

Orange
Transparent

No
Eject-mechanism

No
With orientation lighting

No
Fault current protection

No
Special power supply

Other
Type of fastening

Mounting with claw and screw
Halogen free

Yes
Surface finishing

Matt
With on/off switch

No
Rotated central insert

No
Nominal voltage

250 V
Suitable for degree of protection (IP)

IP20
Device height

71 mm

Protective contact

Yes
Number of active contacts (round)

2
With signal lamp

No
Number of units

1
Number of phases

1
With hinged lid

No
Label space/information surface

No
RAL-number (similar)

2003
Lockable

No
With function lighting

Yes
Over voltage protection

No
With miniature fuse

No
Mounting method

Flush-mounted
Material

Plastic
Surface protection

Untreated
Anti-bacterial treatment

No
With loop through function

No
Nominal current

16 A
Frequency

50 ... 60 Hz
Device width

71 mm
Device depth

42 mm

Manufacturer details

Manufacturer

Berker GmbH & Co. KG.
Address

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Pakiet	Paleta
Quantity	10 pcs.	40 pcs.	1280 pcs.
Weight (kg)	0,930	3,720	119,040
Width (m)	0,160	0,300	0,800
Length (m)	0,060	0,220	1,050
Depth (m)	0,380	0,400	1,200

Files to download

RoHS-declaration-6765096014.pdf

6765096014.pdf
